Why Choose the Ilme PE1644PP 16 Amp 110 Volt 4 Pole IP44 Wall-Mounted Socket?

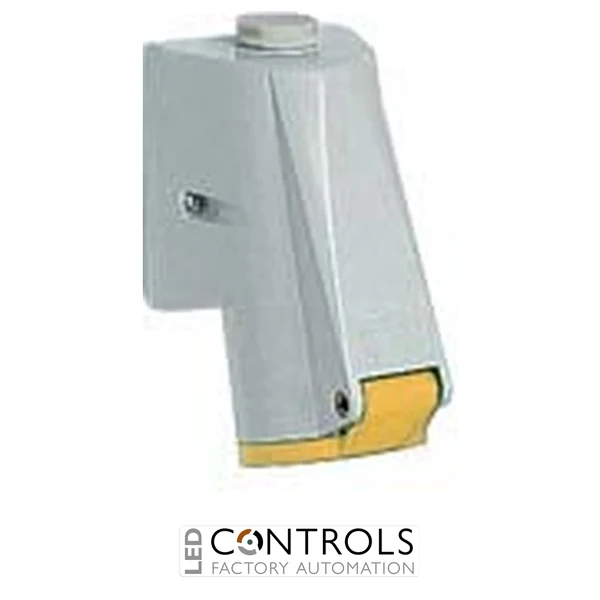

The Ilme PE1644PP is a robust 16 A industrial wall-mounted socket outlet designed for reliable low-voltage electrical connections in industrial machinery, workshops, power distribution and automation installations. Part of the Ilme PLUSO series, this socket features a 3P+E four-pole configuration and is designed for 100–130 V AC supplies at 50/60 Hz, making it suitable for nominal 110 V industrial applications.
The PE1644PP features a body, insert and spring-loaded lid manufactured from self-extinguishing thermoplastic insulating material. Its IP44 degree of protection provides splashproof protection when correctly installed and connected, while the spring lid helps protect the socket contacts when disconnected. Screw terminals with retained screws provide secure and practical conductor termination.
With a rated current of 16 A, a 100–130 V AC voltage range and a 3P+E configuration, the PE1644PP provides a dependable fixed connection point for compatible industrial equipment. Its 4 h earth-contact position and yellow voltage identification help distinguish it from connectors intended for other voltage ranges, while the wall-mounted enclosure enables straightforward installation on machinery, walls and industrial structures.
Key Advantages
- Robust 16 A industrial wall-mounted socket outlet.
- 100–130 V AC rating suitable for nominal 110 V industrial supplies.
- Four-pole 3P+E configuration for compatible three-phase low-voltage systems.
- IP44 splashproof protection for demanding industrial installations.
- 4 h earth-contact position helps prevent connection with incompatible industrial plugs.
- Yellow identification provides clear recognition of the voltage range.
- Spring-loaded protective lid helps shield the socket contacts when disconnected.
- Screw-terminal connections provide secure and maintainable conductor termination.
Key Features
- Ilme PLUSO series industrial socket outlet.
- 16 A rated current.
- 100–130 V AC rated voltage range.
- 50 / 60 Hz operating frequency.
- Four poles, 3P+E.
- 4 h earth-contact position.
- IP44 degree of protection.
- Yellow voltage identification.
- Fixed wall-mounted construction.
- Screw-terminal conductor connections.
- Retained terminal screws simplify installation and servicing.
- Spring-loaded protective lid.
- Threaded cable-entry grommet replaceable with a suitable cable gland.
- Self-extinguishing thermoplastic insulating construction.
- Designed in accordance with EN 60309-1 and EN 60309-2 industrial plug and socket standards.
Reliable 110 Volt Industrial Connectivity
Industrial socket outlets such as the Ilme PE1644PP provide a secure fixed connection point for compatible industrial plugs and electrical equipment. Its 100–130 V AC operating range makes it suitable for nominal 110 V systems, while the standardised yellow identification and 4 h earth-contact position help distinguish the supply and reduce the possibility of connection to incompatible equipment.
The PLUSO series is designed for professional electrical installations where dependable connections, mechanical durability and straightforward maintenance are important. The PE1644PP combines a rugged thermoplastic enclosure, screw-terminal connections and splashproof IP44 construction, making it a practical choice for fixed industrial power outlets in machinery, workshops and production environments.
Typical Applications
- Industrial machinery and production equipment.
- 110 V industrial power distribution systems.
- Factory automation installations.
- Workshop and maintenance power supplies.
- OEM machinery and production lines.
- Fixed industrial electrical installations.
