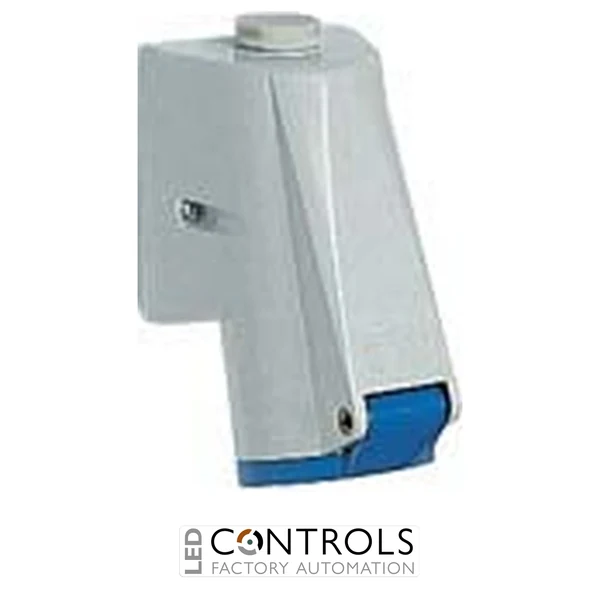

Why Choose the Ilme PE1663PP Wall-Mounted Socket?
The Ilme PE1663PP is a professional wall-mounted industrial socket outlet from the ILME PLUSO series, designed for dependable power connections in machinery, workshops and industrial installations. Rated at 16 A and 200–250 V AC, it is ideally suited to nominal 230 V systems operating at 50 or 60 Hz.
The PE1663PP features a 2P+E configuration, providing two current-carrying poles plus a protective earth contact, giving three contacts in total. Its standardised 6h earth-contact position and blue voltage identification correspond to the 200–250 V AC range, helping ensure correct matching with compatible industrial plugs.
Designed in accordance with EN 60309-1 and EN 60309-2, the PE1663PP uses insulating, self-extinguishing thermoplastic construction with a spring-loaded protective lid. Its wall-mounting enclosure, threaded cable-entry grommet and IP44 degree of protection provide a practical and durable fixed socket solution for professional industrial environments.
Key Advantages
- Professional wall-mounted industrial socket for fixed power distribution.
- 16 A rated current for industrial tools, machinery and equipment.
- 200–250 V AC rating suitable for nominal 230 V systems.
- 2P+E configuration provides two current-carrying poles plus protective earth.
- 6h earth-contact position identifies the correct voltage and frequency configuration.
- IP44 splashproof protection for suitable industrial environments.
- Spring-loaded lid protects the socket interface when not connected.
- Threaded cable-entry grommet can be replaced with a suitable cable gland.
Key Features
- ILME PLUSO series wall-mounted socket outlet.
- 16 A rated current.
- 200–250 V AC rated voltage.
- 2P+E electrical configuration.
- 3 contacts in total.
- 50 / 60 Hz operating frequency.
- 6h earth-contact position.
- IP44 degree of protection.
- Wall / surface mounting construction.
- Screw terminals with retained screws.
- Insulating, self-extinguishing thermoplastic enclosure and insert.
- Spring-loaded protective lid.
- RAL 7035 grey enclosure with RAL 5015 blue voltage identification.
- Compliant with EN 60309-1 and EN 60309-2.
Reliable 230 V Industrial Power Connections
Wall-mounted industrial sockets provide a permanent and readily accessible connection point for portable tools, machinery and electrical equipment. The Ilme PE1663PP combines a 16 A current rating with a standard 2P+E configuration for 200–250 V AC systems, making it well suited to common nominal 230 V industrial power applications.
The 6h earth-contact position and blue colour coding distinguish the socket's 200–250 V AC, 50 / 60 Hz configuration from incompatible connector arrangements. Combined with its self-extinguishing thermoplastic construction, retained screw terminals, spring lid and IP44 protection, the PE1663PP provides a dependable fixed connection point for professional industrial installations.
Typical Applications
- 230 V industrial power distribution.
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Workshop and maintenance facilities.
- Portable industrial tools and equipment.
- Manufacturing and engineering installations.
- Fixed socket outlets on suitable industrial surfaces.
