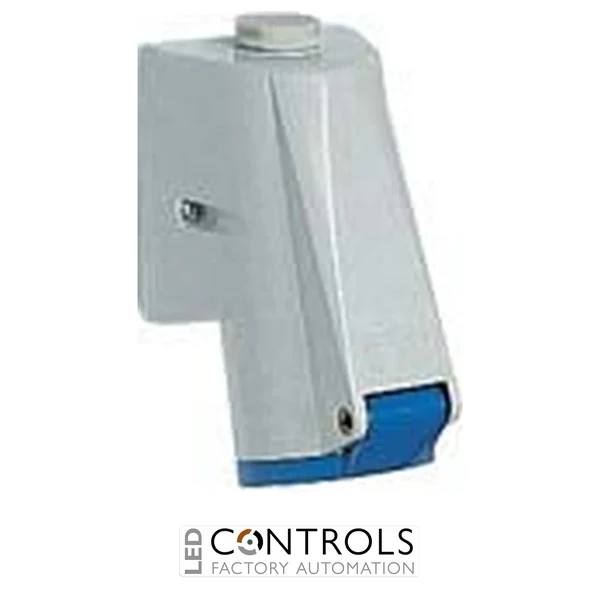

Why Choose the Ilme PE1694PP Wall Mounted Socket?
The Ilme PE1694PP is a robust 16 A wall-mounted industrial socket designed to provide reliable electrical connections for machinery, workshops, production equipment and industrial power distribution systems. Part of the Ilme PLUSO PE series, this socket provides a durable connection point for applications requiring a 230 V, 4-pole configuration.
Designed in accordance with the EN 60309 industrial plug and socket system, the PE1694PP features a 3P+E pole arrangement with a 9 h earth-contact position. Its blue colour identification corresponds to the 200–250 V operating range, helping installers identify the appropriate electrical supply and compatible industrial plug.
With a rated current of 16 A, an operating voltage range of 200–250 V AC at 50/60 Hz and IP44 splashproof protection, the PE1694PP is well suited to fixed industrial installations. Its wall-mounted enclosure, spring-loaded protective lid and Pg 16 cable entry provide a practical solution for dependable power connections in demanding working environments.
Key Advantages
- Reliable 16 A industrial wall-mounted socket for fixed electrical installations.
- 200–250 V AC operating range suitable for nominal 230 V systems.
- 4-pole 3P+E configuration for three-phase connections with protective earth.
- IP44 splashproof protection for industrial working environments.
- 9 h earth-contact position for correct EN 60309 plug compatibility.
- Blue colour coding provides clear identification of the applicable voltage range.
- Self-extinguishing thermoplastic construction provides durability and electrical insulation.
- Wall-mounted format provides a convenient fixed power outlet for machinery and equipment.
Key Features
- Ilme PLUSO PE industrial plug and socket series.
- 16 A rated current.
- 200–250 V AC rated voltage range.
- 4 poles – 3P+E.
- 9 h earth-contact position.
- 50/60 Hz operating frequency.
- IP44 degree of protection.
- Pg 16 cable entry.
- Blue voltage identification.
- Screw connection system.
- Spring-loaded protective socket lid.
- Body, insert and lid manufactured from insulating self-extinguishing thermoplastic material.
- Designed for fixed wall-mounted industrial installations.
Reliable Industrial Power Connections
Industrial socket-outlets based on EN 60309 provide a standardised method of supplying power to machinery and portable or fixed electrical equipment. Their defined pole configurations, voltage colour coding and earth-contact positions help prevent incompatible connections while providing the mechanical durability required for industrial applications.
The Ilme PE1694PP combines a practical wall-mounted enclosure with IP44 splashproof protection and durable thermoplastic construction. The spring-loaded lid protects the socket opening when it is not connected, while screw terminals and the Pg 16 cable entry support straightforward installation as part of industrial power distribution systems.
Typical Applications
- Industrial machinery and manufacturing equipment.
- Factory and workshop power outlets.
- Industrial power distribution systems.
- Machine tools and production lines.
- OEM machinery and automation installations.
- Maintenance and engineering facilities.
- Fixed electrical installations requiring a 16 A industrial socket.
