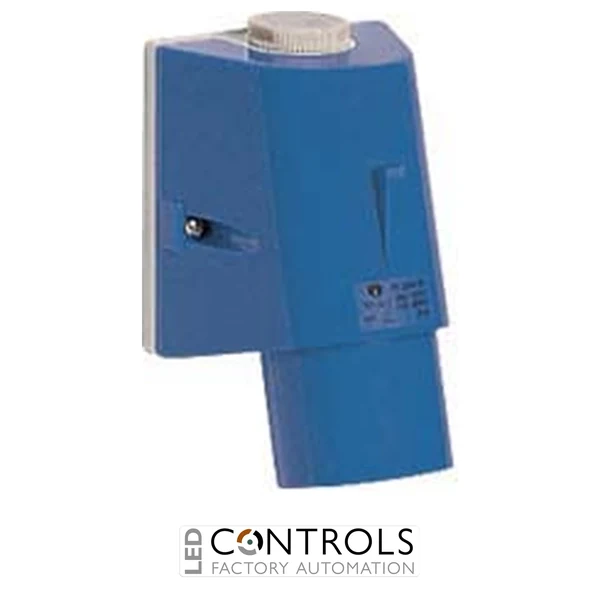

Why Choose the Ilme PE3263SM 32 Amp 230 Volt 3 Pole IP44 Wall-Mounted Appliance Inlet?
The Ilme PE3263SM is a robust 32 A industrial wall-mounted appliance inlet designed to provide a dependable fixed power connection for machinery, manufacturing equipment and industrial electrical installations. Part of the Ilme PLUSO series, this inlet features a 2P+E three-pole configuration and is rated for 200–250 V AC at 50/60 Hz, making it suitable for nominal 230 V industrial applications.
The PE3263SM uses an enclosure, contact insert and locking ring manufactured from insulating, self-extinguishing thermoplastic material for durable industrial service. Its IP44 degree of protection provides splashproof protection when correctly installed and connected to a compatible socket or coupler. Screw-terminal connections provide secure conductor termination, while the wall-mounted construction offers a practical fixed inlet for machinery and equipment.
With a rated current of 32 A, a 200–250 V AC operating range and a three-pole 2P+E arrangement, the PE3263SM provides reliable connectivity for compatible single-phase industrial equipment. Its 6 h earth-contact position and blue voltage identification follow the standardised configuration for this voltage range, helping prevent connection with incompatible industrial connectors.
Key Advantages
- Robust 32 A industrial wall-mounted appliance inlet.
- 200–250 V AC rating suitable for nominal 220 V and 230 V industrial applications.
- Three-pole 2P+E configuration provides two power contacts and protective earth.
- IP44 splashproof protection for suitable industrial environments.
- 6 h earth-contact position provides standardised mechanical keying for the electrical configuration.
- Blue voltage identification provides clear recognition of the 200–250 V AC range.
- Wall-mounted construction provides a secure fixed connection point for machinery and equipment.
- Screw-terminal connections provide secure and serviceable conductor termination.
Key Features
- Ilme PLUSO series wall-mounted appliance inlet / plug.
- 32 A rated current.
- 200–250 V AC rated voltage range.
- 50 / 60 Hz operating frequency.
- Three poles, 2P+E.
- 6 h earth-contact position.
- IP44 degree of protection.
- RAL 5015 blue voltage identification.
- RAL 7035 grey body.
- Fixed wall / surface-mounted construction.
- Pg 21 cable entry.
- Top cable entry with threaded grommet, replaceable with a suitable cable gland.
- Screw-terminal conductor connections.
- Enclosure, insert and locking ring manufactured from insulating self-extinguishing thermoplastic material.
- Operating temperature range of -25 °C to +40 °C.
- Compliant with EN 60309-1 and EN 60309-2 industrial plug and socket standards.
Reliable 230 Volt Industrial Connectivity
Industrial appliance inlets such as the Ilme PE3263SM provide a secure fixed connection point for compatible industrial socket outlets and couplers. Its 2P+E configuration provides two power contacts and a protective earth connection, while the 200–250 V AC rating at 50/60 Hz makes it suitable for common nominal 230 V industrial electrical systems.
The PLUSO series is designed for professional installations where mechanical durability, dependable electrical connections and clear connector identification are important. The PE3263SM combines a 32 A current rating, IP44 protection, screw terminals and robust thermoplastic construction with blue voltage identification and a 6 h earth position for straightforward integration into compatible machinery and industrial equipment.
Typical Applications
- Industrial machinery and production equipment.
- Nominal 220 V and 230 V industrial electrical systems.
- Factory automation and manufacturing equipment.
- Fixed machinery power connections.
- Workshop and maintenance installations.
- OEM machinery and industrial equipment installations.
