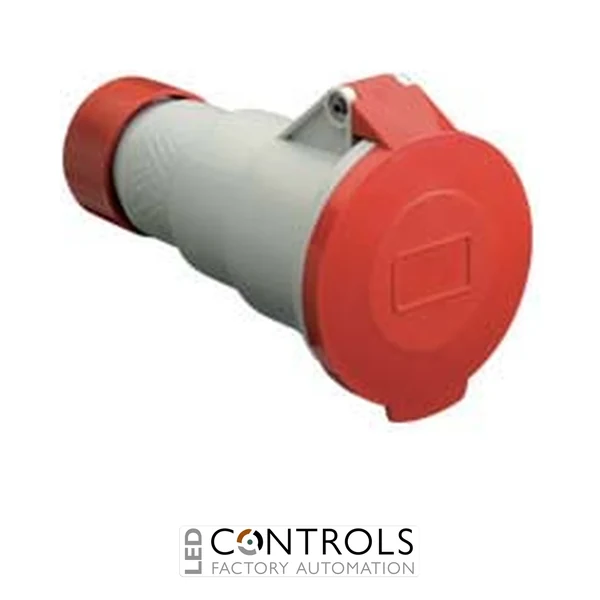

Why Choose the Ilme PE3264PV Coupler?
The Ilme PE3264PV is a robust 32 A industrial coupler designed to provide reliable portable electrical connections for three-phase machinery, extension leads, industrial equipment and power distribution systems. Part of the Ilme PE industrial plug and socket range, it provides a durable cable-mounted socket connection for applications requiring a 415 V, 4-pole configuration.
Designed around the IEC/EN 60309 industrial connection system, the PE3264PV features a 3P+E pole arrangement, providing three phase contacts and protective earth. Its red colour identification corresponds to the 380–415 V industrial voltage range, while the standard 6 h earth-contact position helps ensure compatibility with appropriately configured industrial plugs.
With a rated current of 32 A, a nominal operating voltage of 415 V AC and IP44 splashproof protection, the PE3264PV is well suited to portable and semi-permanent three-phase power connections. Its coupler format allows industrial cables and extension assemblies to terminate in a protected female socket for convenient connection to compatible equipment.
Key Advantages
- Heavy-duty 32 A industrial coupler for portable power connections.
- 415 V AC nominal voltage suitable for common three-phase industrial supplies.
- 4-pole 3P+E configuration provides three phase contacts and protective earth.
- IP44 splashproof protection for demanding industrial environments.
- 6 h earth-contact position for the applicable IEC/EN 60309 configuration.
- Red colour identification provides quick recognition of the voltage class.
- Cable-mounted design is ideal for industrial extension leads and portable equipment connections.
- Standardised industrial format supports connection with appropriately rated IEC/EN 60309 plugs.
Key Features
- Ilme PE industrial plug and socket range.
- 32 A rated current.
- 415 V AC nominal operating voltage.
- 380–415 V AC voltage class.
- 4 poles – 3P+E.
- 6 h earth-contact position.
- 50/60 Hz operating frequency.
- IP44 degree of protection.
- Red voltage identification.
- Portable cable-mounted female coupler design.
- Protective socket cover for the mating interface.
- Suitable for three-phase industrial extension leads and equipment connections.
Reliable Three-Phase Industrial Power Connections
Industrial couplers based on IEC/EN 60309 provide a standardised and mechanically robust way to extend electrical supplies to machinery and portable equipment. Defined current ratings, pole arrangements, voltage colour coding and earth-contact positions help identify compatible connectors and reduce the risk of connecting equipment to an unsuitable electrical supply.
The Ilme PE3264PV combines a 32 A, 415 V three-phase configuration with a portable cable-mounted format and IP44 protection. Its 3P+E arrangement makes it suitable for compatible three-phase equipment requiring three phase conductors together with a protective earth connection, particularly where a flexible extension or detachable power connection is needed.
Typical Applications
- Three-phase industrial extension leads.
- Industrial machinery and production equipment.
- Factory and workshop power distribution.
- Machine tools and manufacturing systems.
- Portable industrial electrical equipment.
- Maintenance and engineering installations.
- Temporary and semi-permanent 415 V industrial power connections.
