Why Choose the Ilme PE3264SV PLUSO Industrial Plug?

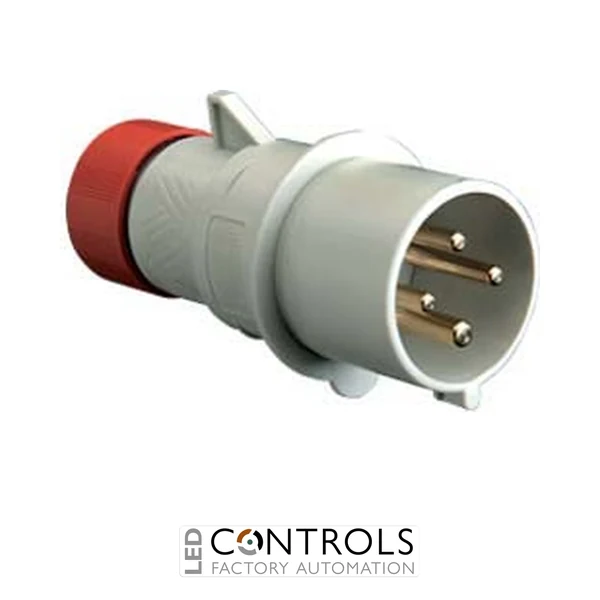

The Ilme PE3264SV is a robust 32 A, 415 V industrial plug from the Ilme PLUSO range, designed for reliable three-phase power connections in machinery, manufacturing equipment and industrial electrical systems. Its 4-pole 3P+E configuration provides three phase contacts plus protective earth for equipment that does not require a neutral conductor.
Designed for 50–60 Hz supplies, the PE3264SV uses the standard 6 h protective-earth contact position associated with this industrial connector configuration. Screw terminals with retained screws provide a practical conductor connection method, while an incorporated cable anchoring collar helps secure the incoming cable within the plug assembly.
The PE3264SV features a self-extinguishing thermoplastic enclosure and is rated to IP44 when correctly assembled and connected. Its red voltage identification, cable-mounted design and compliance with EN 60309-1 and EN 60309-2 make it a dependable choice for professional industrial power distribution and equipment connections.
Key Advantages
- 32 A, 415 V rating for three-phase industrial power applications.
- 4-pole 3P+E configuration provides three phases plus protective earth.
- IP44 protection for suitable industrial environments when correctly connected.
- Screw terminals with retained screws support straightforward and secure conductor termination.
- Integrated cable anchoring collar helps provide effective cable retention.
- Standardised 6 h earth-contact position helps ensure correct mating with compatible industrial sockets.
Key Features
- Ilme PLUSO series industrial plug.
- 32 A rated current.
- 415 V AC rated voltage.
- 4 poles / 3P+E.
- 50–60 Hz frequency.
- 6 h protective-earth contact position.
- IP44 degree of protection.
- Red connector identification for the voltage configuration.
- Self-extinguishing insulating thermoplastic construction.
- Nickel-plated contacts and screw-type conductor terminations.
Reliable Three-Phase Industrial Power Connectivity
Industrial plugs manufactured to EN 60309 conventions use defined pole arrangements, voltage identification and protective-earth clock positions to help prevent incompatible electrical systems from being connected. The PE3264SV's 3P+E arrangement is designed for three-phase equipment requiring a protective-earth connection but no neutral conductor.
With its 32 A current rating, 415 V operating voltage, 6 h keying and IP44 enclosure, the Ilme PE3264SV provides a practical detachable power connection for industrial machinery and distribution systems. Its screw terminals and incorporated cable anchoring arrangement also support straightforward installation and servicing.
Typical Applications
- Three-phase industrial machinery.
- Factory automation and production equipment.
- Industrial motors and machine power supplies.
- Workshop and manufacturing equipment.
- Industrial power distribution systems.
- Portable or detachable 32 A three-phase equipment connections.
