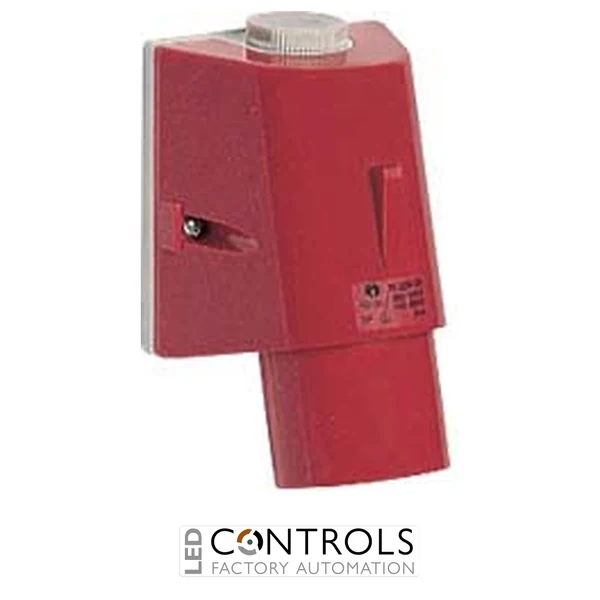

Why Choose the Ilme PE3265SM 32 Amp 415 Volt 5 Pole IP44 Wall-Mounted Appliance Inlet?
The Ilme PE3265SM is a robust 32 A industrial wall-mounted appliance inlet designed to provide a dependable fixed power connection for machinery, manufacturing equipment and industrial electrical installations. Part of the Ilme PLUSO series, this inlet features a 3P+N+E five-pole configuration and is rated for 380–415 V AC at 50/60 Hz, making it suitable for common nominal 400 V and 415 V three-phase systems.
The PE3265SM uses an enclosure, contact insert and locking ring manufactured from insulating, self-extinguishing thermoplastic material for durable industrial service. Its IP44 degree of protection provides splashproof protection when correctly installed and connected to a compatible socket or coupler. Screw-terminal connections provide secure conductor termination, while the top cable entry incorporates a threaded grommet that can be replaced with a suitable cable gland.
With a rated current of 32 A, a 380–415 V AC operating range and a five-pole 3P+N+E arrangement, the PE3265SM provides three phase contacts, neutral and protective earth for compatible industrial equipment. Its 6 h earth-contact position and red voltage identification follow the standardised configuration for this voltage range, helping prevent connection with incompatible industrial connectors.
Key Advantages
- Robust 32 A industrial wall-mounted appliance inlet.
- 380–415 V AC rating suitable for common nominal 400 V and 415 V three-phase systems.
- Five-pole 3P+N+E configuration provides three phases, neutral and protective earth.
- IP44 splashproof protection for suitable industrial environments.
- 6 h earth-contact position provides standardised mechanical keying.
- Red voltage identification provides clear recognition of the 380–415 V AC range.
- Wall-mounted construction provides a secure fixed connection point for machinery and industrial equipment.
- Screw-terminal connections provide secure and serviceable conductor termination.
Key Features
- Ilme PLUSO series wall-mounted appliance inlet / plug.
- 32 A rated current.
- 380–415 V AC rated voltage range.
- 50 / 60 Hz operating frequency.
- Five poles, 3P+N+E.
- 6 h earth-contact position.
- IP44 degree of protection in accordance with EN 60529.
- RAL 3000 red voltage identification.
- RAL 7035 grey body.
- Fixed wall / surface-mounted construction.
- Pg 21 cable entry.
- Top cable entry with threaded grommet, replaceable with a suitable cable gland.
- Screw-terminal conductor connections.
- Enclosure, insert and locking ring manufactured from insulating self-extinguishing thermoplastic material.
- Designed for operation from -25 °C to +40 °C.
- Compliant with EN 60309-1 and EN 60309-2 industrial plug and socket standards.
Reliable 400 Volt and 415 Volt Three-Phase Industrial Connectivity
Industrial appliance inlets such as the Ilme PE3265SM provide a secure fixed connection point for compatible industrial socket outlets and couplers. Its 3P+N+E configuration provides three phase contacts, neutral and protective earth, while the 380–415 V AC rating at 50/60 Hz makes it suitable for common three-phase industrial power systems requiring a neutral connection.
The PLUSO series is designed for professional installations where mechanical durability, dependable electrical connections and clear connector identification are important. The PE3265SM combines a 32 A current rating, IP44 protection, screw-terminal connections and robust thermoplastic construction with red voltage identification and a 6 h earth position for straightforward integration into compatible industrial machinery and electrical systems.
Typical Applications
- Industrial machinery and production equipment.
- 400 V and 415 V three-phase electrical systems.
- Three-phase equipment requiring a neutral conductor.
- Factory automation and manufacturing equipment.
- Fixed machinery power connections.
- Workshop and maintenance installations.
