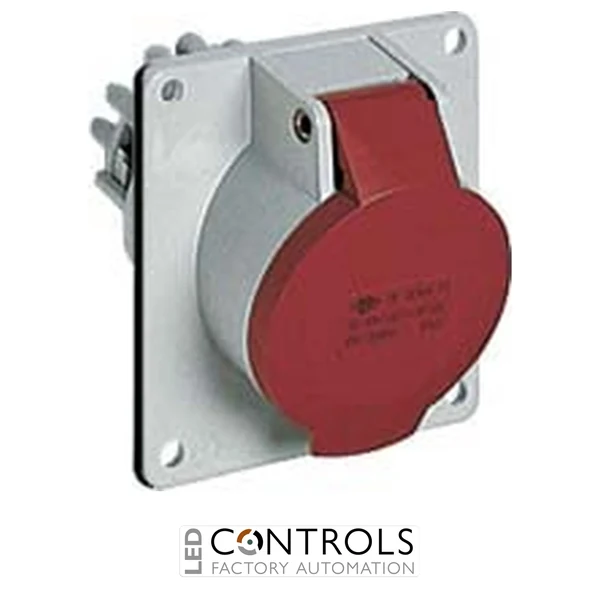

Why Choose the Ilme PEM3265PI Panel Mounted Inclined Socket?
The Ilme PEM3265PI is a robust 32 A, 415 V panel mounted inclined socket designed for dependable three-phase industrial power connections. Its 5-pole 3P+N+E configuration provides three phase contacts, neutral and protective earth, making it suitable for machinery and equipment requiring a complete three-phase supply with neutral.
Designed for 50–60 Hz electrical systems, the PEM3265PI uses the standard 6 h protective-earth contact position associated with 380–415 V industrial connector configurations. Its inclined flush-mounting design provides a practical connection angle for panel and equipment installations while helping reduce cable strain compared with some straight-entry arrangements.
The PEM3265PI provides IP44 protection and features a spring-loaded lid, self-extinguishing thermoplastic construction and screw-type conductor terminals. Its voltage-coded red identification and compliance with the EN 60309 industrial connector system make it a dependable solution for professional machinery, manufacturing and industrial power distribution applications.
Key Advantages
- 32 A, 415 V rating for demanding three-phase industrial power applications.
- 5-pole 3P+N+E configuration provides three phases, neutral and protective earth.
- Inclined panel mounting provides convenient plug access and cable routing.
- IP44 protection for suitable industrial environments.
- Spring-loaded protective lid helps protect the socket interface when disconnected.
- 6 h protective-earth position provides standardised mechanical keying for the electrical configuration.
Key Features
- Ilme industrial panel socket.
- 32 A rated current.
- 380–415 V AC operating range.
- 5 poles / 3P+N+E.
- 50–60 Hz frequency.
- 6 h protective-earth contact position.
- IP44 degree of protection.
- Inclined flush-mounting configuration.
- Self-extinguishing insulating thermoplastic construction.
- Screw-type conductor termination with captive screws.
Reliable Panel-Mounted Three-Phase Power Connectivity
Industrial socket outlets use standardised pole arrangements, colour coding and protective-earth clock positions to help ensure that plugs intended for incompatible electrical supplies cannot normally be connected. The PEM3265PI's 3P+N+E arrangement provides all three phases, neutral and protective earth for equipment requiring a five-contact three-phase connection.
With its 32 A rating, 380–415 V operating range, inclined panel-mounted format and IP44 protection, the Ilme PEM3265PI provides a practical fixed power connection for machinery and electrical equipment. The 92 × 102 mm flange and screw-terminal connection system support straightforward integration into suitable panels and equipment enclosures.
Typical Applications
- Three-phase industrial machinery requiring neutral.
- Factory automation and production equipment.
- Electrical control panels and machine interfaces.
- Manufacturing and process equipment.
- Industrial power distribution systems.
- Fixed 32 A, 415 V equipment connection points.
