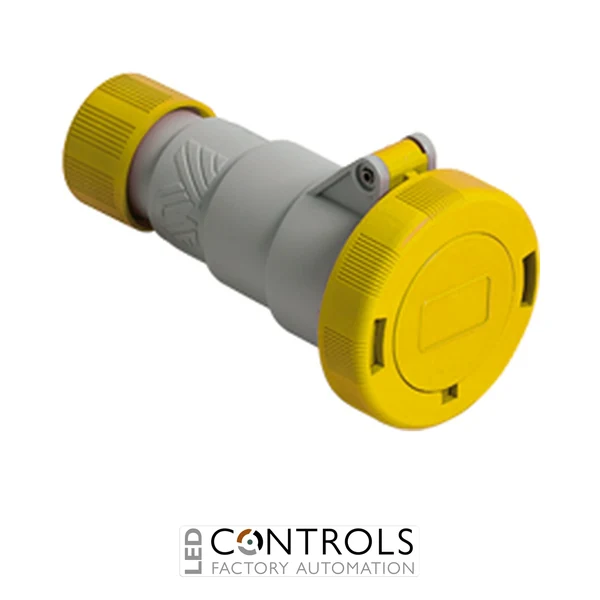

Why Choose the Ilme PESW1643PV SQUICH® Industrial Coupler?
The Ilme PESW1643PV is a robust 16 A industrial coupler designed for reliable mobile power connections in industrial machinery, construction equipment and electrical distribution systems. Part of the Ilme PLUSO series, this mobile socket outlet features Ilme’s SQUICH® quick connection technology, allowing fast and secure conductor termination without conventional screw terminals.
Designed for demanding industrial applications, the PESW1643PV features an insulating, self-extinguishing thermoplastic enclosure, contact insert and protective lid. Its IP67 protection rating provides a high level of protection against dust and water ingress, making it particularly suitable for harsh industrial, construction and outdoor environments when correctly connected and installed.
With a rated current of 16 A and an operating voltage range of 100–130 V AC, the PESW1643PV is suitable for nominal 110 V AC applications. It uses a 2P+E / 3-pole configuration with the protective earth contact positioned at 4 h, while its yellow voltage identification allows easy recognition in industrial installations.
Key Advantages
- Heavy-duty 16 A industrial mobile coupler.
- Suitable for 110 V AC industrial power applications.
- 2P+E / 3-pole configuration with protective earth connection.
- IP67 protection rating for demanding environments.
- SQUICH® quick connection technology simplifies conductor termination.
- Screwless terminals can help reduce installation and maintenance time.
- Self-extinguishing thermoplastic construction for robust industrial service.
- Yellow voltage identification for easy recognition of the 110 V configuration.
Key Features
- Ilme PLUSO series industrial mobile socket outlet.
- 16 A rated current.
- 100–130 V AC rated voltage range.
- 110 V AC nominal application voltage.
- 3 pole / 2P+E configuration.
- Protective earth contact position at 4 h.
- 50 / 60 Hz operating frequency.
- IP67 ingress protection.
- SQUICH® screwless quick connection terminals.
- Straight cable connection direction.
- Mobile / trailing coupler configuration.
- Self-extinguishing thermoplastic enclosure and insert.
- Spring-operated protective lid.
- Grey and yellow colour coding for rapid identification.
Fast and Reliable SQUICH® Industrial Power Connections
Industrial couplers such as the Ilme PESW1643PV provide a secure detachable connection between compatible industrial plugs, cables and electrical equipment. Its 2P+E arrangement provides two current-carrying conductors and a protective earth connection, while the 4 h earth position and yellow identification distinguish the connector for its specified 110 V application.
Ilme’s SQUICH® connection technology uses screwless terminals to simplify wiring compared with conventional screw-terminal connectors. Combined with the PLUSO series thermoplastic construction and IP67 ingress protection, this makes the PESW1643PV particularly useful where fast installation, reliable connections and resistance to demanding environmental conditions are required.
Typical Applications
- 110 V industrial and construction power distribution.
- Industrial machinery and production equipment.
- Construction sites and temporary electrical installations.
- Factory and workshop power connections.
- Portable tools and compatible industrial equipment.
- Machine building and OEM installations.
