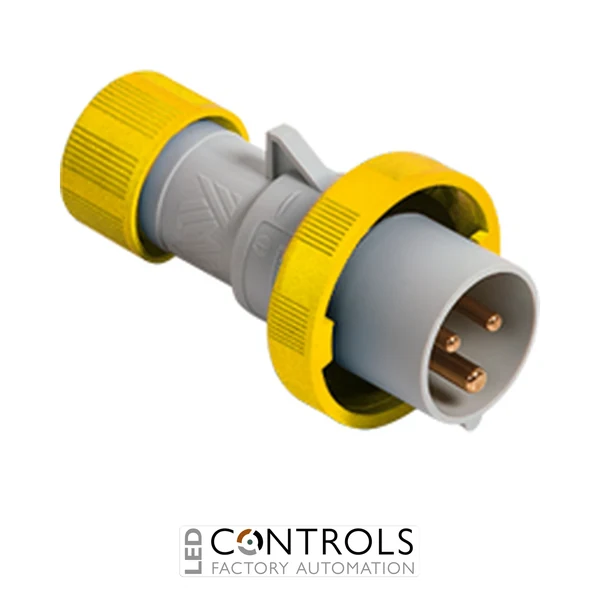

Why Choose the Ilme PESW1643SV SQUICH® Industrial Plug?
The Ilme PESW1643SV is a robust 16 A industrial plug designed for reliable mobile power connections in construction, industrial machinery, workshops and electrical distribution systems. Part of the Ilme PLUSO series, this straight mobile plug features SQUICH® quick connection technology for fast, secure conductor termination without conventional screw terminals.
Designed for demanding low-voltage industrial applications, the PESW1643SV features an enclosure, insert and locking ring manufactured from insulating, self-extinguishing thermoplastic material. Its IP66/IP67 protection provides excellent resistance to dust and water ingress when correctly connected, making it particularly suitable for demanding industrial, construction and outdoor environments.
With a rated current of 16 A and a rated voltage range of 100–130 V AC at 50 / 60 Hz, the PESW1643SV is ideal for nominal 110 V AC applications. The plug uses a 2P+E / 3-pole configuration with its protective earth contact positioned at 4 h, while yellow voltage coding provides easy identification within industrial power installations.
Key Advantages
- Heavy-duty 16 A industrial mobile plug.
- Suitable for 110 V AC industrial and construction applications.
- 2P+E / 3-pole configuration with protective earth connection.
- IP66/IP67 protection for demanding industrial environments.
- SQUICH® quick connection technology simplifies conductor termination.
- Screwless spring connection helps reduce installation and maintenance time.
- Self-extinguishing thermoplastic construction provides robust electrical insulation.
- Yellow voltage coding allows rapid identification of the 110 V configuration.
Key Features
- Ilme PLUSO series industrial mobile plug.
- 16 A rated current.
- 100–130 V AC rated voltage range.
- 110 V AC nominal application voltage.
- 3 pole / 2P+E configuration.
- Protective earth contact position at 4 h.
- 50 / 60 Hz operating frequency.
- IP66/IP67 ingress protection.
- SQUICH® screwless spring connection.
- Straight mobile / cable-mounted configuration.
- Colour-coded cable gland and locking ring.
- Insulating self-extinguishing thermoplastic construction.
- Grey enclosure with yellow voltage identification.
- Manufactured in accordance with IEC / EN 60309-1 and 60309-2.
Fast and Reliable SQUICH® Industrial Power Connections
Industrial plugs such as the Ilme PESW1643SV provide a secure detachable connection between electrical cables and compatible industrial socket outlets or couplers. The 2P+E arrangement provides two current-carrying conductors and a protective earth connection, while the 4 h earth position and yellow identification distinguish this connector for its specified 100–130 V AC voltage range.
Ilme’s SQUICH® technology uses spring terminals to provide quick conductor termination without conventional terminal screws. Combined with the PLUSO series thermoplastic construction and IP66/IP67 ingress protection, the PESW1643SV provides an efficient connection solution for installations where rapid wiring, dependable electrical contact and resistance to demanding environmental conditions are important.
Typical Applications
- 110 V construction site power distribution.
- Industrial machinery and production equipment.
- Temporary and mobile electrical installations.
- Factory and workshop power connections.
- Portable tools and compatible industrial equipment.
- Machine building and OEM installations.
