Why Choose the Ilme PEW12563SI Panel-Mounted Appliance Inlet?

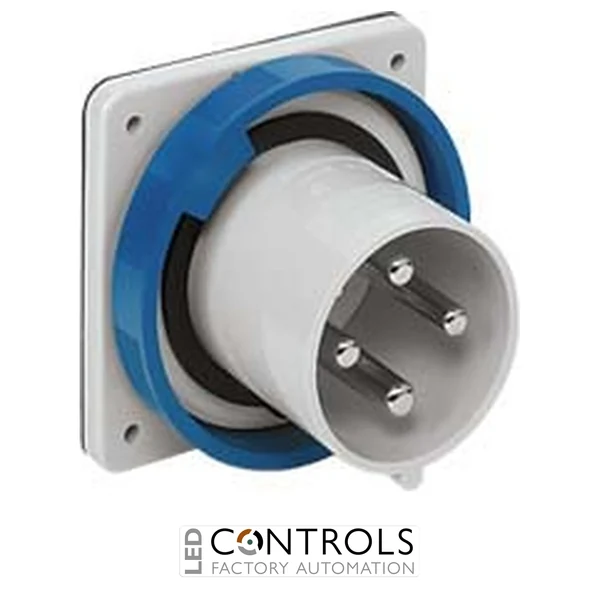

The Ilme PEW12563SI is a heavy-duty 125 A panel-mounted industrial appliance inlet designed for reliable high-current power connections in machinery, electrical panels and industrial distribution equipment. Part of the Ilme PLUSO series, this flush-mounting inlet provides a robust fixed connection point for compatible industrial socket outlets and couplers.
Designed for demanding industrial installations, the PEW12563SI features insulating, self-extinguishing thermoplastic construction and screw terminal connections for secure conductor termination. Its IP67 protection rating provides a high level of protection against dust and water ingress when correctly installed and connected, making it suitable for demanding indoor and outdoor industrial environments.
With a rated current of 125 A and a rated operating voltage of 200–250 V AC at 50 / 60 Hz, the PEW12563SI is suitable for nominal 230 V AC applications. It uses a 2P+E / 3-pole configuration with the protective earth contact positioned at 6 h, while its blue voltage identification and 130 × 130 mm flange make it well suited to fixed industrial installations.
Key Advantages
- Heavy-duty 125 A panel-mounted industrial appliance inlet.
- Suitable for 230 V AC high-current industrial applications.
- 2P+E / 3-pole configuration with protective earth connection.
- IP67 protection rating for demanding industrial environments.
- Flush-mounting design integrates securely into machinery and electrical panels.
- 130 × 130 mm mounting flange for robust fixed installation.
- Nickel-plated contacts provide durable electrical connections.
- Integrated pilot contact supports high-current industrial connection systems.
Key Features
- Ilme PLUSO series industrial appliance inlet.
- 125 A rated current.
- 200–250 V AC rated voltage range.
- 230 V AC nominal application voltage.
- 3 pole / 2P+E configuration.
- Protective earth contact position at 6 h.
- 50 / 60 Hz operating frequency.
- IP67 ingress protection.
- Panel / flush-mounting configuration.
- 130 × 130 mm flange.
- Screw terminal electrical connections.
- Nickel-plated contacts.
- Integrated pilot contact for the 125 A connection system.
- Insulating self-extinguishing thermoplastic construction.
- Blue voltage identification.
- Designed in accordance with CEI EN 60309-1 and EN 60309-2.
Reliable High-Current Panel-Mounted Power Connections
Industrial appliance inlets such as the Ilme PEW12563SI provide a secure fixed connection point between electrical machinery and compatible industrial socket outlets or couplers. The 2P+E configuration provides two current-carrying conductors and protective earth, while the 6 h earth position and blue identification distinguish the inlet for its specified 200–250 V AC voltage range.
The PLUSO series is designed for professional industrial installations where high current capacity, mechanical durability and environmental protection are essential. The PEW12563SI combines a robust 130 × 130 mm mounting flange, screw terminal connections, nickel-plated contacts and IP67 protection to provide a dependable fixed power connection for demanding machinery and distribution equipment.
Typical Applications
- High-current industrial machinery and production equipment.
- Electrical control panels and power distribution enclosures.
- Factory and workshop power distribution.
- Industrial generators and temporary power systems.
- Heavy-duty machine building and OEM equipment.
- Outdoor and demanding industrial electrical installations.
