Why Choose the Ilme PEW12565SM Wall Mounted Appliance Inlet?

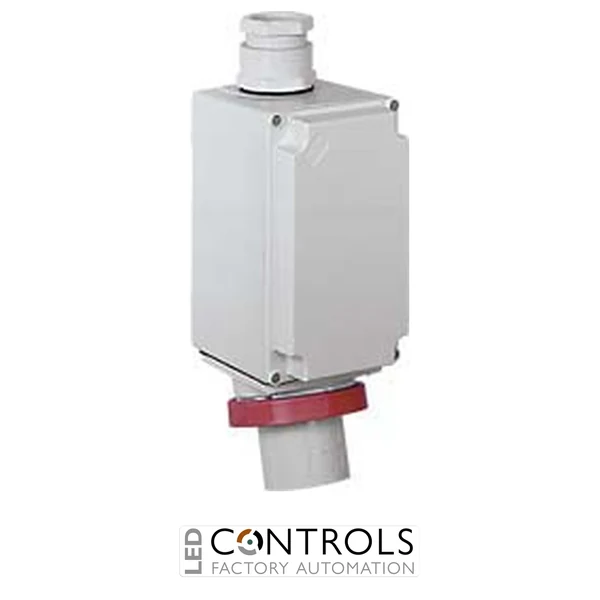

The Ilme PEW12565SM is a heavy-duty 125 A wall-mounted industrial appliance inlet designed for high-current electrical connections in machinery, manufacturing equipment and industrial power distribution systems. Part of the Ilme PLUSO PEW range, it provides a robust fixed male connection point for equipment requiring a compatible nominal 415 V AC supply.
The PEW12565SM is rated for 380–415 V AC at 50/60 Hz and features a 5-pole 3P+N+E configuration, providing three phase contacts, neutral and protective earth. Its 6 h earth-contact position and red voltage identification correspond to the standardised IEC/EN 60309 configuration for this industrial voltage range.
With a substantial 125 A rated current and IP67 protection, the PEW12565SM is engineered for demanding industrial environments. It uses screw-terminal connections, insulating self-extinguishing thermoplastic construction, nickel-plated contacts and a pilot contact, while the top cable entry incorporates a cable gland for secure installation.
Key Advantages
- Heavy-duty 125 A wall-mounted appliance inlet for high-current industrial applications.
- Rated for 380–415 V AC at 50/60 Hz.
- 5-pole 3P+N+E configuration provides three phases, neutral and protective earth.
- 6 h earth-contact position for the specified IEC/EN 60309 configuration.
- IP67 protection for demanding industrial environments.
- Screw-terminal connections provide secure conductor termination.
- Nickel-plated contacts support dependable high-current electrical connections.
- Integrated pilot contact supports the requirements of the 125 A connector configuration.
Key Features
- Ilme PLUSO PEW wall-mounting plug / appliance inlet.
- 125 A rated current.
- 380–415 V AC rated voltage.
- 415 V AC nominal voltage class.
- 5 poles – 3P+N+E.
- 50/60 Hz operating frequency.
- 6 h earth-contact position.
- IP67 degree of protection.
- Red industrial voltage identification.
- Wall-mounted fixed male connection.
- Angled insertion direction.
- Screw-terminal conductor connections.
- Top cable entry with cable gland.
- Pg 48 cable entry.
- Insulating self-extinguishing thermoplastic body, insert and locking ring.
- Nickel-plated electrical contacts.
- Integrated pilot contact.
- Compliant with EN 60309-1 and EN 60309-2.
Heavy-Duty High-Current Industrial Power Connections
IEC/EN 60309 industrial connectors use standardised current ratings, voltage ranges, pole arrangements, colour identification and earth-contact positions to provide clearly defined electrical interfaces. On the PEW12565SM, the red identification, 3P+N+E arrangement and 6 h earth position identify its 380–415 V AC industrial configuration and help ensure connection with a correctly rated mating coupler.
The PEW12565SM combines a 125 A high-current rating with IP67 protection, screw terminals, nickel-plated contacts and a pilot contact. Its wall-mounted construction provides a permanent male connection point for industrial equipment, while the locking-ring system and cable gland support secure connections in demanding machinery and power-distribution applications.
Typical Applications
- High-current industrial machinery.
- Manufacturing and production equipment.
- Factory electrical distribution systems.
- Three-phase equipment requiring neutral and protective earth.
- Industrial processing machinery.
- Heavy-duty workshop installations.
- OEM machinery and automation systems.
- Fixed 125 A industrial equipment power connections.
