Why Choose the Ilme PEW1643PQ Panel-Mounted Straight Socket?

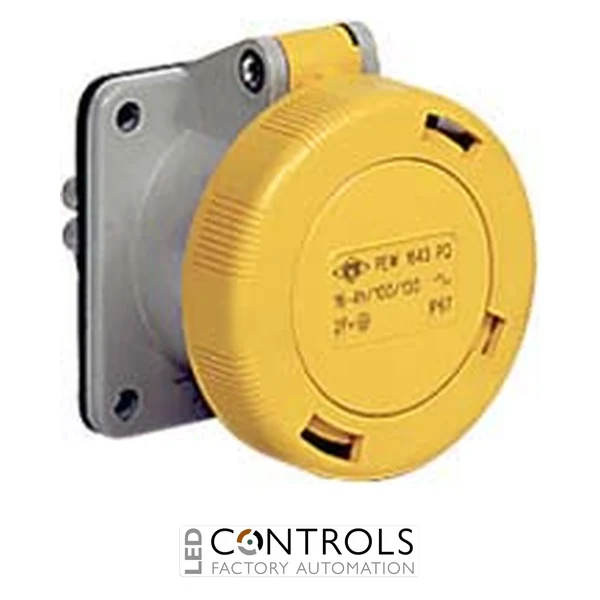

The Ilme PEW1643PQ is a robust 16 A industrial panel-mounted straight socket outlet designed for reliable low-voltage power connections in industrial machinery, electrical panels, construction equipment and power distribution systems. Part of the Ilme PLUSO series, this flush-mounted socket combines durable thermoplastic construction with a compact format for professional fixed installations.
Designed in accordance with EN 60309-1 and EN 60309-2, the PEW1643PQ features an enclosure, insert and cover manufactured from insulating, self-extinguishing thermoplastic material. Its IP67 protection rating provides a high level of protection against dust and water ingress when correctly installed and connected, making it particularly suitable for demanding industrial and construction environments.
With a rated current of 16 A and a rated voltage range of 100–130 V AC at 50 / 60 Hz, the PEW1643PQ is ideal for nominal 110 V AC applications. It uses a 2P+E / 3-pole configuration with the protective earth contact positioned at 4 h, while its yellow voltage identification and 65 × 65 mm flange make it easy to identify and integrate into industrial panels.
Key Advantages
- Compact 16 A industrial panel-mounted straight socket.
- Suitable for 110 V AC industrial and construction applications.
- 2P+E / 3-pole configuration with protective earth connection.
- IP67 protection rating for demanding environments.
- Straight flush-mounting design for integration into panels and machinery.
- 65 × 65 mm mounting flange with compact 52 × 52 mm fixing centres.
- Screw terminal connections provide secure conductor termination.
- Self-extinguishing thermoplastic construction for robust industrial service.
Key Features
- Ilme PLUSO series industrial socket outlet.
- 16 A rated current.
- 100–130 V AC rated voltage range.
- 110 V AC nominal application voltage.
- 3 pole / 2P+E configuration.
- Protective earth contact position at 4 h.
- 50 / 60 Hz operating frequency.
- IP67 ingress protection.
- Straight panel / flush-mounting configuration.
- 65 × 65 mm mounting flange.
- 52 × 52 mm socket fixing centres.
- Screw terminal electrical connections.
- Insulating self-extinguishing thermoplastic construction.
- Grey body with yellow voltage identification.
- Manufactured in accordance with EN 60309-1 and EN 60309-2.
Reliable 110 V Panel-Mounted Power Connections
Industrial socket outlets such as the Ilme PEW1643PQ provide a secure fixed connection point for compatible industrial plugs used with machinery, portable equipment and power distribution systems. The 2P+E configuration provides two current-carrying conductors and protective earth, while the 4 h earth position and yellow identification distinguish the socket for its specified 100–130 V AC voltage range.
The PLUSO series is designed for professional installations where dependable electrical connections, mechanical durability and environmental protection are important. The PEW1643PQ combines a compact panel-mounted format, screw terminals and IP67 protection to provide reliable 110 V connectivity for demanding industrial and construction applications.
Typical Applications
- 110 V construction site power distribution.
- Industrial machinery and production equipment.
- Electrical panels and distribution equipment.
- Factory and workshop power systems.
- Machine building and OEM installations.
- Outdoor and demanding industrial electrical applications.
