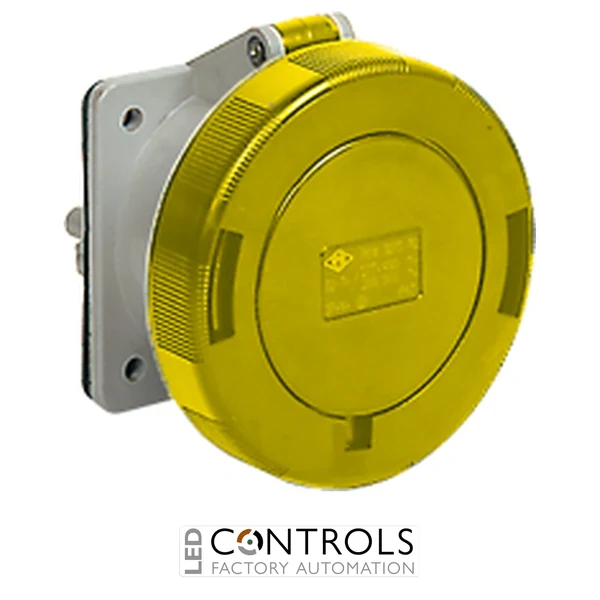

Why Choose the Ilme PEW1643PQF Panel-Mounted Straight Socket?
The Ilme PEW1643PQF is a robust 16 A industrial panel-mounted straight socket outlet designed for reliable low-voltage power connections in industrial machinery, electrical panels, construction equipment and power distribution systems. Part of the Ilme PLUSO series, this watertight flush-mounting socket combines durable construction with an enlarged mounting flange for straightforward integration into professional equipment.
Designed in accordance with EN 60309-1 and EN 60309-2, the PEW1643PQF features a body, insert and protective lid manufactured from insulating, self-extinguishing thermoplastic material. The flange incorporates an anti-ageing gasket, while the watertight version uses a spring lid with locking ring and gasket. Its IP67 protection rating provides a high level of protection against dust and water ingress when correctly installed and connected.
With a rated current of 16 A and a rated voltage range of 100–130 V AC at 50 / 60 Hz, the PEW1643PQF is suitable for nominal 110 V AC applications. It uses a 2P+E / 3-pole configuration with the protective earth contact positioned at 4 h, while its yellow voltage identification and enlarged 80 × 80 mm flange make it easy to identify and install in industrial panels.
Key Advantages
- Robust 16 A industrial panel-mounted straight socket.
- Suitable for 110 V AC industrial and construction applications.
- 2P+E / 3-pole configuration with protective earth connection.
- IP67 protection rating for demanding industrial environments.
- Straight flush-mounting design for integration into machinery and electrical panels.
- Enlarged 80 × 80 mm flange for convenient panel installation.
- Anti-ageing flange gasket supports reliable environmental sealing.
- Self-extinguishing thermoplastic construction for robust industrial service.
Key Features
- Ilme PLUSO series industrial socket outlet.
- 16 A rated current.
- 100–130 V AC rated voltage range.
- 110 V AC nominal application voltage.
- 3 pole / 2P+E configuration.
- Protective earth contact position at 4 h.
- 50 / 60 Hz operating frequency.
- IP67 ingress protection.
- Straight panel / flush-mounting configuration.
- 80 × 80 mm enlarged mounting flange.
- Flange with anti-ageing gasket.
- Spring-operated protective lid with locking ring and gasket.
- Insulating self-extinguishing thermoplastic construction.
- Yellow voltage identification for the 100–130 V AC range.
- Manufactured in accordance with EN 60309-1 and EN 60309-2.
Reliable 110 V Panel-Mounted Power Connections
Industrial socket outlets such as the Ilme PEW1643PQF provide a secure fixed connection point for compatible industrial plugs used with machinery, portable equipment and power distribution systems. The 2P+E configuration provides two current-carrying conductors and protective earth, while the 4 h earth position and yellow identification distinguish the socket for its specified 100–130 V AC voltage range.
The PLUSO series is designed for professional installations where dependable electrical connections, mechanical durability and environmental protection are important. The PEW1643PQF combines a straight flush-mounted format, an enlarged 80 × 80 mm flange and IP67 protection to provide reliable 110 V connectivity for demanding industrial and construction applications.
Typical Applications
- 110 V construction site power distribution.
- Industrial machinery and production equipment.
- Electrical panels and distribution equipment.
- Factory and workshop power systems.
- Machine building and OEM installations.
- Outdoor and demanding industrial electrical applications.
