Why Choose the Ilme PEW1644SM Wall-Mounted Appliance Inlet?

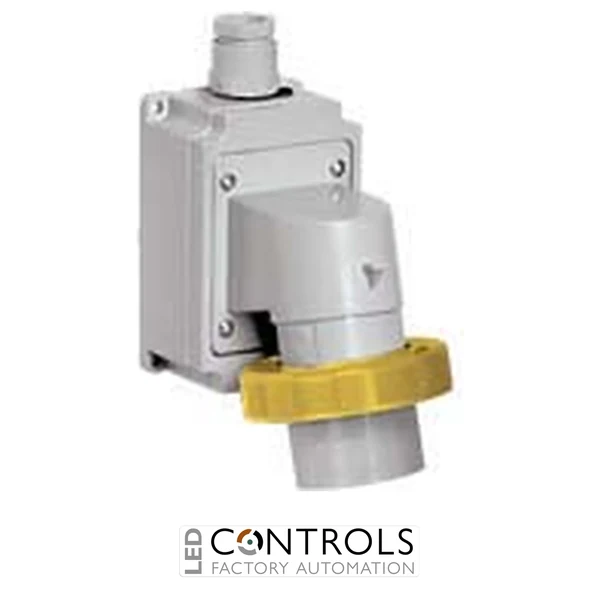

The Ilme PEW1644SM is a robust 16 A wall-mounted industrial appliance inlet designed for reliable low-voltage power connections in industrial machinery, construction equipment and electrical distribution systems. Part of the Ilme PLUSO series, this fixed wall-mounted inlet provides a durable connection point for compatible industrial socket outlets and couplers.
Designed in accordance with CEI EN 60309-1 and EN 60309-2, the PEW1644SM features a body, insert and locking ring manufactured from insulating, self-extinguishing thermoplastic material. Its IP67 protection rating provides a high level of protection against dust and water ingress when correctly installed and connected, making it particularly suitable for demanding industrial, construction and outdoor environments.
With a rated current of 16 A and a rated voltage range of 100–130 V AC at 50 / 60 Hz, the PEW1644SM is suitable for nominal 110 V AC applications. It uses a 3P+E / 4-pole configuration with the protective earth contact positioned at 4 h, while yellow voltage identification enables rapid recognition of the low-voltage configuration.
Key Advantages
- Robust 16 A wall-mounted industrial appliance inlet.
- Suitable for 110 V AC industrial and construction applications.
- 3P+E / 4-pole configuration with protective earth connection.
- IP67 protection rating for demanding industrial environments.
- Fixed wall-mounting design provides a secure equipment connection point.
- Screw terminal connections provide dependable conductor termination.
- Self-extinguishing thermoplastic construction for robust industrial service.
- Yellow voltage identification allows rapid recognition of the 100–130 V AC configuration.
Key Features
- Ilme PLUSO series industrial wall-mounted appliance inlet.
- 16 A rated current.
- 100–130 V AC rated voltage range.
- 110 V AC nominal application voltage.
- 4 pole / 3P+E configuration.
- Protective earth contact position at 4 h.
- 50 / 60 Hz operating frequency.
- IP67 ingress protection.
- Fixed wall-mounted configuration.
- Angled connection orientation.
- Screw terminal electrical connections.
- Top cable entry with cable gland.
- Pg 16 cable entry.
- Locking ring with sealing gasket.
- Insulating self-extinguishing thermoplastic construction.
- Yellow voltage identification.
- Manufactured in accordance with CEI EN 60309-1 and EN 60309-2.
Reliable 110 V Wall-Mounted Power Connections
Industrial appliance inlets such as the Ilme PEW1644SM provide a secure fixed connection point between electrical equipment and compatible industrial socket outlets or couplers. The 3P+E configuration provides three current-carrying conductors and protective earth, while the 4 h earth position and yellow identification distinguish the inlet for its specified 100–130 V AC voltage range.
The PLUSO series is designed for professional installations where dependable electrical connections, mechanical durability and environmental protection are important. The PEW1644SM combines screw terminals, a top-entry cable gland, self-extinguishing thermoplastic construction and IP67 protection to provide reliable connectivity for demanding industrial and construction applications.
Typical Applications
- 110 V industrial and construction power distribution.
- Industrial machinery and production equipment.
- Fixed electrical distribution equipment.
- Factory and workshop power systems.
- Machine building and OEM installations.
- Outdoor and demanding industrial electrical applications.
