Why Choose the Ilme PEW1644SV Industrial Plug?

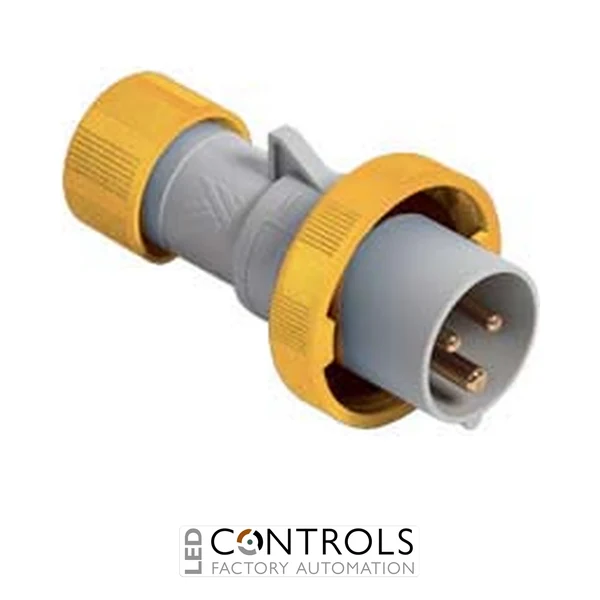

The Ilme PEW1644SV is a robust 16 A industrial mobile plug designed for reliable low-voltage power connections in construction, industrial machinery, workshops and electrical distribution systems. Part of the Ilme PLUSO series, this straight cable-mounted plug provides a durable connection for compatible industrial socket outlets and couplers.
Designed in accordance with EN 60309-1 and EN 60309-2, the PEW1644SV features a body, insert and locking ring manufactured from insulating, self-extinguishing thermoplastic material. Its IP67 protection rating provides a high level of protection against dust and water ingress when correctly connected, making it particularly suitable for demanding industrial, construction and outdoor environments.
With a rated current of 16 A and a rated voltage range of 100–130 V AC at 50 / 60 Hz, the PEW1644SV is suitable for nominal 110 V AC applications. It uses a 3P+E / 4-pole configuration with the protective earth contact positioned at 4 h, while yellow voltage identification enables rapid recognition of the low-voltage configuration.
Key Advantages
- Robust 16 A industrial mobile plug.
- Suitable for 110 V AC industrial and construction applications.
- 3P+E / 4-pole configuration with protective earth connection.
- IP67 protection rating for demanding industrial environments.
- Straight cable-mounted design for convenient mobile equipment connections.
- Screw terminal connections with captive screws provide secure conductor termination.
- Self-extinguishing thermoplastic construction provides robust electrical insulation.
- Yellow voltage coding allows rapid identification of the 100–130 V AC configuration.
Key Features
- Ilme PLUSO series industrial mobile plug.
- 16 A rated current.
- 100–130 V AC rated voltage range.
- 110 V AC nominal application voltage.
- 4 pole / 3P+E configuration.
- Protective earth contact position at 4 h.
- 50 / 60 Hz operating frequency.
- IP67 ingress protection.
- Straight mobile / cable-mounted configuration.
- Screw terminal electrical connections.
- Captive terminal screws.
- Cable entry with gland.
- Locking ring with sealing gasket.
- Insulating self-extinguishing thermoplastic construction.
- RAL 7035 grey body with RAL 1021 yellow voltage identification.
- Manufactured in accordance with EN 60309-1 and EN 60309-2.
Reliable 110 V Industrial Power Connections
Industrial plugs such as the Ilme PEW1644SV provide a secure detachable connection between electrical equipment, flexible cables and compatible industrial socket outlets. The 3P+E configuration provides three current-carrying conductors and protective earth, while the 4 h earth position and yellow identification distinguish the plug for its specified 100–130 V AC voltage range.
The PLUSO series is designed for professional installations where dependable electrical connections, mechanical durability and environmental protection are important. The PEW1644SV combines screw terminals, a colour-coded cable gland, self-extinguishing thermoplastic construction and IP67 protection to provide reliable connectivity for demanding industrial and construction applications.
Typical Applications
- 110 V construction site power distribution.
- Industrial machinery and production equipment.
- Portable industrial equipment and machinery.
- Factory and workshop power systems.
- Temporary power and distribution assemblies.
- Outdoor and demanding industrial electrical applications.
