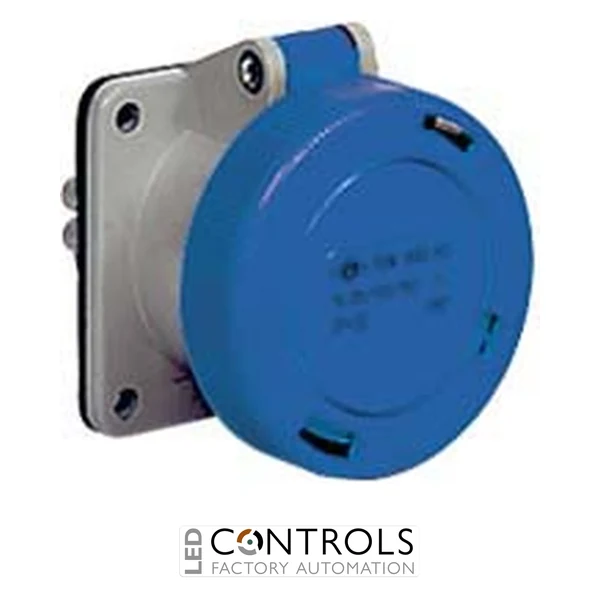

Why Choose the Ilme PEW1663PQ Panel-Mounted Straight Socket?
The Ilme PEW1663PQ is a robust 16 A industrial panel-mounted straight socket outlet designed for reliable power connections in industrial machinery, electrical panels, workshops and distribution systems. Part of the Ilme PLUSO series, this flush-mounted female socket provides a compact and durable connection point for compatible industrial plugs.
Designed in accordance with EN 60309-1 and EN 60309-2, the PEW1663PQ features an enclosure, insert and protective cover manufactured from insulating, self-extinguishing thermoplastic material. Its IP67 protection rating provides a high level of protection against dust and water ingress when correctly installed and connected, making it suitable for demanding indoor and outdoor industrial environments.
With a rated current of 16 A and a rated voltage range of 200–250 V AC at 50 / 60 Hz, the PEW1663PQ is suitable for nominal 230 V AC applications. It uses a 2P+E / 3-pole configuration with the protective earth contact positioned at 6 h, while blue voltage identification and a compact 65 × 65 mm flange make it easy to identify and integrate into industrial panels.
Key Advantages
- Robust 16 A industrial panel-mounted straight socket.
- Suitable for 230 V AC industrial power applications.
- 2P+E / 3-pole configuration with protective earth connection.
- IP67 protection rating for demanding industrial environments.
- Straight flush-mounting design for integration into machinery and electrical panels.
- 65 × 65 mm mounting flange with compact 52 × 52 mm fixing centres.
- Screw terminal connections provide secure conductor termination.
- Self-extinguishing thermoplastic construction provides robust electrical insulation.
Key Features
- Ilme PLUSO series industrial socket outlet.
- 16 A rated current.
- 200–250 V AC rated voltage range.
- 230 V AC nominal application voltage.
- 3 pole / 2P+E configuration.
- Protective earth contact position at 6 h.
- 50 / 60 Hz operating frequency.
- IP67 ingress protection.
- Straight panel / flush-mounting configuration.
- 65 × 65 mm mounting flange.
- 52 × 52 mm socket fixing centres.
- Screw terminal electrical connections.
- Flange with anti-ageing gasket.
- Protective cover with locking ring and gasket.
- Insulating self-extinguishing thermoplastic construction.
- RAL 7035 grey body with RAL 5015 blue voltage identification.
- Manufactured in accordance with EN 60309-1 and EN 60309-2.
Reliable 230 V Panel-Mounted Power Connections
Industrial socket outlets such as the Ilme PEW1663PQ provide a secure fixed connection point for compatible industrial plugs used with machinery, portable equipment and electrical distribution systems. The 2P+E configuration provides two current-carrying conductors and protective earth, while the 6 h earth position and blue identification distinguish the socket for its specified 200–250 V AC voltage range.
The PLUSO series is designed for professional installations where dependable electrical connections, mechanical durability and environmental protection are important. The PEW1663PQ combines a compact 65 × 65 mm panel-mounted format, screw terminal connections, self-extinguishing thermoplastic construction and IP67 protection to provide reliable 230 V connectivity for demanding industrial installations.
Typical Applications
- 230 V industrial machinery and production equipment.
- Electrical panels and distribution equipment.
- Factory and workshop power systems.
- Machine building and OEM installations.
- Temporary and fixed industrial power distribution.
- Outdoor and demanding industrial electrical applications.
