Why Choose the Ilme PEW1664SVX ATEX Industrial Plug?

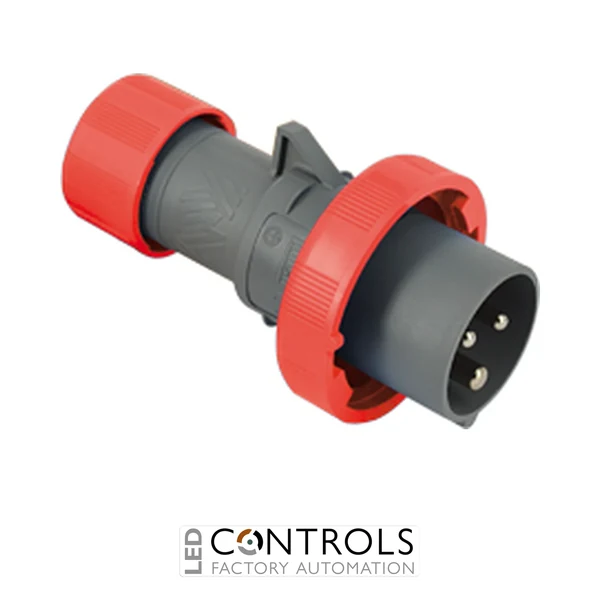

The Ilme PEW1664SVX is a robust 16 A ATEX industrial mobile plug designed for reliable three-phase power connections in environments where combustible dust may be present. Part of the Ilme PLUSO Ex series, this straight cable-mounted plug combines industrial IEC connectivity with ATEX-compliant construction for demanding machinery, processing and industrial power distribution applications.
The PEW1664SVX is compliant with ATEX EN 60079-0 and EN 60079-31 requirements for equipment intended for explosive dust atmospheres and carries the marking II 3D Ex tc IIIC T60 °C Dc. Its enclosure, insert and locking ring are manufactured from insulating, self-extinguishing thermoplastic material, while nickel-plated contacts and stainless steel insert fixing screws support dependable long-term industrial service.
With a rated current of 16 A and a rated voltage range of 380–415 V AC at 50 / 60 Hz, the PEW1664SVX is suitable for nominal 415 V AC three-phase applications. It uses a 3P+E / 4-pole configuration with the protective earth contact positioned at 6 h, while red voltage identification and IP66/IP67 protection provide easy identification and dependable environmental protection.
Key Advantages
- ATEX industrial plug designed for applications involving combustible dust atmospheres.
- Heavy-duty 16 A three-phase mobile plug.
- Suitable for 380–415 V AC industrial power systems.
- 3P+E / 4-pole configuration with protective earth connection.
- IP66/IP67 protection for demanding industrial environments.
- Wide operating temperature range from -40 to +100 °C.
- Nickel-plated contacts provide durable electrical connections.
- Self-extinguishing thermoplastic construction supports robust industrial service.
Key Features
- Ilme PLUSO Ex series ATEX industrial mobile plug.
- 16 A rated current.
- 380–415 V AC rated voltage range.
- 415 V AC nominal application voltage.
- 4 pole / 3P+E configuration.
- Protective earth contact position at 6 h.
- 50 / 60 Hz operating frequency.
- IP66/IP67 ingress protection.
- II 3D Ex tc IIIC T60 °C Dc ATEX marking.
- Suitable for designated explosive dust atmosphere applications.
- Straight mobile / cable-mounted configuration.
- Screw terminals with retained screws.
- Colour-coded cable gland.
- Locking ring with sealing gasket.
- Nickel-plated contacts as standard.
- Stainless steel insert fixing screws.
- Insulating self-extinguishing thermoplastic construction.
- RAL 7012 grey enclosure with red voltage identification.
- Manufactured in accordance with EN 60309-1 and EN 60309-2.
- Compliant with ATEX EN 60079-0 and EN 60079-31 for dust atmospheres.
ATEX Power Connections for Explosive Dust Atmospheres
The Ilme PLUSO Ex range is designed for industrial applications requiring robust IEC 60309 connectivity together with protection suitable for designated explosive dust atmospheres. The PEW1664SVX carries the II 3D Ex tc IIIC T60 °C Dc marking and is manufactured in accordance with relevant ATEX standards for dust protection, making it suitable for correctly engineered installations where combustible dust hazards have been identified.
For three-phase equipment, the 3P+E configuration provides three phase conductors and protective earth within a single connector. The PEW1664SVX combines a 6 h earth position, red voltage coding, nickel-plated contacts, retained screw terminals and IP66/IP67 protection to provide a dependable connection for demanding 380–415 V AC industrial applications.
Typical Applications
- ATEX-designated industrial areas involving combustible dust.
- Industrial processing and production machinery.
- Bulk material handling and conveying equipment.
- Dust-producing manufacturing and processing installations.
- Three-phase machinery and industrial power distribution.
- Industrial equipment requiring robust IP66/IP67 electrical connections.
