Why Choose the Ilme PEW1693PP Wall-Mounted Socket?

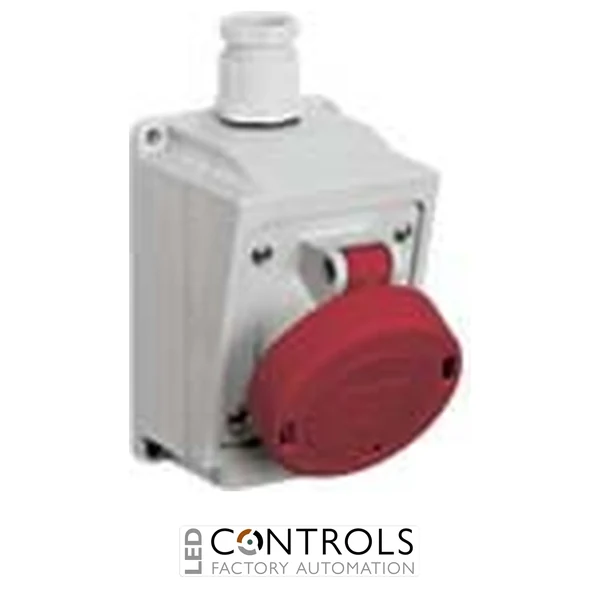

The Ilme PEW1693PP is a robust 16 A industrial wall-mounted socket outlet designed for reliable fixed power connections in industrial machinery, workshops, production facilities and electrical distribution systems. Part of the Ilme PLUSO series, this surface-mounted socket provides a durable connection point for compatible industrial plugs in demanding installations.
Designed in accordance with EN 60309-1 and EN 60309-2, the PEW1693PP uses insulating, self-extinguishing thermoplastic construction engineered for professional industrial service. Its IP67 protection rating provides a high level of protection against dust and water ingress when correctly installed and connected, making it suitable for demanding indoor and outdoor applications.
With a rated current of 16 A and a rated voltage range of 380–415 V AC at 50 / 60 Hz, the PEW1693PP is suitable for nominal 415 V AC applications. It uses a 2P+E / 3-pole configuration with the protective earth contact positioned at 9 h, while red voltage identification and a Pg 16 cable entry support straightforward installation and identification.
Key Advantages
- Robust 16 A industrial wall-mounted socket.
- Suitable for 380–415 V AC industrial power applications.
- 2P+E / 3-pole configuration with protective earth connection.
- IP67 protection rating for demanding industrial environments.
- Surface-mounted design provides a convenient fixed power connection point.
- Screw terminal connections provide dependable conductor termination.
- Pg 16 cable entry for fixed installation wiring.
- Self-extinguishing thermoplastic construction provides robust electrical insulation.
Key Features
- Ilme PLUSO series industrial wall-mounted socket outlet.
- 16 A rated current.
- 380–415 V AC rated voltage range.
- 415 V AC nominal application voltage.
- 3 pole / 2P+E configuration.
- Protective earth contact position at 9 h.
- 50 / 60 Hz operating frequency.
- IP67 ingress protection.
- Fixed wall / surface-mounting configuration.
- Screw terminal electrical connections.
- Pg 16 cable entry.
- Watertight protective cover with locking arrangement.
- Insulating self-extinguishing thermoplastic construction.
- Red voltage identification for the 380–415 V AC configuration.
- Manufactured in accordance with EN 60309-1 and EN 60309-2.
Reliable 415 V Wall-Mounted Power Connections
Industrial wall-mounted socket outlets such as the Ilme PEW1693PP provide a secure fixed connection point for compatible industrial plugs used with machinery, equipment and electrical distribution systems. The 2P+E configuration provides two current-carrying conductors and protective earth, while the 9 h earth position and red identification distinguish this specific 380–415 V AC connector configuration.
The PLUSO series is designed for professional installations where dependable electrical connections, mechanical durability and environmental protection are important. The PEW1693PP combines wall-mounted construction, screw terminals, a Pg 16 cable entry and IP67 protection to provide reliable connectivity for demanding industrial installations.
Typical Applications
- 415 V industrial machinery and production equipment.
- Factory and workshop power distribution.
- Fixed industrial electrical installations.
- Machine building and OEM equipment.
- Industrial maintenance and production areas.
- Outdoor and demanding industrial electrical applications.
