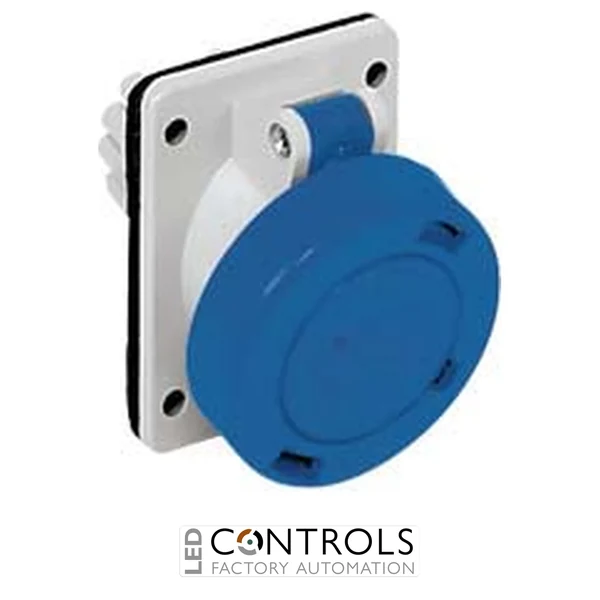

Why Choose the Ilme PEW1695PI 16 A 230 V 5 Pole IP67 Inclined Panel Socket?
The Ilme PEW1695PI is a robust 16 A inclined panel-mounted industrial socket designed for secure power connections in demanding industrial, commercial and automation environments. Part of the Ilme PLUSO industrial plug and socket range, this 5-pole socket provides a dependable connection for three-phase equipment requiring neutral and protective earth conductors.
Designed in accordance with EN 60309-1 and EN 60309-2, the PEW1695PI features a durable insulating thermoplastic construction, screw-terminal connections and an inclined flush-mounting design for convenient installation on electrical panels and enclosures. Its IP67 protection rating provides a high degree of resistance to dust and water when correctly installed and connected to a compatible mating plug.
With a rated current of 16 A and a 200–250 V AC, 50 / 60 Hz supply range, the PEW1695PI uses a 3P + N + E, 5-pole configuration with the protective earth contact positioned at 9 h. Its blue voltage identification, 90 × 100 mm mounting flange and angled connection format make it ideal for industrial machinery, distribution panels and factory equipment.
Key Advantages
- Professional 16 A inclined panel-mounted industrial socket for machinery and electrical installations.
- 200–250 V AC, 50 / 60 Hz rating for compatible industrial power systems.
- 5-pole 3P + N + E configuration for three-phase power with neutral and protective earth.
- IP67 protection for dependable operation in demanding industrial environments.
- Inclined connection direction helps provide convenient cable access at the panel.
- Durable self-extinguishing thermoplastic construction with secure screw-terminal connections.
Key Features
- Ilme PLUSO industrial socket series.
- 16 A rated current.
- 200–250 V AC operating voltage.
- 5 poles: 3P + N + E.
- 9 h protective earth position.
- 50 / 60 Hz operating frequency.
- IP67 degree of protection.
- Blue voltage identification.
- Screw-terminal electrical connections.
- Inclined panel / flush-mounting design.
- 90 × 100 mm mounting flange.
Reliable Panel-Mounted Industrial Power Connections
Industrial socket outlets such as the Ilme PEW1695PI provide a secure and standardised connection point for machinery, production equipment and power distribution systems. The defined pole arrangement and protective earth position help ensure connection with the appropriate industrial plug configuration while the neutral conductor supports equipment requiring a 3P + N + E supply.
The inclined panel-mounted format is particularly useful for switchgear, control panels and machinery enclosures where convenient plug access is required. Combined with its rugged thermoplastic construction, screw terminals and IP67 protection, the PEW1695PI provides a dependable connection solution for professional industrial installations.
Typical Applications
- Industrial machinery and production equipment.
- Electrical control and distribution panels.
- Factory and workshop power systems.
- Automation and machine-building installations.
- Processing and manufacturing equipment.
- Industrial enclosures requiring IP67 power connectivity.
