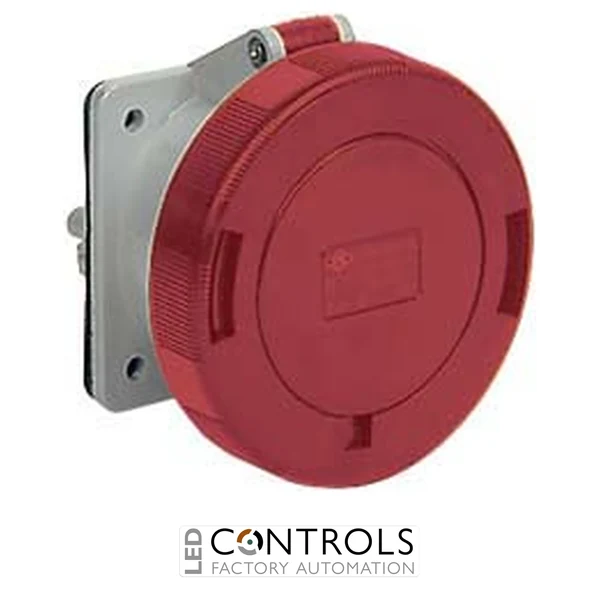

Why Choose the Ilme PEW3264PQ 32 A 415 V 4 Pole IP67 Panel-Mounted Straight Socket?
The Ilme PEW3264PQ is a robust 32 A panel-mounted straight industrial socket designed for reliable three-phase power connections in demanding industrial, commercial and automation environments. As part of the Ilme PLUSO industrial plug and socket series, this 4-pole socket provides a secure connection point for machinery, production equipment and electrical distribution systems requiring dependable high-current connectivity.
Designed in accordance with EN 60309-1 and EN 60309-2, the PEW3264PQ features an enclosure, insert and cover manufactured from insulating self-extinguishing thermoplastic material. Its straight flush-mounting design enables straightforward integration into electrical panels, switchgear and machinery enclosures, while its IP67 protection rating provides protection against dust and temporary immersion in water when correctly installed and connected to a compatible mating plug.
With a rated current of 32 A and an operating voltage range of 380–415 V AC at 50 / 60 Hz, the PEW3264PQ uses a 3P + E, 4-pole configuration with the protective earth contact positioned at 6 h. Its red voltage identification, straight insertion direction and 80 × 80 mm mounting flange make it ideal for three-phase industrial machinery, distribution panels and factory installations.
Key Advantages
- Professional 32 A straight panel-mounted industrial socket for fixed electrical installations.
- 380–415 V AC, 50 / 60 Hz rating suitable for standard three-phase industrial power systems.
- 4-pole 3P + E configuration with protective earth contact at 6 h.
- IP67 protection for dependable operation in challenging industrial environments.
- Straight flush-mounting format provides neat integration into panels, switchgear and machinery enclosures.
- Self-extinguishing thermoplastic construction with screw-terminal connections for robust industrial service.
Key Features
- Ilme PLUSO industrial socket series.
- 32 A rated current.
- 380–415 V AC operating voltage.
- 4 poles: 3P + E.
- 6 h protective earth position.
- 50 / 60 Hz operating frequency.
- IP67 degree of protection.
- Red voltage identification for 380–415 V applications.
- Screw-terminal electrical connections.
- Straight insertion direction and flush panel mounting.
- 80 × 80 mm mounting flange with 60 × 60 mm fixing centres.
Reliable Three-Phase Panel-Mounted Power Connections
Industrial socket outlets such as the Ilme PEW3264PQ provide a secure and standardised connection point for machinery and electrical equipment operating from three-phase power supplies. The defined 3P + E pole arrangement and 6 h protective earth position help ensure correct mating with compatible industrial plugs while distinguishing the connector from configurations intended for other voltage ranges.
The straight panel-mounted format is particularly suitable for control panels, switchgear, distribution equipment and machinery enclosures where a compact flush-mounted connection is required. Combined with its self-extinguishing thermoplastic construction, screw terminals, sealing arrangement and IP67 protection, the PEW3264PQ provides dependable connectivity for professional industrial installations.
Typical Applications
- Three-phase industrial machinery and production equipment.
- Electrical control and distribution panels.
- Factory and workshop power systems.
- Manufacturing and processing installations.
- Automation and machine-building systems.
- Industrial enclosures requiring IP67 three-phase connectivity.
