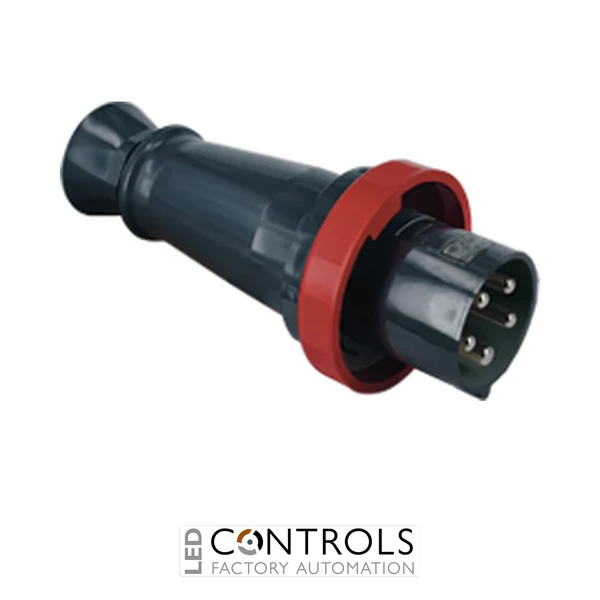

Why Choose the Ilme PEW6364SVX 63 A 415 V 4 Pole IP67 ATEX Plug?
The Ilme PEW6364SVX is a heavy-duty 63 A ATEX industrial plug designed for reliable three-phase power connections in industrial locations where combustible dust may create a potentially explosive atmosphere. Part of the Ilme PLUSO ATEX series, this straight mobile plug combines high-current capability with specialised construction for demanding industrial installations.
The PEW6364SVX is designed in accordance with EN 60309-1 and EN 60309-2 industrial connector requirements and ATEX standards EN 60079-0 and EN 60079-31 for combustible dust environments. Its enclosure, insert and locking ring are manufactured from insulating self-extinguishing thermoplastic material, with retained terminal screws, stainless steel insert-fixing screws and nickel-plated contacts as standard.
With a rated current of 63 A and an operating voltage range of 380–415 V AC at 50 / 60 Hz, the PEW6364SVX uses a 3P + E, 4-pole configuration with the protective earth contact positioned at 6 h. Its IP66/IP67 protection, red voltage identification and ATEX marking make it suitable for high-current three-phase connections in appropriate Zone 22 combustible dust applications.
Key Advantages
- Heavy-duty 63 A ATEX industrial plug for high-current three-phase applications.
- 380–415 V AC, 50 / 60 Hz rating suitable for nominal 415 V industrial systems.
- 4-pole 3P + E configuration with protective earth contact at 6 h.
- IP66/IP67 protection for demanding industrial operating conditions.
- ATEX II 3D classification for appropriate combustible dust environments.
- Nickel-plated contacts, retained terminal screws and self-extinguishing thermoplastic construction support reliable industrial service.
Key Features
- Ilme PLUSO ATEX series.
- 63 A rated current.
- 380–415 V AC operating voltage.
- 4 poles: 3P + E.
- 6 h protective earth position.
- 50 / 60 Hz operating frequency.
- IP66/IP67 degree of protection.
- ATEX marking: II 3D Ex tc IIIC T60 °C Dc IP66/IP67 X.
- Red voltage identification for 380–415 V applications.
- Nickel-plated contacts as standard.
- Straight cable-mounted mobile plug with cable-gland entry.
ATEX Connectivity for Combustible Dust Environments
The Ilme PEW6364SVX is specifically designed for industrial applications requiring electrical connectivity in appropriate combustible dust environments. Its II 3D Ex tc IIIC T60 °C Dc marking identifies equipment intended for relevant dust hazardous-area applications, while the IP66/IP67 enclosure protection helps prevent the ingress of dust and water when correctly assembled and connected.
The 3P + E configuration provides three phase contacts and protective earth for high-current equipment operating at 380–415 V AC. Combined with nickel-plated contacts, retained terminal screws, stainless steel insert-fixing screws and a wide operating temperature range, the PEW6364SVX provides a robust connection solution for suitable industrial processes where ATEX-certified dust protection is required.
Typical Applications
- Industrial installations with potentially explosive combustible dust atmospheres.
- Zone 22 machinery and electrical equipment where the product's ATEX classification is appropriate.
- Food, grain and bulk-material processing equipment.
- Industrial production and material-handling systems.
- High-current three-phase machinery requiring ATEX-compatible connectivity.
- Indoor and outdoor industrial applications requiring IP66/IP67 63 A 415 V connections.
