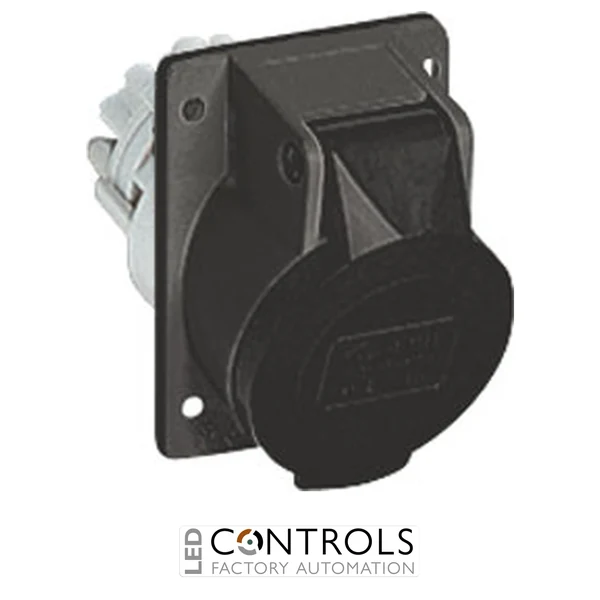

Why Choose the ILME PN1663PI Black Entertainment Inclined Socket?
The ILME PN1663PI is a professional 16 A inclined flush-mounting socket outlet developed for entertainment, stage, lighting and event power distribution applications. Part of ILME's specialist connectivity range for stage equipment, it combines standardised industrial electrical performance with a discreet RAL 9005 black finish suitable for installations where conventional brightly coloured industrial connectors may be visually intrusive.
The PN1663PI is designed for 200–250 V AC at 50/60 Hz and features a 2-pole + protective earth (2P+PE) configuration, giving three contacts in total. Its protective earth contact is positioned at 6 h, making it suitable for nominal 230 V AC single-phase supplies while maintaining the standardised EN 60309 connection arrangement.
An inclined flush-mounting design provides convenient cable connection from equipment panels and distribution assemblies, while the IP44 construction provides splash protection when correctly installed. The enclosure, insert and spring lid are manufactured from insulating, self-extinguishing thermoplastic material, with retained terminal screws and an anti-ageing flange gasket supporting dependable professional installation.
Key Advantages
- Purpose-designed entertainment and stage equipment socket with discreet black construction.
- 16 A, 200–250 V AC rating suitable for nominal 230 V AC supplies.
- 2P+PE / 3-contact configuration provides line, neutral and protective earth connectivity.
- Inclined flush-mounting format provides convenient cable connection at equipment panels.
- IP44 protection provides splash resistance when correctly installed.
- Self-extinguishing thermoplastic construction supports professional electrical installations.
- Compact 64 × 82 mm flange simplifies integration into suitable panels and distribution equipment.
Key Features
- ILME PN series socket outlet for entertainment and stage equipment.
- 16 A rated current.
- 200–250 V AC rated voltage.
- Suitable for nominal 230 V AC supplies.
- 50/60 Hz operating frequency.
- 2 poles + PE (3-contact) configuration.
- 6 h protective earth contact position.
- IP44 degree of protection.
- Inclined flush-mounting construction.
- RAL 9005 black enclosure and spring lid.
- Insulating, self-extinguishing thermoplastic construction.
- Spring-loaded protective lid.
- Flange with anti-ageing gasket.
- Retained screw terminals for conductor connection.
- Designed in accordance with EN 60309-1 and EN 60309-2.
Professional Power Connectivity for Stage and Entertainment Equipment
Entertainment and stage installations often require industrial-grade electrical connections without the highly visible appearance of conventional industrial socket outlets. The ILME PN1663PI addresses this requirement with a RAL 9005 black enclosure and lid while retaining a standard 16 A, 200–250 V AC, 2P+PE electrical configuration for dependable professional power distribution.
Its inclined flush-mounting arrangement is particularly useful for flight cases, distribution panels, stage equipment and fixed entertainment installations where convenient plug access is important. The IP44 construction, self-extinguishing thermoplastic material, retained screw terminals and protective spring lid make the PN1663PI a practical choice for professional audio, lighting and event infrastructure.
Typical Applications
- Stage and theatre power distribution.
- Professional audio equipment.
- Entertainment lighting systems.
- Touring and event power distribution panels.
- Flight cases and portable distribution equipment.
- Broadcast and studio installations.
- Concert venues and performance spaces.
- AV equipment racks and control systems.
