Why Choose the Ilme RDF2D1.5 HNM Female Crimp Contact?

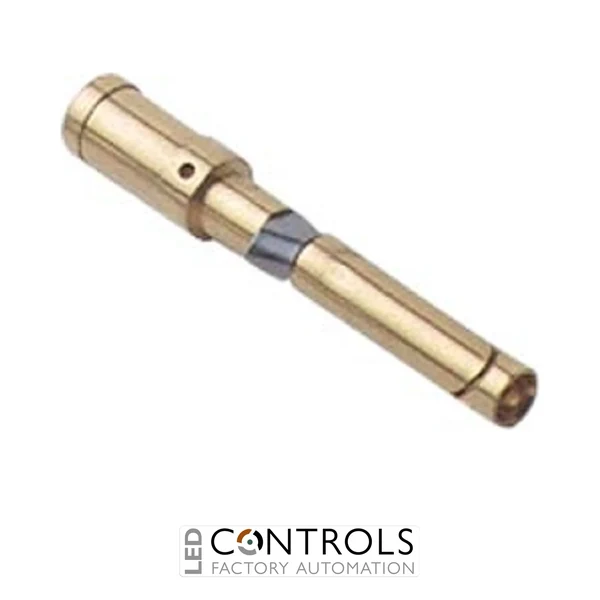

The Ilme RDF2D1.5, also referenced as RDF2D 1.5, is a precision female crimp contact designed for compatible Ilme multipole connector inserts. Part of Ilme's HNM (High Number of Matings) contact range, it is intended for applications where connector assemblies may be connected and disconnected repeatedly during their service life.
Rated at 10 A, the RDF2D1.5 is specifically designed for a 1.5 mm² conductor, corresponding to AWG 16. Its turned contact construction and gold-plated contact surface provide a high-quality electrical interface for compatible Ilme crimp connector systems.
For correct conductor preparation, Ilme specifies an 8 mm stripping length for the 1.5 mm² version, with a conductor slot diameter of 1.8 mm. Ilme recommends using its approved crimping tools to achieve the specified mechanical and electrical connection quality.
Key Advantages
- HNM High Number of Matings contact for compatible frequently mated connector systems.
- 10 A rated current for industrial signal and power connections.
- Precisely matched to 1.5 mm² / AWG 16 conductors.
- Turned gold-plated contact construction.
- Female contact format for compatible Ilme crimp inserts.
- Crimp termination provides a secure conductor connection without screw terminals.
- Part of Ilme's established industrial multipole connector contact system.
Key Features
- Ilme RDF2D HNM crimp contact.
- Female contact.
- Turned contact construction.
- Gold-plated contact surface.
- 10 A rated current.
- 1.5 mm² conductor cross-section.
- AWG 16 conductor size.
- 1.8 mm conductor slot diameter.
- 8 mm conductor stripping length.
- Designed for crimp termination.
- HNM version for High Number of Matings applications.
Gold-Plated HNM Contact for Repeated Connector Mating
The RDF2D1.5 belongs to Ilme's HNM contact family, developed for compatible connector applications requiring a high number of mating operations. Its turned, gold-plated female contact construction provides the electrical interface between the 1.5 mm² conductor and the corresponding male contact installed in the mating connector assembly.
Correct crimp preparation is important for reliable performance. For the RDF2D1.5, the 1.5 mm² conductor should be prepared to the specified 8 mm stripping length, and Ilme recommends using approved crimping equipment suitable for its RD contact system.
Typical Applications
- Ilme multipole industrial connector assemblies.
- HNM High Number of Matings connector systems.
- Industrial machinery and automation equipment.
- Control panel and machine interconnections.
- Production equipment requiring removable electrical connections.
- Industrial signal and power conductor connections.
- Maintenance-intensive equipment with repeatedly mated connectors.
