Why Choose the Carlo Gavazzi RK4MT Spring Plug?

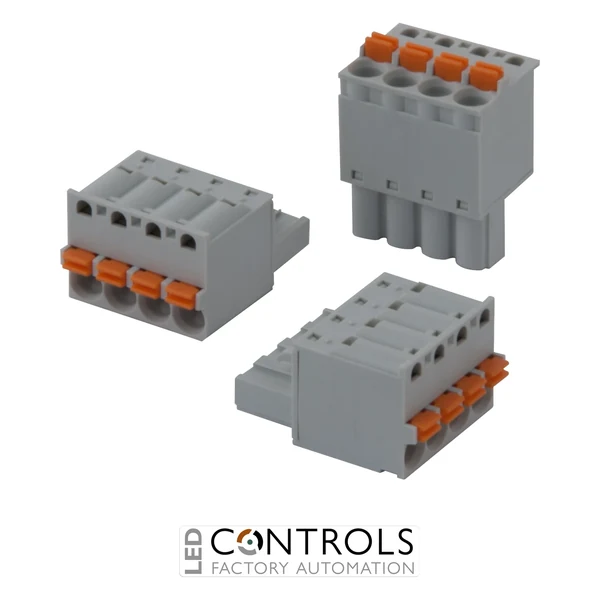

The Carlo Gavazzi RK4MT is a 4-way, 4-pole spring-loaded terminal plug designed specifically for compatible Carlo Gavazzi RK series solid state relays. Featuring convenient top-entry wiring and spring-clamp termination, it provides a fast and dependable method of connecting control wiring to RKD2..P dual-control solid state relays.
The RK4MT uses a 5.08 mm pitch pluggable terminal arrangement and accepts copper conductors from 0.5–2.5 mm² or 26–12 AWG. Its spring connection eliminates the need to tighten terminal screws, helping simplify installation and maintenance while maintaining reliable conductor retention in industrial control applications.
Designed as a dedicated accessory for the Carlo Gavazzi RKD2..P series, the RK4MT provides four positions for dual-control connections and uses top cable entry for straightforward panel wiring. The plug is supplied in a pack of 10 pieces, making it suitable for machine builders, panel builders and maintenance teams installing multiple RK series solid state relays.
Key Advantages
- Purpose-designed 4-way, 4-pole spring plug for Carlo Gavazzi RK series relays.
- Compatible with RKD2..P dual-control solid state relays.
- Spring-clamp termination enables fast wiring without terminal screws.
- Top-entry cable connection simplifies wiring inside control panels.
- Accepts conductors from 0.5–2.5 mm².
- 5.08 mm terminal pitch matches the compatible RK pluggable control interface.
- Pluggable design simplifies relay installation, replacement and maintenance.
- Supplied in a convenient pack of 10 pieces.
Key Features
- Carlo Gavazzi RK series accessory.
- 4-way, 4-pole configuration.
- Spring-loaded terminal connection.
- Top cable entry.
- 5.08 mm connection pitch.
- 0.5–2.5 mm² conductor range.
- 26–12 AWG conductor range.
- Suitable for solid and stranded copper conductors.
- Compatible with flexible conductors with or without end sleeves.
- Compatible with twin ferrules within the appropriate conductor range.
- Designed for RKD2..P dual-control solid state relays.
- Bulk pack containing 10 plugs.
Fast and Reliable Solid State Relay Connections
Pluggable spring terminals such as the Carlo Gavazzi RK4MT simplify the connection of control wiring to industrial solid state relays. The spring-clamp mechanism securely retains the conductor without requiring a screw connection, helping reduce installation time while providing a consistent connection for industrial automation and control systems.
The RK4MT is specifically intended for the four-position pluggable control interface found on compatible RKD2..P dual-control relays. Its 5.08 mm pitch, top-entry configuration and broad 0.5–2.5 mm² conductor range make it a practical accessory for control-panel wiring where fast installation and straightforward relay replacement are important.
Typical Applications
- Carlo Gavazzi RKD2..P solid state relay installations.
- Industrial control panels and switchboards.
- Machine control and factory automation systems.
- Heating and process control equipment.
- Industrial switching systems.
- OEM machinery and equipment manufacturing.
- Solid state relay maintenance and replacement.
