Why Choose the ILME RSHF06 HNM SQUICH Female Insert?

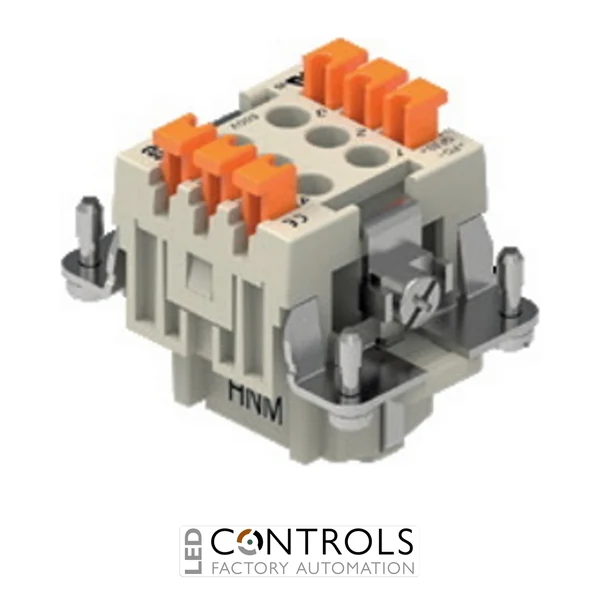

The ILME RSHF06 is a high-performance female heavy-duty connector insert designed for industrial applications requiring frequent connection and disconnection. Part of the ILME RSH HNM High Number of Matings series, it combines six power or control poles plus protective earth with tool-free SQUICH® spring terminal technology and durable gold-plated contacts.
The RSHF06 uses ILME's SQUICH® spring terminal connection, allowing conductors to be terminated without conventional screw terminals or crimp contacts. It accepts conductors from 0.14–2.5 mm² or AWG 26–14, while actuator buttons provide a fast and practical method of securing each conductor during connector assembly.
Rated at 16 A, 500 V with a 6 kV impulse withstand voltage, the RSHF06 has a 6P+PE configuration and fits ILME size 44.27 compatible enclosures. Its HNM construction uses turned gold-plated contacts and provides a mechanical life of at least 10,000 mating cycles, making it particularly suitable for machinery, test equipment and other installations requiring repeated connector operation.
Key Advantages
- High-performance 6 poles + PE female industrial connector insert.
- 16 A, 500 V rating for industrial power and control connections.
- HNM High Number of Matings design supports at least 10,000 mating cycles.
- Tool-free SQUICH® spring terminal technology simplifies conductor termination.
- Accepts conductors from 0.14–2.5 mm² or AWG 26–14.
- Turned gold-plated contacts provide dependable performance over repeated mating cycles.
- Wide -40 °C to +125 °C operating temperature range.
- Fits compatible ILME size 44.27 enclosures.
Key Features
- ILME RSH HNM connector insert series.
- Female insert with 6 poles + PE.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- SQUICH® tool-free spring terminal connection.
- 0.14–2.5 mm² conductor capacity.
- AWG 26–14 wire compatibility.
- Built-in turned copper-alloy contacts with gold plating.
- Mechanical durability of at least 10,000 mating cycles.
- Self-extinguishing polycarbonate insert rated UL 94 V-0.
- IP20 protection without enclosure, with higher protection available when installed in a suitable ILME enclosure.
Reliable Connections for High-Mating-Cycle Applications
Industrial connectors used on machinery, test equipment and removable electrical assemblies can undergo substantially more connection cycles than conventional fixed installations. The ILME RSHF06 is specifically engineered for these applications, with its HNM High Number of Matings construction providing a mechanical life of at least 10,000 mating cycles when used with the appropriate HNM connector system.
The integrated SQUICH® terminals also simplify wiring by allowing stripped conductors to be inserted directly into the terminal and secured using the actuator button. Combined with gold-plated contacts, a wide operating temperature range and size 44.27 compatibility, this makes the RSHF06 a versatile female insert for demanding industrial connection systems.
Typical Applications
- Industrial machinery requiring frequently disconnected electrical connections.
- Automated production and manufacturing equipment.
- Test benches and electrical test systems.
- Machine tooling and interchangeable equipment modules.
- Robotics and factory automation systems.
- Industrial power and control connections.
- Maintenance equipment requiring repeated connector mating.
- Heavy-duty ILME HNM connector assemblies.
