Why Choose the ILME RX03TM HNM Male Modular Frame?

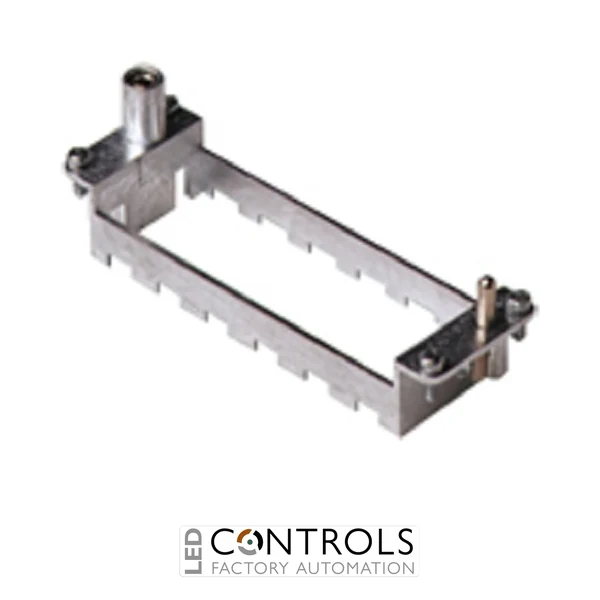

The ILME RX03TM is a robust MIXO HNM modular frame for three modular units, designed for heavy-duty industrial connector systems where repeated connection and disconnection is required. Part of the ILME HNM High Number of Matings range, it provides secure support for compatible MIXO modular inserts in machinery, automation and industrial equipment.
The RX03TM is the TM frame type, conventionally used on the hood side of a MIXO connector assembly. It accommodates three MIXO modular units and provides the mechanical support, polarisation and retention required to build a configurable modular connector using compatible power, signal, data or pneumatic modules.
Designed for the ILME size 57.27 connector format, the RX03TM pairs with the corresponding RX03TF frame to create a three-module HNM connector assembly. Its high-mating-cycle design makes it particularly suitable for equipment that must be regularly connected, disconnected, changed or serviced while retaining dependable mechanical alignment.
Key Advantages
- Purpose-designed HNM High Number of Matings modular frame.
- Accommodates three ILME MIXO modular units.
- TM frame type for the hood side of compatible connector assemblies.
- Pairs with the corresponding RX03TF frame.
- Supports high-mating-cycle industrial connector applications.
- Allows different compatible MIXO modules to be combined within one connector.
- Integrated polarisation helps maintain correct connector orientation.
- Suitable for mixed power, control, signal, data and pneumatic configurations using appropriate MIXO modules.
Key Features
- ILME MIXO HNM series.
- Three-module capacity.
- TM frame configuration.
- Conventionally installed on the connector hood side.
- Designed for size 57.27 compatible enclosures.
- Compatible with ILME MIXO modular inserts.
- Designed for frequent mating and unmating applications.
- Supports mixed compatible male and female MIXO modules within a modular assembly.
- Mechanical polarisation assists correct mating.
- Protective earth provision for the connector frame system.
- Suitable for modular heavy-duty industrial connector assemblies.
Flexible Modular Connections for High-Mating-Cycle Applications
ILME MIXO technology enables different connection functions to be combined inside one heavy-duty connector enclosure. The RX03TM provides positions for three modular units, allowing designers to select compatible MIXO modules according to the power, control, signal, data or pneumatic connections required by the equipment.
The HNM design is particularly valuable on machinery and equipment where connectors are routinely disconnected for tooling changes, maintenance, testing or equipment replacement. Used with the corresponding RX03TF frame and suitable ILME components, the RX03TM provides the mechanical framework for a durable and configurable three-module connector assembly.
Typical Applications
- ILME MIXO HNM modular connector assemblies.
- Industrial machinery with frequently disconnected interfaces.
- Factory automation and production equipment.
- Machine tools and interchangeable tooling systems.
- Industrial test benches and test equipment.
- Robotics and automated manufacturing systems.
- Mixed power, signal and data connector assemblies.
- Modular industrial equipment requiring configurable connectivity.
