Why Choose the Ilme TAVH10G32 Hygienic Thermoplastic Hood?

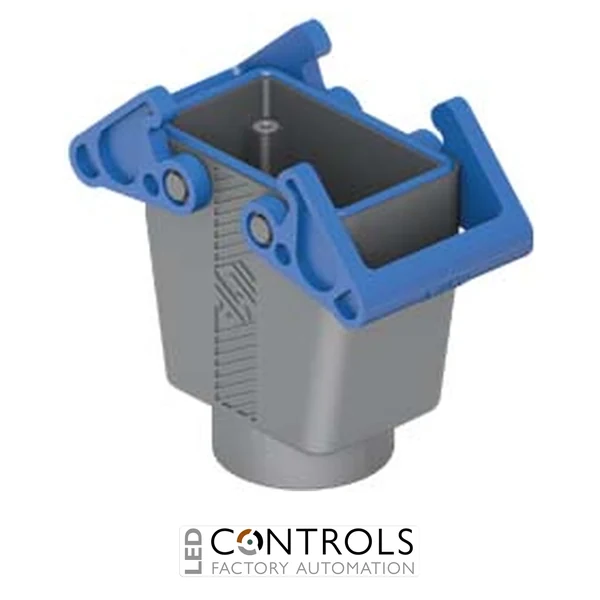

The Ilme TAVH10G32 is a durable hygienic thermoplastic industrial connector hood designed for protected electrical connections in food processing, packaging, automation and other cleanliness-sensitive industrial environments. As part of the Ilme T-TYPE / H series, this size 57.27 hood combines polypropylene construction with reliable sealing and a secure double-lever locking system.
Designed for cable-mounted connector assemblies, the TAVH10G32 features two locking levers and a top-entry M32 cable connection. Its thermoplastic construction provides a practical alternative to conventional metal connector housings where corrosion resistance, hygiene and straightforward handling are important.
With IP66 / IP69 protection, an operating temperature range of -40 °C to +70 °C and an HNBR sealing gasket, the TAVH10G32 is well suited to demanding industrial environments and machinery subject to regular cleaning or washdown procedures.
Key Advantages
- Purpose-designed thermoplastic connector hood for hygienic applications.
- IP66 / IP69 protection for demanding industrial and washdown environments.
- M32 top cable entry for straightforward cable routing.
- Secure double-lever locking system for dependable connector mating.
- Durable polypropylene construction with HNBR sealing gasket.
- Wide -40 °C to +70 °C operating temperature range.
Key Features
- Ilme T-TYPE / H series.
- Size 57.27 connector hood.
- High-construction thermoplastic enclosure.
- Two locking levers.
- M32 top cable entry.
- Polypropylene housing construction.
- HNBR gasket for reliable sealing.
- IP66 / IP69 degree of protection.
- Designed for applications including the food processing sector.
Reliable Connectivity for Hygienic Production Environments
Industrial connector hoods protect electrical connector inserts and cable terminations while providing a secure mechanical interface between mating connector components. In food production and other hygienic applications, suitable enclosure materials and effective environmental sealing are particularly important where machinery can be exposed to moisture, contaminants and frequent cleaning.
The Ilme T-TYPE / H range provides thermoplastic enclosure solutions for these demanding applications. The TAVH10G32 combines polypropylene construction, an HNBR gasket, a double-lever locking arrangement and high ingress protection, helping maintain dependable electrical connections across industrial production and automation equipment.
Typical Applications
- Food and beverage processing machinery.
- Packaging and production equipment.
- Hygienic industrial production lines.
- Washdown-area machinery and automation systems.
- Industrial conveyors and material handling equipment.
- OEM machinery requiring protected multipole electrical connections.
