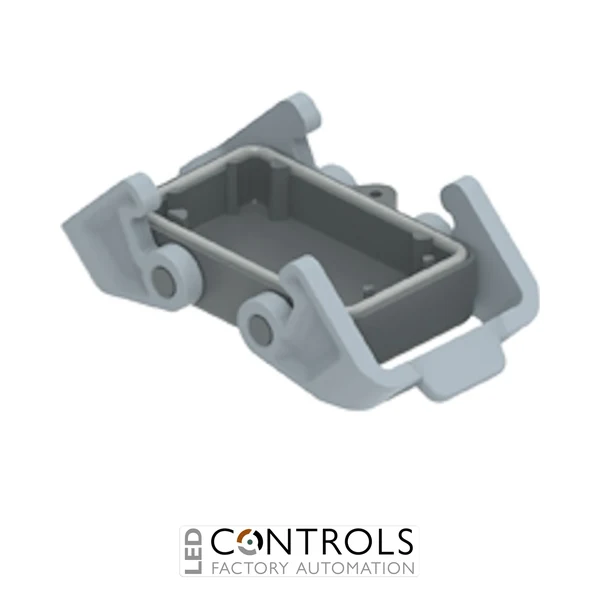

Why Choose the Ilme THCW10G Thermoplastic Cover?
The Ilme THCW10G is a robust thermoplastic protection cover for industrial multipole connectors, specifically designed for connector installations operating in aggressive environments. Part of the specialised Ilme T-TYPE / W series, it combines polypropylene construction, an FKM fluoroelastomer gasket and a secure double-lever closure to protect compatible industrial connector interfaces.
Designed for size 57.27 connector enclosures, the THCW10G features two thermoplastic locking levers for secure mating with compatible Ilme connector components. The cover also incorporates a retaining loop, helping keep it attached to the installation when removed during operation or maintenance.
With IP66 / IP69 protection when correctly fitted and locked, an operating temperature range of -40 °C to +90 °C and an FKM gasket, the THCW10G is particularly suited to chemical processing, industrial machinery and other applications where connectors may encounter aggressive environmental conditions.
Key Advantages
- Specialised thermoplastic connector cover for aggressive environments.
- Size 57.27 format for compatible Ilme multipole connector enclosures.
- Two locking levers provide secure mechanical closure.
- FKM fluoroelastomer gasket provides enhanced resistance in demanding environments.
- IP66 / IP69 protection when correctly fitted and locked with compatible components.
- Integrated retaining loop helps keep the cover attached to the connector installation.
Key Features
- Ilme T-TYPE / W series for aggressive environments.
- Thermoplastic connector protection cover.
- Size 57.27 connector format.
- 57 × 27 mm insert mounting size.
- Two locking levers / double latch.
- Integrated retaining loop.
- Polypropylene body construction.
- FKM fluoroelastomer sealing gasket.
- IP66 / IP69 degree of protection.
- -40 °C to +90 °C operating temperature range.
Reliable Connector Protection for Aggressive Environments
Industrial connector covers protect exposed mating interfaces whenever machinery or equipment is disconnected, helping prevent moisture, dust and other contaminants from reaching connector components. In aggressive industrial environments, suitable enclosure materials and sealing compounds are particularly important for maintaining dependable connector protection.
The Ilme T-TYPE / W series is engineered specifically for these demanding conditions. The THCW10G combines a polypropylene thermoplastic body with an FKM gasket, double-lever locking system and high ingress protection, providing a dependable solution for compatible size 57.27 multipole connector installations.
Typical Applications
- Chemical and process industry equipment.
- Industrial machinery operating in aggressive environments.
- Production and processing equipment.
- Industrial automation and control systems.
- Multipole power, signal and control connections.
- OEM machinery requiring enhanced connector protection.
