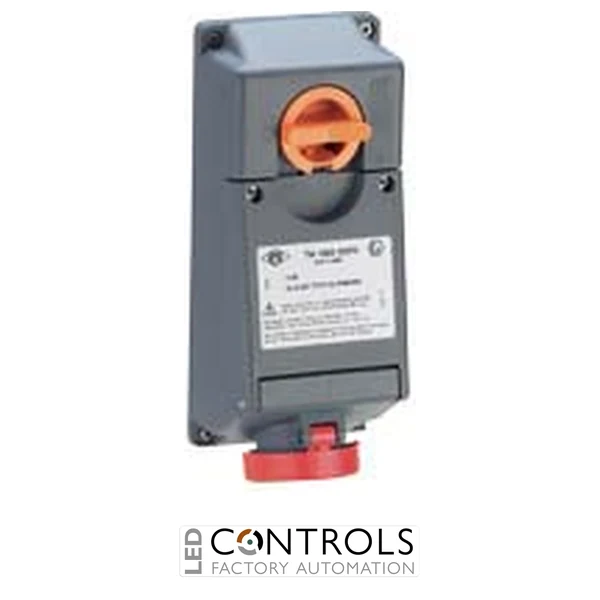

Ilme TM1665SSPX is a 16 A 200/346-240/415 V AC 3P + N + PE TM-Ex ATEX interlocked switched socket outlet with a 6 h earth position, IP66 / IP67 protection and no fuse carrier or base box.
£125.09
The Ilme TM1665SSPX is a robust 16 A ATEX interlocked switched socket outlet designed for three-phase industrial power distribution in areas where combustible dust may be present. Part of the specialised Ilme TM-Ex range, it combines industrial socket connectivity, mechanical interlocking and ATEX-compliant construction for demanding hazardous-area installations.
The TM1665SSPX features a 3P + N + PE (5-pole) configuration with the protective earth contact at the 6 h position. Its rated voltage range is 200/346-240/415 V AC at 50 / 60 Hz, making it suitable for nominal 400 V and 415 V three-phase systems requiring neutral. Red identification corresponds to this IEC industrial socket voltage configuration.
Supplied without a fuse carrier and without a base box, the TM1665SSPX is designed for installation with a suitable Ilme TM-Ex single or multiple enclosure. It provides IP66 / IP67 protection, IK10 impact resistance and an II 3D, Ex tc IIIC T65 °C Dc classification for suitable combustible-dust applications when correctly installed.
Industrial interlocked switched socket outlets combine a power socket with a mechanically linked switch so that connection and isolation follow a controlled sequence. On the TM1665SSPX, the switch cannot be turned on unless a compatible plug is inserted, while the plug cannot be removed with the switch in the ON position. This arrangement helps prevent connection or disconnection while the socket contacts are energised.
The 3P + N + PE arrangement provides three phases, neutral and protective earth, making the TM1665SSPX suitable for equipment requiring a five-pole three-phase supply. Its II 3D, Ex tc IIIC T65 °C Dc marking and IP66 / IP67 construction support appropriately designed installations in industrial locations where combustible dust may be present.
| Manufacturer | Ilme |
|---|---|
| Series | TM-Ex |
| Model | TM1665SSPX |
| Alternative part number | TM 1665 SSPX |
| Product type | ATEX interlocked switched socket outlet |
| Rated current | 16 A |
| Rated voltage | 200/346-240/415 V AC |
| Nominal application voltage | 400 / 415 V AC |
| Frequency | 50 / 60 Hz |
| Poles | 3P + N + PE (5 pole) |
| Earth contact position | 6 h |
| Voltage identification colour | Red |
| ATEX category | II 3D |
| Ex classification | Ex tc IIIC T65 °C Dc |
| Hazardous-area application | Combustible-dust environments |
| Fuse carrier | None |
| Base box | Not included |
| Material | Insulating self-extinguishing thermoplastic |
| Enclosure colour | RAL 7012 grey |
| Protection rating | IP66 / IP67 |
| Impact protection | IK10 |
| Impact resistance | 20 J |
| Switch thermal current | Ith 32 A |
| Reference standards | EN 60309-1, EN 60309-2, EN 60309-4 |
| ATEX standards | EN 60079-0, EN 60079-31 |
| Weight | approx. 1.11 kg |
| Country of origin | Italy |
| EAN | 8015747107235 |
The TM1665SSPX is rated for 200/346-240/415 V AC at 50 / 60 Hz, making it suitable for nominal 400 V and 415 V three-phase industrial systems requiring a neutral connection.
The TM1665SSPX has a 3P + N + PE configuration, providing three phase contacts, neutral and protective earth for a total of five poles. The protective earth position is 6 h.
Yes. The TM1665SSPX is part of the Ilme TM-Ex range and carries an II 3D, Ex tc IIIC T65 °C Dc classification for suitable combustible-dust applications when correctly installed.
No. The TM1665SSPX is supplied without a base box and must be combined with a suitable Ilme TM-Ex single or multiple enclosure and appropriately rated installation accessories.
The TM1665SSPX provides IP66 / IP67 protection and IK10 impact resistance. The completed installation must use suitable compatible enclosures, cable entries and accessories to maintain the required protection and hazardous-area compliance.
Ilme TM-Ex interlocked switched socket outlets combine controlled industrial power connection, ATEX-compatible construction and robust mechanical protection for three-phase electrical installations in demanding environments where combustible dust may be present.
