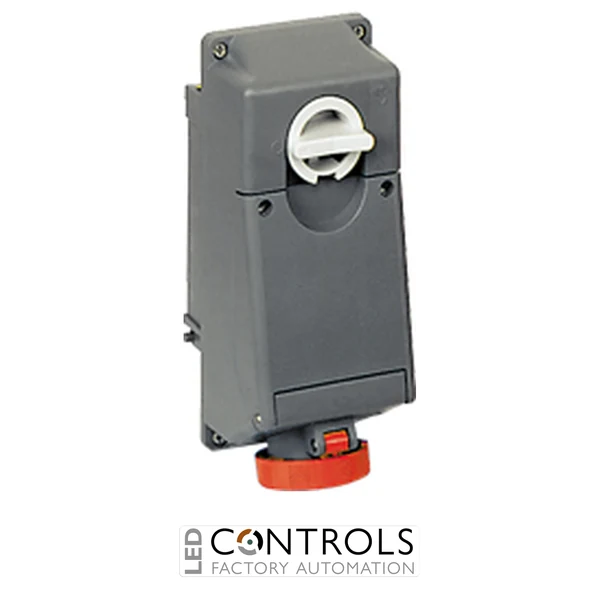

Ilme TM3264KSSP is a compact 32 A 4-pole 3P+E IP66/IP67 interlocked switched industrial socket-outlet for 380–415 V AC three-phase supplies, supplied without a fuse carrier or backbox.
£96.89
The Ilme TM3264KSSP is a compact and robust 32 A interlocked switched industrial socket-outlet designed for safe three-phase power distribution in demanding industrial environments. Part of the Ilme TM series, this compact 32K model combines a 4-pole 3P+E configuration with mechanical switch interlocking and is supplied without a backbox for integration into compatible Ilme TM enclosure systems.
Designed for 380–415 V AC at 50/60 Hz applications, including nominal 400 V and 415 V industrial supplies, the TM3264KSSP uses a red IEC industrial socket with the protective earth contact positioned at 6 h. The interlocked design coordinates operation of the switch and socket, helping prevent unsafe connection or disconnection of equipment while the circuit is energised.
The TM3264KSSP provides IP66/IP67 protection and IK10 impact resistance, making it suitable for harsh industrial environments where resistance to dust, water and mechanical impact is important. Its compact format uses a 114 × 255 mm fixing distance and is designed for assembly in compatible Ilme single or multiple boxes, providing a flexible solution for industrial power distribution panels and socket assemblies.
Interlocked switched socket-outlets provide an important safety advantage in industrial electrical installations by coordinating operation of the switch with the plug and socket connection. The Ilme TM3264KSSP incorporates mechanical interlocking to help prevent equipment from being connected or disconnected under unsafe energised conditions, providing a dependable local power connection for industrial machinery and equipment.
The compact 32K construction makes the TM3264KSSP particularly suitable for modular distribution assemblies where installation space is limited. Because it is supplied without a base box, it can be installed into compatible Ilme TM single or multiple boxes, allowing engineers and panel builders to configure industrial socket distribution systems according to the requirements of each installation.
| Manufacturer | Ilme |
|---|---|
| Series | TM..SSP/KSSP |
| Model | TM3264KSSP |
| Alternative part number | TM 3264KSSP |
| Product type | Interlocked switched industrial socket-outlet without backbox |
| Rated current | 32 A |
| Nominal application voltage | 400–415 V AC |
| Rated voltage range | 380–415 V AC |
| Frequency | 50 / 60 Hz |
| Number of poles | 4 pole, 3P+E |
| Earth contact position | 6 h |
| Protection rating | IP66/IP67 |
| Impact resistance | IK10 |
| Flammability rating | UL 94 V-2 |
| Operating temperature | -25 °C to +40 °C |
| Colour | RAL 7012 grey / RAL 3000 red |
| Format | Compact 32K |
| Fixing distance | 114 × 255 mm |
| Fuse carrier | Not included |
| Backbox / base box | Not included |
| Mounting | Assembly in compatible Ilme single or multiple boxes |
| Reference standards | EN 60309-1, EN 60309-2 and EN 60309-4 |
| EAN | 8015747126120 |
The TM3264KSSP is a 32 A interlocked switched industrial socket-outlet designed for three-phase power distribution in factories, workshops, industrial machinery and other demanding electrical installations.
The TM3264KSSP is rated at 32 A and 380–415 V AC, making it suitable for common 400 V and 415 V three-phase industrial power systems.
The TM3264KSSP has a 4-pole 3P+E configuration, providing three phase contacts plus protective earth, with the earth contact positioned at 6 h.
The Ilme TM3264KSSP provides an IP66/IP67 degree of protection and an IK10 impact rating, making it suitable for demanding industrial environments when correctly installed.
No. The TM3264KSSP is supplied without a backbox or base box and is designed for assembly in compatible Ilme TM single or multiple boxes using its 114 × 255 mm fixing arrangement.
Ilme TM interlocked switched socket-outlets combine robust industrial construction, mechanical interlocking and high ingress protection with flexible modular installation, providing dependable power connections for demanding three-phase industrial distribution systems.
