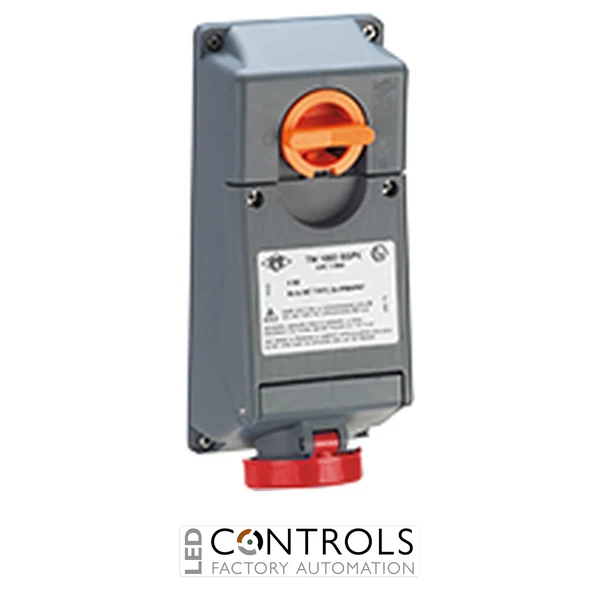

Ilme TM3264KSSPX is a 32 A 4-pole 3P+E ATEX interlocked switched industrial socket-outlet for 380–415 V AC three-phase supplies with IP66/IP67 protection, direct connection and no base box.
£123.23
The Ilme TM3264KSSPX is a robust 32 A ATEX interlocked switched industrial socket-outlet designed for safe three-phase power distribution in industrial environments where potentially explosive dust atmospheres may occur. Part of the Ilme TM-Ex series, this compact model combines a 4-pole 3P+E configuration with mechanical switch interlocking and direct electrical connection.
Designed for 380–415 V AC at 50/60 Hz applications, including nominal 400 V and 415 V industrial supplies, the TM3264KSSPX uses a red IEC industrial socket with the protective earth contact positioned at 6 h. Its mechanical interlock prevents the switch from being turned to the ON position unless a compatible plug is inserted and prevents the plug from being withdrawn while the switch remains ON, improving operational safety.
The TM3264KSSPX provides an IP66/IP67 degree of protection and IK10 impact resistance up to 20 J. It carries the II 3D Ex tc IIIC T65 °C Dc IP66/IP67 U X marking for suitable explosive dust applications and is supplied without a base box, allowing it to be installed in compatible Ilme TM-Ex single or multiple enclosures.
The Ilme TM-Ex range is engineered for industrial electrical installations where potentially explosive dust atmospheres may occur. The TM3264KSSPX combines ATEX construction with high ingress protection, robust impact resistance and an industrial 32 A three-phase connection, providing a dependable power outlet when incorporated into a correctly designed hazardous-area installation.
The mechanical interlock provides an important safety function by preventing the switch from being turned on until the plug is inserted and preventing removal of the plug while the switch remains on. As the TM3264KSSPX is supplied without a base box, it can be combined with compatible Ilme TM-Ex single or multiple enclosures to create modular industrial distribution assemblies.
| Manufacturer | Ilme |
|---|---|
| Series | TM-Ex |
| Model | TM3264KSSPX |
| Alternative part number | TM 3264 KSSPX |
| Product type | ATEX interlocked switched industrial socket-outlet without base box |
| Rated current | 32 A |
| Nominal application voltage | 400–415 V AC |
| Rated voltage range | 380–415 V AC |
| Frequency | 50 / 60 Hz |
| Number of poles | 4 pole, 3P+E |
| Earth contact position | 6 h |
| Protection rating | IP66/IP67 |
| Impact resistance | IK10 / 20 J |
| ATEX classification | II 3D |
| Explosion protection marking | Ex tc IIIC T65 °C Dc IP66/IP67 U X |
| Socket colour | Red |
| Fixing base | 255 × 114 mm |
| Connection type | Direct connection |
| Flexible conductor capacity | 2.5–6 mm² |
| Rigid or stranded conductor capacity | 2.5–10 mm² |
| Terminal tightening torque | 1.2 Nm |
| Fuse carrier | Not included |
| Backbox / base box | Not included |
| Mounting | Assembly in compatible Ilme TM-Ex single or multiple boxes |
| Standards | EN 60079-0, EN 60079-31, EN 60309-1, EN 60309-2 and EN 60309-4 |
The TM3264KSSPX is a 32 A ATEX interlocked switched industrial socket-outlet designed for three-phase power distribution in suitable industrial environments where potentially explosive dust atmospheres may occur.
The TM3264KSSPX is rated at 32 A and 380–415 V AC at 50/60 Hz, making it suitable for common 400 V and 415 V three-phase industrial supplies.
The TM3264KSSPX has a 4-pole 3P+E configuration, providing three phase contacts plus protective earth, with the earth contact positioned at 6 h.
The TM3264KSSPX carries the marking II 3D Ex tc IIIC T65 °C Dc IP66/IP67 U X for appropriate industrial installations involving potentially explosive dust atmospheres.
No. The TM3264KSSPX is supplied without a backbox or base box and must be installed in a compatible Ilme TM-Ex single or multiple enclosure as part of the complete assembly.
Ilme TM-Ex interlocked switched socket-outlets combine ATEX-compliant construction, mechanical interlocking, high ingress protection and robust impact resistance to provide dependable three-phase power connections for correctly designed installations in demanding industrial dust environments.
