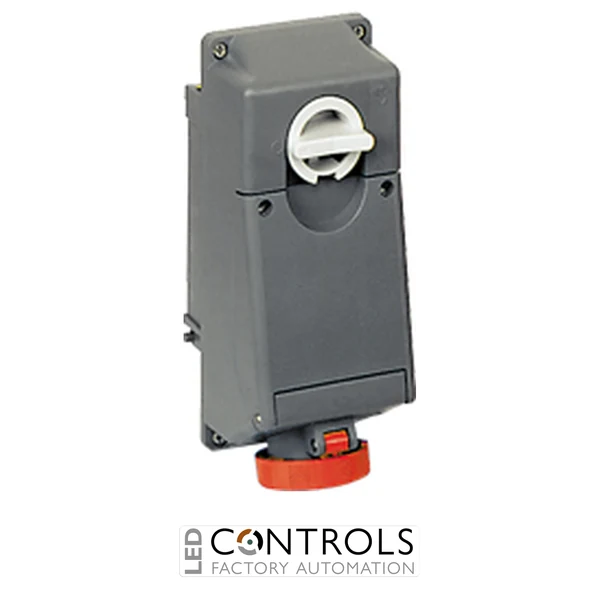

Ilme TM3264SSP is a 32 A 380–415 V 3P+PE interlocked switched socket-outlet with IP66/IP67 protection, supplied without a fuse-carrier or base box for industrial power distribution installations.
£211.11
The Ilme TM3264SSP is a robust 32 A interlocked switched socket-outlet designed for safe and reliable three-phase power distribution in industrial environments. Part of the Ilme TM series, it provides a 3P+PE, 380–415 V AC connection with a 6 h clock position and red IEC colour coding.
The TM3264SSP incorporates a double mechanical interlock that prevents the switch from being turned to the ON position unless a compatible plug is correctly inserted and prevents the plug from being withdrawn while the switch is ON. Its operating handle can also be padlocked in both the O and I positions, supporting controlled operation and electrical isolation in industrial installations.
Designed without a base box and without a fuse-carrier, the TM3264SSP is intended for assembly into a suitable Ilme single or multiple box. It offers IP66/IP67 protection, IK10 impact resistance and a durable self-extinguishing thermoplastic construction, making it suitable for factories, workshops, machinery installations and other demanding industrial power distribution applications.
Interlocked switched socket-outlets improve operational safety by coordinating the switching mechanism with plug insertion and removal. The Ilme TM3264SSP uses a double mechanical interlock so that the switch cannot be turned ON without a correctly inserted plug and the plug cannot be withdrawn while the switch remains in the ON position, reducing the risk of connecting or disconnecting industrial equipment under load.
The TM3264SSP is supplied without a base box, allowing it to be incorporated into a suitable Ilme single or multiple enclosure according to the installation requirements. Its IP66/IP67 protection, IK10 impact resistance and industrial thermoplastic construction make it a dependable solution for three-phase power connection points exposed to demanding operating conditions.
| Manufacturer | Ilme |
|---|---|
| Series | TM..SSP/KSSP |
| Model | TM3264SSP |
| Alternative part number | TM 3264 SSP |
| Product type | Interlocked switched socket-outlet |
| Rated current | 32 A |
| Rated voltage | 380–415 V AC |
| Frequency | 50 / 60 Hz |
| Number of poles | 3P+PE |
| Number of connection poles | 4 |
| Clock position | 6 h |
| IEC colour | Red |
| Protection rating | IP66/IP67 |
| Impact resistance | IK10 |
| Operating temperature | -25 to +40 °C |
| UL 94 flammability rating | V-2 |
| Enclosure material | Insulating thermoplastic |
| Colour | RAL 7012 grey / RAL 3000 red |
| Fixing size | 144 × 370 mm fixing distance |
| Base box | Not included |
| Fuse-carrier | Not included |
| Installation | For assembly in compatible single or multiple boxes |
| Reference standards | EN 60309-1, EN 60309-2 and EN 60309-4 |
| EAN | 8015747214766 |
The TM3264SSP is an interlocked switched socket-outlet designed to provide a safe 32 A three-phase electrical connection for industrial machinery, equipment and power distribution installations.
The TM3264SSP is rated at 32 A and 380–415 V AC at 50 / 60 Hz.
The socket has a 3P+PE configuration, consisting of three phase poles plus a protective earth connection, giving four connection poles in total.
No. The TM3264SSP is supplied without a base box and is intended to be installed in a compatible Ilme single or multiple box.
The TM3264SSP has an IP66/IP67 degree of protection when correctly installed with suitable compatible components, providing strong protection against dust and water ingress.
Its double mechanical interlock prevents the switch from being turned ON unless a compatible plug is correctly inserted and prevents the plug from being withdrawn while the switch remains ON.
Ilme TM series interlocked switched socket-outlets combine robust industrial construction, mechanical interlocking and high ingress protection to provide dependable power connection and isolation for machinery, manufacturing facilities and industrial electrical distribution systems.
