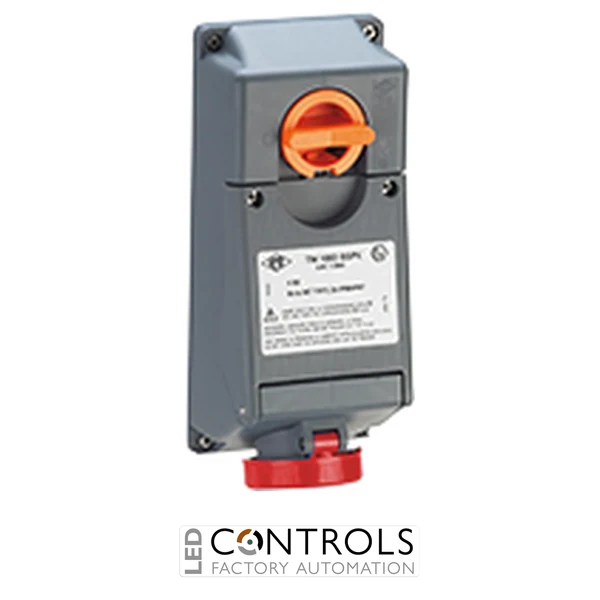

ILME TM3265KSSPX is a 32 A, 200/346–240/415 V AC, 5-pole 3P+N+PE ATEX interlocked switched socket-outlet with IP66 / IP67 protection and direct connection, supplied without a base box.
£132.81
The ILME TM3265KSSPX is a heavy-duty ATEX interlocked switched socket-outlet designed for reliable three-phase electrical connections in industrial environments where combustible dust may be present. Part of the specialised ILME TM-EX series, it combines a 32 A industrial socket with direct connection and an interlocking mechanism for controlled connection and disconnection of electrical equipment.
Designed for 200/346–240/415 V AC systems, the TM3265KSSPX features a 5-pole 3P+N+PE configuration with a 6h protective-earth position and red voltage identification. The interlocked design helps prevent the plug from being inserted or withdrawn while the socket is switched on, improving operational safety in demanding industrial installations.
The TM3265KSSPX is supplied without a base box, making it suitable for incorporation into compatible ILME modular and set-mounted assemblies. It provides IP66 / IP67 ingress protection when correctly installed and carries the ATEX marking II 3D Ex tc IIIC T65 °C Dc IP66/IP67 X for suitable Zone 22 combustible-dust applications.
ATEX interlocked switched socket-outlets such as the ILME TM3265KSSPX provide controlled industrial power connections in locations where combustible dust can create a potentially explosive atmosphere. The interlocking arrangement helps prevent connection or disconnection while the socket is energised, supporting safer operation of machinery and portable electrical equipment.
The TM-EX series is designed in accordance with ATEX requirements for dust environments. With its II 3D Ex tc IIIC T65 °C Dc classification and IP66 / IP67 enclosure protection, the TM3265KSSPX is intended for appropriate Zone 22 installations when incorporated and installed in accordance with the manufacturer's requirements and applicable hazardous-area regulations.
| Manufacturer | ILME |
|---|---|
| Series | TM-EX |
| Model | TM3265KSSPX |
| Manufacturer part number | TM 3265KSSPX |
| Product type | ATEX interlocked switched socket-outlet |
| Rated current | 32 A |
| Rated voltage | 200/346–240/415 V AC |
| Nominal voltage | 415 V AC |
| Number of poles | 5 |
| Pole configuration | 3P+N+PE |
| Earth-contact position | 6h |
| Voltage identification colour | Red |
| Connection type | Direct connection |
| Protection rating | IP66 / IP67 |
| ATEX category | II 3D |
| Explosion protection marking | Ex tc IIIC T65 °C Dc IP66/IP67 X |
| Hazardous area application | Zone 22 combustible dust |
| Base box | Not included |
| ATEX standards | EN 60079-0 and EN 60079-31 |
| EAN | 8015747143318 |
| Country of origin | Italy |
The ILME TM3265KSSPX is a 32 A ATEX interlocked switched socket-outlet designed for three-phase industrial power connections in suitable environments where combustible dust may be present.
The TM3265KSSPX is rated for 200/346–240/415 V AC and has a 5-pole 3P+N+PE configuration with the protective-earth contact in the 6h position.
The socket carries the marking II 3D Ex tc IIIC T65 °C Dc IP66/IP67 X, making it suitable for appropriate Zone 22 combustible-dust applications when correctly installed.
The TM3265KSSPX provides IP66 / IP67 ingress protection when correctly installed as part of a compatible assembly, providing a high level of protection against dust and water ingress.
No. The TM3265KSSPX is supplied without a base or back box and is intended for installation with the appropriate compatible ILME mounting components.
ILME TM-EX interlocked switched socket-outlets provide robust industrial power connections for suitable combustible-dust environments, combining mechanical interlocking, high ingress protection and ATEX-compliant construction for demanding industrial installations.
