Why Choose the Ilme TMAP06L25 Thermoplastic Surface-Mounting Housing?

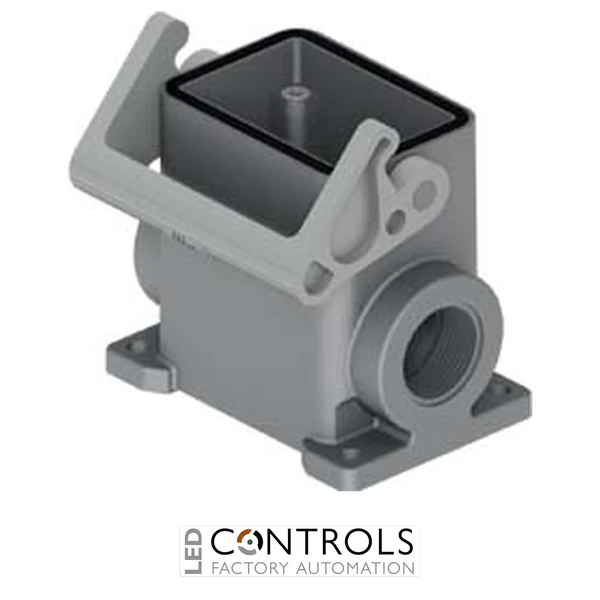

The Ilme TMAP06L25 is a compact T-TYPE thermoplastic surface-mounting housing designed to protect compatible Ilme multipole connector inserts in industrial machinery, automation and electrical equipment. Featuring a single locking lever and Ilme size 44.27, it provides a durable fixed mounting point for detachable industrial connector assemblies.
The TMAP06L25 features an M25 threaded cable entry for connection of a suitable cable gland or cable-entry accessory. Its size 44.27 format corresponds to an insert centre distance of 44 × 27 mm, allowing it to accept compatible Ilme inserts from the corresponding enclosure size while maintaining a compact installation footprint.
Manufactured from robust insulating thermoplastic, the TMAP06L25 is particularly useful where corrosion resistance, electrical insulation and low enclosure weight are desirable. When correctly assembled, coupled and locked with compatible Ilme components, the T-TYPE enclosure system provides IP65 protection for dependable industrial power, control and signal connections.
Key Advantages
- Compact thermoplastic surface-mounting housing for industrial multipole connectors.
- Single-lever locking system provides quick and secure connector coupling.
- M25 threaded cable entry for a suitable cable gland or entry accessory.
- Standard Ilme size 44.27 for compatible multipole inserts.
- IP65 protection when correctly assembled, coupled and locked.
- Insulating thermoplastic construction provides excellent corrosion resistance.
- Fixed surface-mounting format is ideal for machinery, panels and equipment.
- Compatible with corresponding Ilme hoods featuring the appropriate locking peg arrangement.
Key Features
- Ilme T-TYPE insulating enclosure series.
- Thermoplastic surface-mounting housing.
- 1 locking lever.
- Size 44.27.
- 44 × 27 mm insert centre distance.
- M25 threaded cable entry.
- Designed for fixed surface mounting.
- IP65 degree of protection when correctly coupled and locked.
- Insulating thermoplastic construction.
- Corrosion-resistant alternative to conventional metal connector housings.
- Suitable for compatible Ilme multipole connector inserts.
- Designed for industrial power, control and signal connections.
Compact Fixed Housing for Industrial Multipole Connections
Surface-mounting connector housings provide a fixed termination point on machinery, equipment and electrical panels while allowing the mating cable connector to be quickly connected and disconnected. The Ilme TMAP06L25 combines this functionality with an insulating thermoplastic enclosure and a compact 44.27 format, making it well suited to space-conscious industrial installations.
The single locking lever secures the compatible mating hood in position and helps maintain the enclosure's ingress protection when the connector is correctly assembled. Its M25 threaded entry provides a practical route for incoming wiring, allowing a suitable cable gland to be selected according to the cable and installation requirements.
Typical Applications
- Industrial multipole connector assemblies.
- Machinery and equipment connections.
- Control panels and automation systems.
- Factory production equipment.
- Motor and machine wiring.
- Industrial power, control and signal circuits.
- OEM machinery and electrical equipment.
