Why Choose the TE Connectivity BJS5D-20 1SNA177651R0500 20-Pole Jumper Bar?

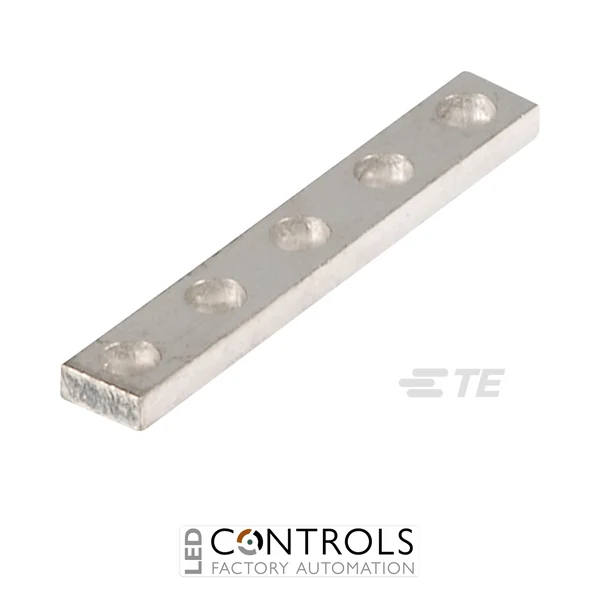

The TE Connectivity BJS5D-20 1SNA177651R0500 is a 20-pole jumper bar designed for electrical bridging across compatible Entrelec SNA double-deck terminal blocks. With a 5 mm spacing, this conducting accessory provides an efficient method of distributing a common electrical potential across multiple adjacent terminal positions in high-density industrial control and automation assemblies.
Designed for compatible MA2.5/5.D1 and MA2.5/5.D2 terminal blocks, the BJS5D-20 provides bridging across up to 20 terminal positions. The jumper is supplied as a perforated bar without captive screws or spacers and is installed using the appropriate fastening kits, giving panel builders flexibility when configuring the required common-potential connections.
The 1SNA177651R0500 has a rated main-circuit current of 24 A, a 5 mm pitch and a net weight of approximately 3 g. Its compatibility with Entrelec double-deck terminals makes it particularly useful for compact control cabinets where high connection density and efficient potential distribution are required.
Key Advantages
- Provides 20-pole common-potential bridging across compatible terminal positions.
- 24 A rated main-circuit current for industrial electrical applications.
- Compact 5 mm terminal spacing for high-density terminal assemblies.
- Designed for compatible MA2.5/5.D1 and MA2.5/5.D2 double-deck terminals.
- Helps reduce individual bridging wires and simplify repetitive panel wiring.
- Perforated jumper-bar construction provides flexibility when configuring compatible terminal assemblies.
Key Features
- TE Connectivity / Entrelec BJS5D-20 jumper bar.
- Part of the Entrelec SNA terminal accessory range.
- 20-pole configuration.
- 5 mm spacing.
- 24 A rated current.
- Designed for double-deck terminal block applications.
- Perforated jumper bar without captive screw and spacer.
- Installed using the appropriate fastening kits.
- Suitable for MA2.5/5.D1 and MA2.5/5.D2 terminal blocks.
- Manufacturer part number 1SNA177651R0500.
High-Density Bridging for Double-Deck Terminal Blocks
Double-deck terminal blocks provide two connection levels within a compact footprint, making them particularly useful where control-panel space is limited. When multiple terminals need to share a common electrical potential, a dedicated jumper bar can reduce external wiring and provide a more organised method of distributing the required connection across the terminal assembly.
The BJS5D-20 provides up to 20 bridged positions at 5 mm spacing for compatible MA2.5/5.D1 and MA2.5/5.D2 terminals. With a 24 A rated current and screw-mounted perforated construction, it provides a practical solution for common-potential distribution in new installations and modifications to existing Entrelec SNA terminal assemblies.
Typical Applications
- Common-potential bridging across compatible double-deck terminal blocks.
- MA2.5/5.D1 and MA2.5/5.D2 terminal assemblies.
- High-density industrial electrical control panels.
- Automation and process-control cabinets.
- Machine-building and OEM electrical systems.
- Maintenance, modification and expansion of compatible Entrelec SNA installations.
