Why Choose the WAGO 209-191 Separator for Ex e/Ex i Applications?

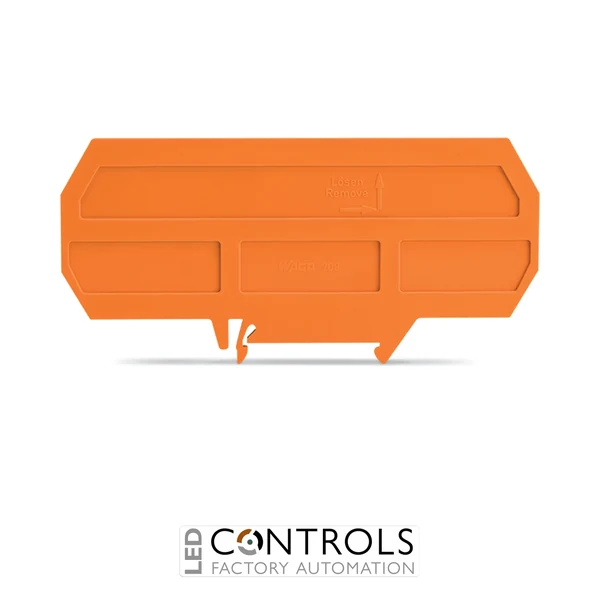

The WAGO 209-191 is an orange separator for Ex e/Ex i applications, designed to provide clear physical separation within compatible WAGO rail-mounted terminal block assemblies. Its distinctive orange colour and large profile make it particularly suitable for separating and identifying intrinsically safe Ex i circuits from other terminal groups in hazardous-area control and instrumentation installations.
Measuring 3 mm thick and 120 mm long, the separator provides a substantial insulating barrier between adjacent terminal groups. Its snap-in construction allows it to be incorporated directly into compatible terminal assemblies, helping panel builders maintain structured circuit separation without introducing a separate mounting system.
The 209-191 is manufactured from polyamide insulating material with a UL 94 V-0 flammability classification. It measures approximately 3 × 57.3 × 120 mm, weighs around 12.94 g and is manufactured in Germany, providing a purpose-designed WAGO accessory for industrial and hazardous-area terminal installations.
Key Advantages
- Purpose-designed separator for Ex e/Ex i applications.
- 3 mm thickness provides substantial physical separation between terminal groups.
- 120 mm length provides an extended separating profile within terminal assemblies.
- Bright orange colour provides clear visual identification of separated circuit sections.
- Snap-in construction supports straightforward installation in compatible assemblies.
- Polyamide insulation with a UL 94 V-0 flammability classification.
Key Features
- WAGO rail-mounted terminal block accessory.
- Designed specifically as an Ex e/Ex i separator.
- 3 mm nominal thickness.
- 120 mm length.
- Approximately 57.3 mm high.
- Orange for prominent visual differentiation.
- Manufactured from polyamide.
- UL 94 V-0 flammability classification.
- Snap-in installation.
- Suitable for compatible DIN rail terminal block assemblies.
Clear Separation for Ex e and Ex i Terminal Assemblies
Terminal installations associated with hazardous-area equipment can require clear physical and visual distinction between different circuit groups. The WAGO 209-191 provides a purpose-designed separator for Ex e and Ex i applications, with its orange construction making the separation point readily visible during installation, commissioning and maintenance.
At 3 mm thick and 120 mm long, the separator creates a prominent insulating division within compatible terminal assemblies. Its snap-in design and flame-retardant polyamide construction make it a practical accessory for organised industrial control and instrumentation installations where Ex e/Ex i circuit separation is required.
Typical Applications
- Ex e and Ex i terminal block assemblies.
- Intrinsically safe instrumentation circuits.
- Hazardous-area control panels.
- Process automation and instrumentation systems.
- Industrial DIN rail terminal assemblies.
- Control and distribution cabinets requiring clearly separated circuit groups.
