Why Choose the IMO CCS4/10 Push-In Cross Connector?

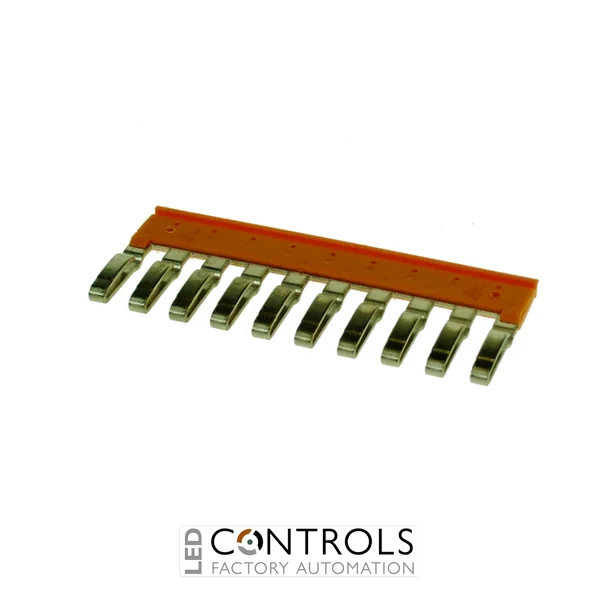

The IMO CCS4/10 is a 10-way push-in cross connector, also known as a jumper bar or comb connection, designed for compatible 4 mm² push-fit and spring-clamp DIN rail terminal blocks. It provides a simple method of electrically bridging adjacent terminals to distribute a common potential within industrial control panels, machinery and automation systems.
Instead of installing individual jumper wires between terminals, the CCS4/10 pushes directly into the designated cross-connection points of compatible terminal blocks. Its 10-pole configuration allows up to ten adjacent positions to be interconnected, helping reduce wiring work while maintaining a compact and organised terminal assembly.
The CCS4/10 forms part of IMO's CCS range of insulated push-in cross connectors and is specified for 4 mm² terminals. The connector can also be cut to the required length where fewer than ten interconnected positions are required, giving panel builders flexibility when configuring common-potential groups.
Key Advantages
- 10-way cross connector for electrically bridging adjacent compatible terminal blocks.
- Designed for 4 mm² push-fit and spring-clamp terminal systems.
- Push-in installation avoids individual jumper wires between terminal positions.
- Provides efficient common-potential distribution across up to ten terminals.
- Insulated construction for integration into compatible terminal assemblies.
- Can be cut to the required number of positions for flexible circuit configuration.
- Helps reduce wiring time and maintain neat, space-efficient control-panel assemblies.
Key Features
- IMO CCS series cross connector / jumper bar.
- 10-pole / 10-way configuration.
- Designed for 4 mm² terminals.
- Push-in cross-connection method.
- Suitable for compatible push-fit and spring-clamp DIN rail terminals.
- Insulated: Yes.
- Suitable for creating common-potential terminal groups.
- Can be shortened where fewer cross-connected positions are required.
Reliable Common-Potential Distribution for 4 mm² Terminals
Cross connectors provide a convenient alternative to manually wiring jumpers between adjacent terminal blocks. By inserting the CCS4/10 into the designated cross-connection points of compatible 4 mm² terminals, installers can establish a common electrical potential across as many as ten terminal positions while reducing additional conductors and wiring connections.
The push-in design makes the CCS4/10 particularly practical for control-panel and machine-building applications where multiple terminals need to share the same potential. Where the full ten positions are not required, the jumper bar can be cut to length, allowing the terminal group to be configured for the specific circuit layout.
Typical Applications
- Common-potential distribution across DIN rail terminal blocks.
- Industrial control-panel wiring.
- Factory automation and machine-control systems.
- Machine-building electrical assemblies.
- Power, control and signal distribution circuits.
- Compatible IMO push-fit and spring-clamp terminal installations.
