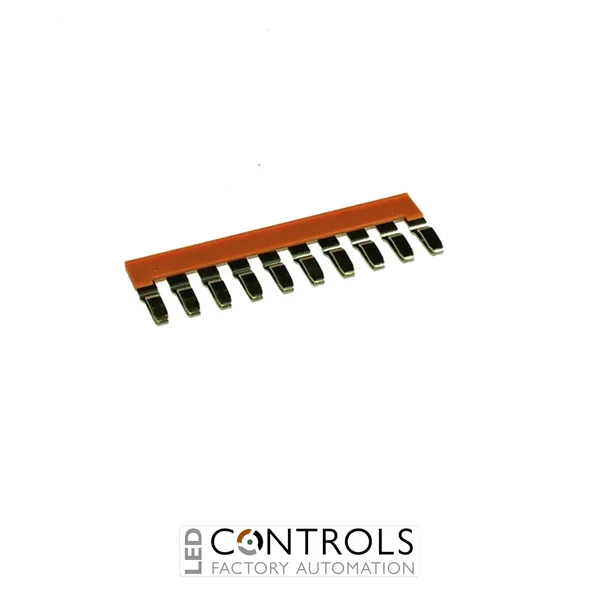

Why Choose the IMO CCS6/10 Cross Connector?
The IMO CCS6/10 is a practical and reliable 10-way push-in cross connector designed for electrically bridging compatible IMO push-fit and spring-clamp DIN rail terminal blocks. Developed as part of the IMO terminal block accessory range, it provides a convenient method of distributing a common electrical potential across multiple adjacent terminals in control panels and industrial electrical assemblies.
Designed for use with 6 mm² terminal blocks, the CCS6/10 provides 10 connection positions and installs directly into the cross-connection points of compatible terminals. Its push-in format simplifies installation and eliminates the need to individually wire every terminal when several circuits require a common connection.
The CCS6/10 is specifically listed by IMO for use with the PF6 push-fit terminal and is also suitable for compatible 6 mm² IMO push-fit and spring-clamp terminal arrangements. The connector can be cut down where fewer poles are required, providing flexibility when assembling distribution circuits, control panels and machinery wiring systems.
Key Advantages
- Provides 10-way cross connection between compatible terminal blocks.
- Designed for 6 mm² IMO push-fit and spring-clamp terminals.
- Push-in installation supports fast and straightforward panel assembly.
- Reduces the need for individual jumper wires between adjacent terminals.
- Can be cut to the required number of poles for flexible circuit layouts.
- Ideal for distributing a common electrical potential across terminal groups.
Key Features
- IMO terminal block cross connector.
- 10-way configuration.
- Designed for 6 mm² terminals.
- Push-in connection format.
- Compatible with IMO PF6 push-fit terminal blocks.
- Suitable for compatible push-fit and spring-clamp DIN rail terminals.
- Jumper bar can be cut to length where fewer connection positions are required.
- Designed for compact electrical panel and control cabinet wiring.
Efficient Terminal Cross-Connection for Control Panels
Cross connectors provide an efficient way to electrically link adjacent terminal blocks that need to share the same potential. Instead of installing separate jumper wires between individual terminals, the IMO CCS6/10 can bridge up to 10 compatible terminal positions through their dedicated cross-connection points, helping create cleaner and more organised panel wiring.
The push-in design is particularly useful for production panels, machinery and industrial automation assemblies where installation speed and consistent wiring are important. Its cuttable construction also allows the 10-way connector to be divided to suit smaller terminal groups, giving panel builders flexibility when configuring power distribution and control circuits.
Typical Applications
- Electrical control panels and switchgear assemblies.
- Industrial automation cabinets.
- Machine control and OEM equipment.
- Common-potential distribution between terminal blocks.
- Power and control circuit wiring.
- DIN rail terminal block assemblies.
