Frequently Asked Questions
What is the ABB 2CDE601101R2905?
The ABB 2CDE601101R2905 is an EPD24-TB-101-0.5A electronic protection device for selective overcurrent protection of 24 V DC load circuits.
What is the rated current of the ABB 2CDE601101R2905?
The ABB 2CDE601101R2905 has a rated current of 0.5 A and is designed for 24 V DC load circuits.
What voltage range does the ABB EPD24-TB-101-0.5A support?
The EPD24-TB-101-0.5A has a rated voltage of 24 V DC and an operational voltage range of 18–32 V DC.
What type of protection does the ABB 2CDE601101R2905 provide?
The device uses active electronic current limitation to detect overloads and short circuits and selectively disconnect the affected 24 V DC load circuit.
How is the ABB 2CDE601101R2905 mounted?

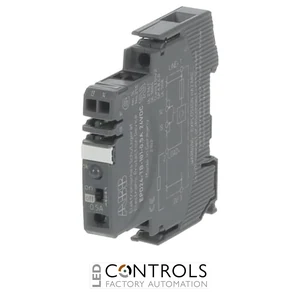

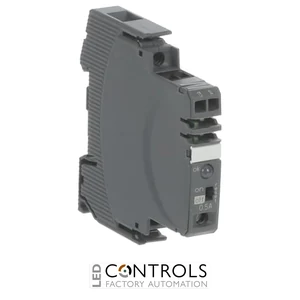

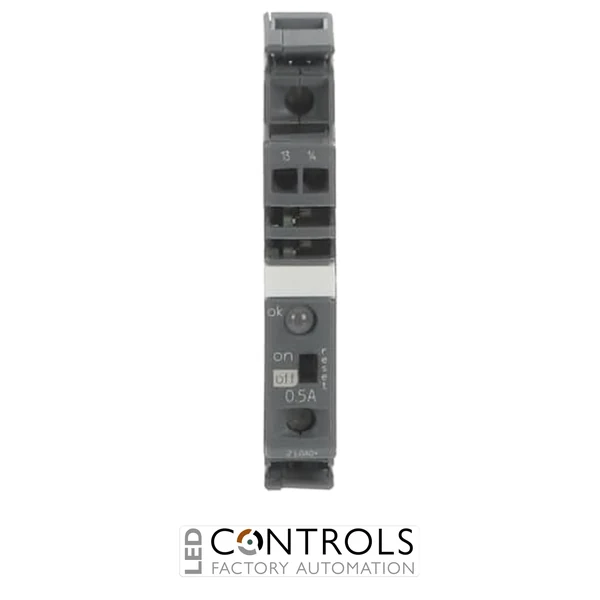

The ABB 2CDE601101R2905 is a compact DIN-rail-mounted module with a width of only 12.5 mm and screw-clamp terminals.
Trusted ABB EPD24 Protection for Industrial Applications
The ABB 2CDE601101R2905 combines selective 24 V DC overcurrent protection, active current limitation, diagnostic indication and compact DIN-rail mounting in a single-channel 0.5 A electronic protection device. Its narrow 12.5 mm format makes it suitable for space-efficient industrial automation and control-panel applications.
{
