Frequently Asked Questions

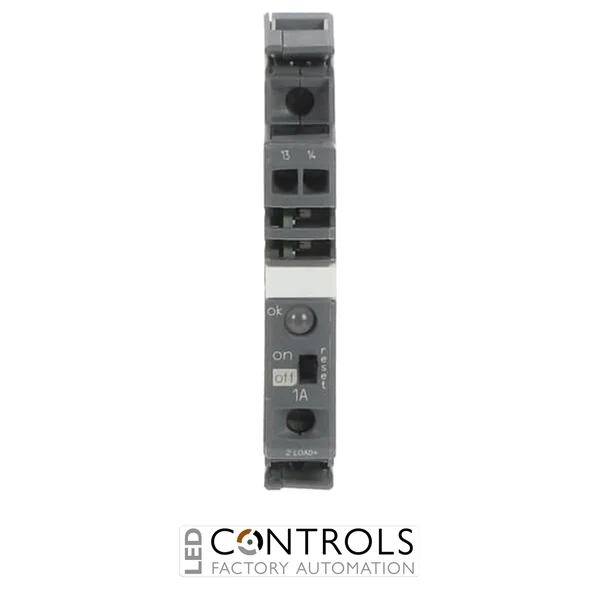

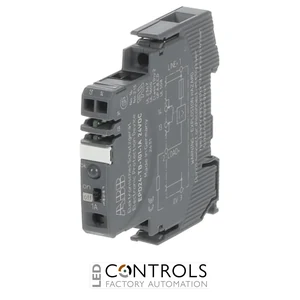

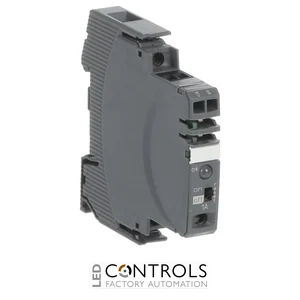

What is the ABB 2CDE601101R2001?
The ABB 2CDE601101R2001 is an EPD24-TB-101-1A electronic protection device for selective overcurrent protection of 24 V DC load circuits.
What is the rated current of the ABB 2CDE601101R2001?
The ABB 2CDE601101R2001 has a rated current of 1 A and is designed for 24 V DC load circuits.
What voltage does the ABB EPD24-TB-101-1A operate at?
The EPD24-TB-101-1A has a rated voltage of 24 V DC and an operational voltage range of 18–32 V DC.
How does the ABB 2CDE601101R2001 provide protection?
The device uses active electronic current limitation for short-circuit protection and overload disconnection from approximately 1.1 × In, selectively switching off the affected load circuit.
How is the ABB 2CDE601101R2001 mounted?
The ABB 2CDE601101R2001 is a compact DIN-rail-mounted module measuring 12.5 mm wide, 80 mm high and 83 mm deep.
Trusted ABB EPD24 Protection for Industrial Applications
The ABB 2CDE601101R2001 combines selective 24 V DC overcurrent protection, active current limitation, auxiliary signalling and compact DIN-rail mounting in a single-channel 1 A electronic protection device. Its narrow 12.5 mm format supports efficient installation in industrial automation and control panels.
{
"@context": "https://schema.org",
"@type": "Product",
"name": "ABB 2CDE601101R2001 EPD24-TB-101-1A Electronic Protection Device",
"sku": "2CDE601101R2001",
"mpn": "2CDE601101R2001",
"brand": {
"@type": "Brand",
"name": "ABB"
},
"gtin13": "4016779829984",
"description": "The ABB 2CDE601101R2001 EPD24-TB-101-1A is a single-channel electronic protection device providing selective 1 A overcurrent protection for 24 V DC load circuits with active current limitation and DIN-rail mounting.",
"additionalProperty": [
{
"@type": "PropertyValue",
"name": "Product Type",
"value": "Electronic Protection Device"
},
{
"@type": "PropertyValue",
"name": "Series",
"value": "EPD24"
},
{
"@type": "PropertyValue",
"name": "Rated Voltage",
"value": "24 V DC"
},
{
"@type": "PropertyValue",
"name": "Operational Voltage",
"value": "18–32 V DC"
},
{
"@type": "PropertyValue",
"name": "Rated Current",
"value": "1 A"
},
{
"@type": "PropertyValue",
"name": "Channels",
"value": "1"
},
{
"@type": "PropertyValue",
"name": "Maximum Capacitive Load",
"value": "20,000 µF"
},
{
"@type": "PropertyValue",
"name": "Mounting",
"value": "DIN rail"
}
]
}
{
