Frequently Asked Questions
What is the ABB 2CDE601101R2006?

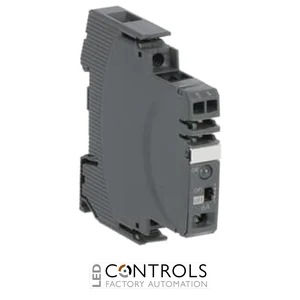

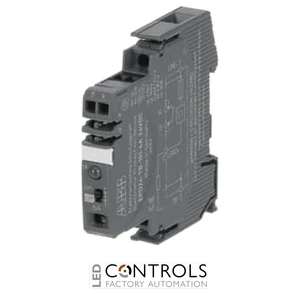

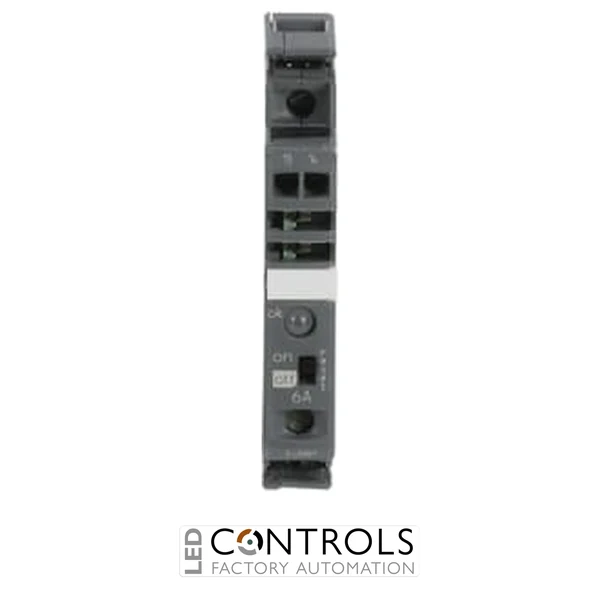

The ABB 2CDE601101R2006 is an EPD24-TB-101-6A electronic protection device for selectively protecting 24 V DC load circuits.
What is the rated current of the EPD24-TB-101-6A?
The EPD24-TB-101-6A has a rated current of 6 A.
What voltage does the ABB EPD24-TB-101-6A operate at?
The device is designed for 24 V DC systems and has an operational voltage range of 18–32 V DC.
How does the ABB EPD24-TB-101-6A protect a load circuit?
It uses active electronic current limitation to detect excessive current and selectively disconnect the affected 24 V DC load circuit, with deactivation occurring from approximately 1.1 times the selected rated current.
How is the ABB 2CDE601101R2006 mounted?
The ABB 2CDE601101R2006 is designed for DIN-rail mounting and has a compact module width of 12.5 mm.
Trusted ABB EPD24 Electronic Protection Technology
The ABB EPD24-TB-101-6A combines compact DIN-rail installation with selective electronic protection, making it suitable for dependable 24 V DC distribution in industrial automation, machinery and control-panel applications.
{
