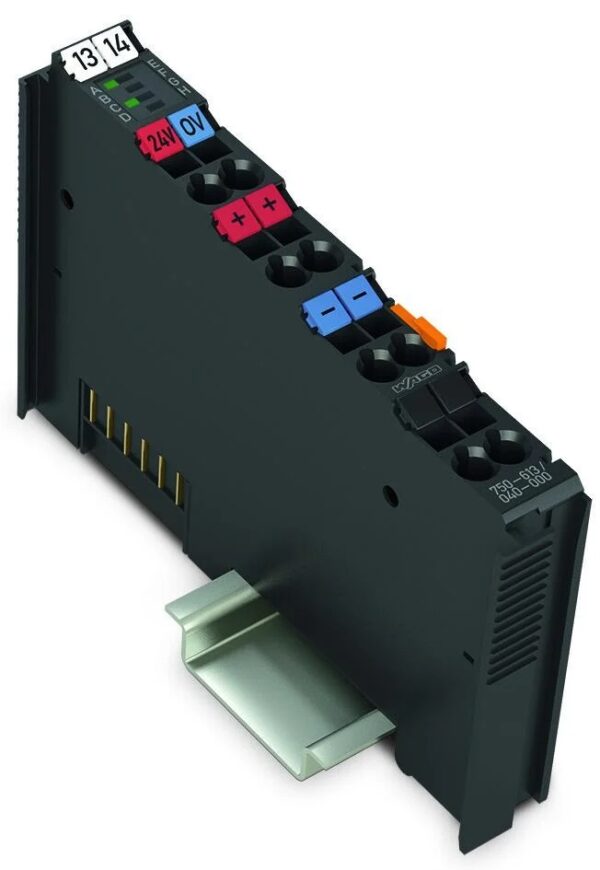

WAGO 750-613/040-000 is a 24 V DC XTR system power supply module providing an additional 2 A of internal system current and field-side power for WAGO I/O System 750 XTR industrial automation nodes.
£179.31
The WAGO 750-613/040-000 is a rugged 24 V DC system power supply module designed for the WAGO I/O System 750 XTR. It increases the available internal system supply current by 2 A, enabling fieldbus nodes with higher current requirements to support additional I/O modules while maintaining dependable system power.
As part of the WAGO I/O System 750 XTR, this Extreme version is engineered for operation in demanding industrial environments. Its XTR construction provides an extended operating temperature range together with increased resistance to impulse voltages, electromagnetic interference, vibration and shock, making it suitable for applications where conventional automation equipment may face challenging conditions.
The 750-613/040-000 operates from a 24 V DC system supply and provides up to 2 A additional system current. It also supplies 24 V DC field-side power to adjacent modules through the power jumper contacts, which have a current-carrying capacity of up to 10 A.
Large modular I/O stations can require more internal current than a fieldbus coupler or controller can supply on its own. The WAGO 750-613/040-000 provides an additional 2 A of system supply capacity, allowing engineers to extend WAGO I/O System 750 XTR nodes while maintaining a reliable supply to downstream module electronics.
The module also distributes field-side 24 V DC power to adjacent modules through its power jumper contacts. Combined with the enhanced environmental resilience of the XTR platform, this makes the 750-613/040-000 particularly suitable for decentralised automation, infrastructure, energy and industrial installations exposed to severe operating conditions.
| HS Code | 85389091 |
|---|---|
| Country of Manufacture | Germany |
| Manufacturer | WAGO |
| Series | WAGO I/O System 750 XTR |
| Model | 750-613/040-000 |
| Product type | System power supply module |
| Version | XTR / Extreme |
| Signal type | Voltage |
| Signal voltage | 24 V DC |
| System supply voltage | 24 V DC (-25% to +30%) |
| Total system supply current | 2 A |
| Field supply voltage | 24 V DC (-25% to +30%) |
| Typical input current at nominal load | 500 mA |
| Typical efficiency at nominal load | 90% |
| Power jumper contact current capacity | 10 A |
| Outgoing power jumper contacts | 2 |
| Rated surge voltage | 1 kV |
| Indicators | Green LEDs for system and power jumper contact operating voltage |
| Connection technology | CAGE CLAMP® |
| Conductor cross-section | 0.25–2.5 mm² |
| Conductor size | AWG 24–14 |
| Strip length | 8–9 mm |
| Protection rating | IP20 |
| Mounting type | DIN rail mounting |
| Operating temperature | -40 °C to +70 °C |
| Dimensions (W × H × D) | 12 × 64 × 100 mm |
| Weight | approx. 55 g |
| Colour | Black |
The WAGO 750-613/040-000 provides additional system power within a WAGO I/O System 750 XTR node, increasing the available internal system supply current by 2 A while also supplying field-side power to adjacent modules.
The module operates from a nominal 24 V DC supply, with a specified system supply range of 24 V DC -25% to +30% subject to the applicable temperature derating requirements.
The 750-613/040-000 increases the available internal system supply capacity by 2 A.
The XTR Extreme version is engineered for demanding environments, offering an extended -40 °C to +70 °C operating temperature range together with enhanced resistance to impulse voltages, electromagnetic interference, vibration and shock.
Yes. The module supplies 24 V DC field-side power to adjacent modules through its power jumper contacts, which have a current-carrying capacity of up to 10 A.
WAGO I/O System 750 XTR components provide scalable modular automation for demanding applications, combining reliable system and field power distribution with enhanced resistance to temperature extremes, electrical interference, vibration and shock.
