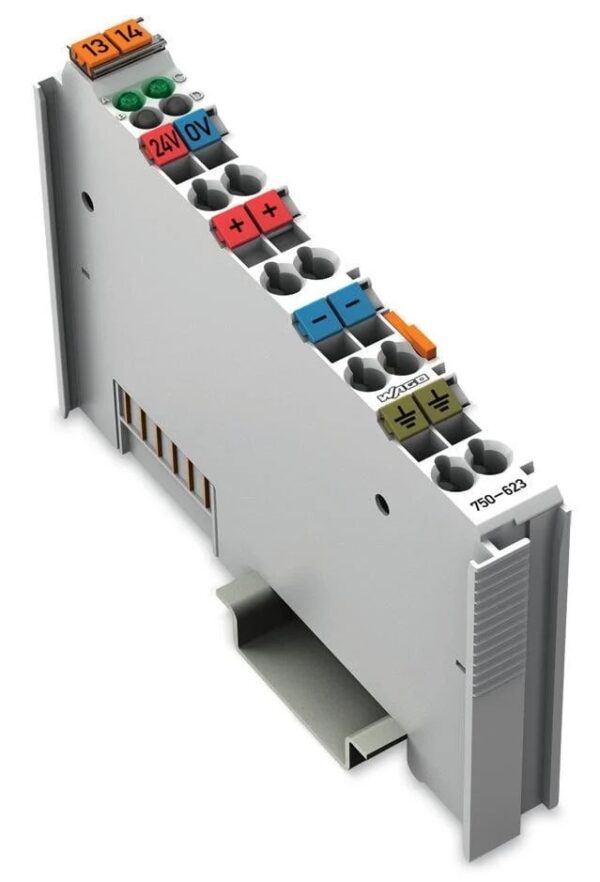

WAGO 750-623 is a DC/DC power supply module that converts a 24 V DC field supply into selectable 5, 8, 10, 12 or 15 V DC outputs for WAGO I/O System 750/753 industrial automation applications.
£111.56
The WAGO 750-623 is a compact DC/DC power supply module designed for the WAGO I/O System 750/753. It converts a 24 V DC field supply into a selectable lower DC voltage, allowing additional voltage levels to be generated directly within a modular industrial I/O station for sensors, interface electronics and auxiliary equipment.
The module provides selectable 5, 8, 10, 12 or 15 V DC output, with the required voltage configured using an integrated DIP switch. The selected output is available through the module's CAGE CLAMP® terminals and is also distributed to compatible downstream modules through the power jumper contacts, reducing the need for separate auxiliary power supplies and additional wiring.
With an output current of 0.5 A, increasing to 1 A at 5 V DC, the WAGO 750-623 provides a flexible solution for supplying lower-voltage devices from a standard 24 V DC industrial control supply. Status LEDs indicate the operating state of the input and output voltages, while its compact DIN rail format simplifies installation within control cabinets.
Industrial automation systems frequently require voltage levels below the standard 24 V DC control supply for sensors, interfaces and specialist electronic equipment. The WAGO 750-623 generates these auxiliary voltages directly within the I/O station, helping reduce the requirement for separate power supplies and simplifying control cabinet wiring.
Once the required 5, 8, 10, 12 or 15 V DC output has been selected, the voltage is available at the CAGE CLAMP® connections and through the power jumper contacts for compatible downstream modules. This allows engineers to create dedicated lower-voltage potential groups within a WAGO I/O System 750/753 node while retaining a compact modular architecture.
| HS Code | 85389091 |
|---|---|
| Country of Manufacture | Germany |
| Manufacturer | WAGO |
| Series | WAGO I/O System 750/753 |
| Model | 750-623 |
| Product type | DC/DC power supply module |
| Signal type | Voltage |
| Input voltage | 24 V DC |
| Field supply voltage | 24 V DC (-15% to +20%) |
| Selectable output voltage | 5 / 8 / 10 / 12 / 15 V DC |
| Output current | 0.5 A |
| Output current at 5 V DC | 1 A |
| System supply voltage | 5 V DC via data contacts |
| Total system supply current | 500 mA |
| Outgoing power jumper contacts | 3 |
| Electrical isolation | No isolation between input and output |
| Voltage selection | DIP switch |
| Indicators | Green LEDs for input and output voltage status |
| Connection technology | CAGE CLAMP® |
| Conductor cross-section | 0.08–2.5 mm² |
| Conductor size | AWG 28–14 |
| Mounting type | DIN 35 rail mounting |
| Protection rating | IP20 |
| Operating temperature | 0–55 °C |
| Width | 12 mm |
| Colour | Light grey |
The WAGO 750-623 converts a 24 V DC input into selectable 5, 8, 10, 12 or 15 V DC outputs for auxiliary equipment and compatible downstream modules in industrial automation systems.
The module can be configured to provide 5, 8, 10, 12 or 15 V DC.
The required output voltage is selected using a DIP switch located on the side of the module.
The module provides up to 0.5 A output current at the 8, 10, 12 and 15 V DC settings, increasing to 1 A at 5 V DC.
No. The input and output voltages are not electrically isolated.
WAGO I/O System 750/753 modules provide flexible and scalable solutions for distributed industrial automation, allowing engineers to integrate I/O, power distribution and auxiliary voltage requirements within a compact modular control architecture.
