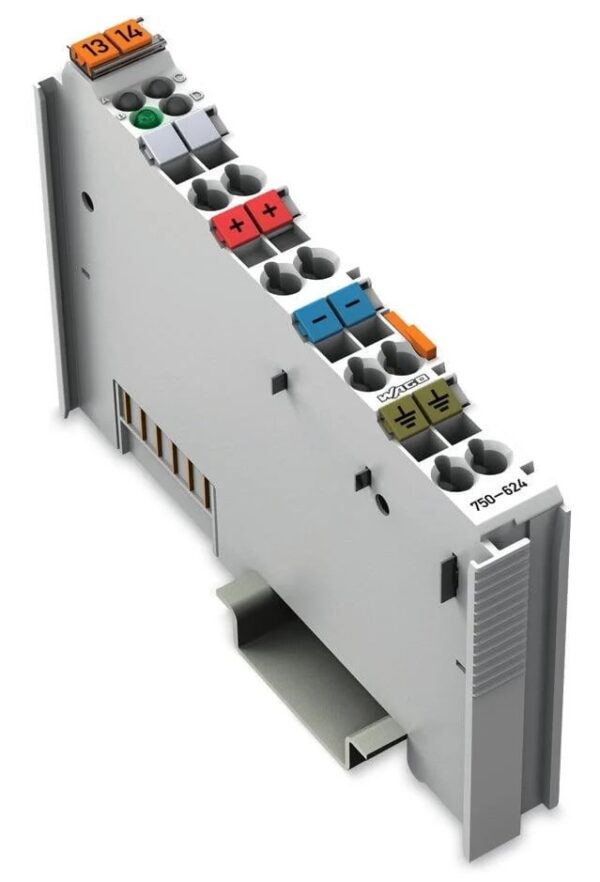

WAGO 750-624 is a 24 V DC field-side power supply filter with transient surge protection and 10 A power jumper contact capacity for WAGO I/O System 750/753 industrial automation applications.
£65.85
The WAGO 750-624 is a compact 24 V DC field-side power supply filter with surge protection designed for the WAGO I/O System 750/753. It protects the field supply against transient overvoltages and high-energy disturbances on DC supply lines, helping maintain reliable operation of sensitive industrial automation equipment.
Designed for demanding automation installations, the 750-624 helps suppress disturbances caused by switching overvoltages and inductive loads. Its integrated transient protection makes it particularly useful where clean and dependable 24 V DC field power is required, including applications using safety-related I/O and installations subject to stringent power quality requirements.
The module operates with a 24 V DC field supply with a tolerance of -25% to +30% and provides a 10 A current-carrying capacity through its power jumper contacts. Three incoming and three outgoing power jumper contacts allow the filtered field supply to be distributed through compatible downstream modules within the I/O station.
Industrial DC supply networks can experience transient overvoltages generated by switching operations and inductive loads. These disturbances can affect sensitive sensors, actuators and I/O electronics. The WAGO 750-624 filters the 24 V DC field supply and provides transient protection to help prevent high-energy disturbances from reaching connected field circuits.
The module integrates directly into the WAGO I/O System 750/753 and distributes the protected field supply through its power jumper contacts. This makes it suitable for automation architectures where dependable field power, surge suppression and compact modular installation are important requirements.
| HS Code | 85389091 |
|---|---|
| Country of Manufacture | Germany |
| Manufacturer | WAGO |
| Series | WAGO I/O System 750/753 |
| Model | 750-624 |
| Product type | Field-side power supply filter with surge protection |
| Signal type | Voltage |
| Signal voltage | 24 V DC |
| Field supply voltage | 24 V DC (-25% to +30%) |
| System supply voltage | 5 V DC via data contacts |
| Current-carrying capacity of power jumper contacts | 10 A |
| Incoming power jumper contacts | 3 |
| Outgoing power jumper contacts | 3 |
| Protection function | Field supply transient / surge protection |
| Indicator | Green LED for power jumper contact operating voltage |
| Connection technology | CAGE CLAMP® |
| Field supply connections | 6 × CAGE CLAMP® |
| Conductor cross-section | 0.08–2.5 mm² |
| Conductor size | AWG 28–14 |
| Strip length | 8–9 mm |
| Mounting type | DIN rail mounting |
| Width | 12 mm |
| Height | 100 mm |
| Depth | 69.8 mm |
| Depth from upper edge of DIN rail | 62.6 mm |
| Colour | Light grey |
The WAGO 750-624 filters a 24 V DC field-side power supply and provides transient surge protection to help protect industrial automation equipment from high-energy disturbances on DC supply lines.
The module is designed for a nominal 24 V DC field supply with a specified tolerance of -25% to +30%.
The module's power jumper contacts have a current-carrying capacity of up to 10 A.
The module protects the field supply against transient overvoltages and high-energy disturbances, including switching overvoltages that can be generated by inductive loads.
The module is installed on a DIN rail as part of a WAGO I/O System 750/753 station and distributes the protected 24 V DC field supply through its integrated power jumper contacts.
WAGO I/O System 750/753 filter modules help protect industrial field supplies against electrical disturbances, supporting dependable operation in automation, safety-related, marine and infrastructure applications.
