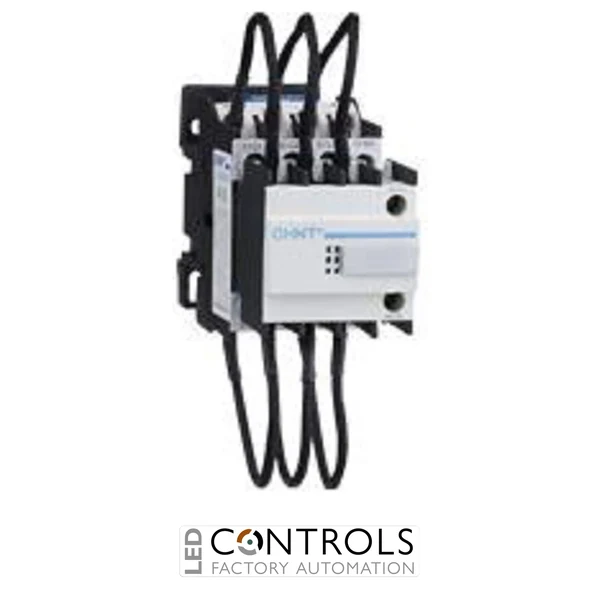

CHINT CJ19-25-11-230V capacitor switching contactor with 230 V AC coil for reactive power compensation and power factor correction systems.
£72.62
The Chint CJ19-25-11-230V is a specialised power factor correction contactor designed for reliable switching and control of capacitor banks in industrial and commercial electrical systems. As part of the Chint CJ19 capacitor switching contactor series, it is engineered specifically for AC-6b capacitor switching applications, helping improve the reliability and efficiency of reactive power compensation systems.
Unlike standard contactors, the CJ19 series incorporates a pre-charge resistor circuit that helps reduce capacitor inrush current during energisation. This design helps protect capacitor banks, minimise contact wear and extend the service life of electrical compensation equipment. The series is manufactured to IEC/EN 60947-4-1 standards.
With a rated operational current of 17 A, a 230 V AC coil supply and a three-pole configuration with 1 normally open and 1 normally closed auxiliary contact, the Chint CJ19-25-11-230V is suitable for automatic capacitor banks, power factor correction panels and industrial low-voltage distribution systems.
Power factor correction contactors such as the Chint CJ19-25-11-230V are specifically designed to safely connect and disconnect capacitor banks used in reactive power compensation systems. Their dedicated capacitor switching design helps minimise electrical stress caused by high charging currents during capacitor energisation.
By supporting efficient reactive power management, capacitor switching systems can improve electrical network performance, reduce unnecessary reactive power demand and provide stable operation for industrial power distribution installations.
| Current | 17 A |
|---|---|
| Voltage | 230 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | CJ19 Capacitor Switching Contactors |
| Product type | Capacitor switching contactor |
| Frame size | 25 AF |
| Rated operational current | 17 A AC-6b |
| Rated thermal current | 25 A |
| Utilisation category | AC-6b |
| Rated operational voltage | Up to 690 V AC |
| Control coil voltage | 230 V AC 50/60 Hz |
| Pole configuration | 3-pole |
| Main contacts | 3NO |
| Auxiliary contacts | 1NO + 1NC |
| Controlled capacitor capacity | approx. 12.5 kvar at 380/400 V |
| Rated insulation voltage | 690 V |
| Impulse withstand voltage | 6 kV |
| Mounting type | DIN rail or screw mounting |
| Protection rating | IP20 front protection |
| Operating temperature | -5 °C to +40 °C |
| Compliance standard | IEC/EN 60947-4-1 |
| Approximate dimensions | 124 × 47 × 76 mm |
The Chint CJ19-25-11-230V is a capacitor switching contactor used for controlling capacitor banks in power factor correction and reactive power compensation systems.
The CJ19-25-11-230V has a 17 A rated operational current with a 25 A thermal current rating.
The contactor uses a 230 V AC 50/60 Hz coil.
The integrated resistor circuit helps suppress capacitor inrush current, protecting the contactor and capacitor bank during switching operations.
The CJ19-25-11-230V is typically installed inside power factor correction cabinets, electrical control panels and industrial distribution systems.
Chint CJ19 capacitor switching contactors are widely used in industrial and commercial power factor correction systems to provide reliable capacitor control, reduced switching stress and efficient reactive power management.
