£86.14

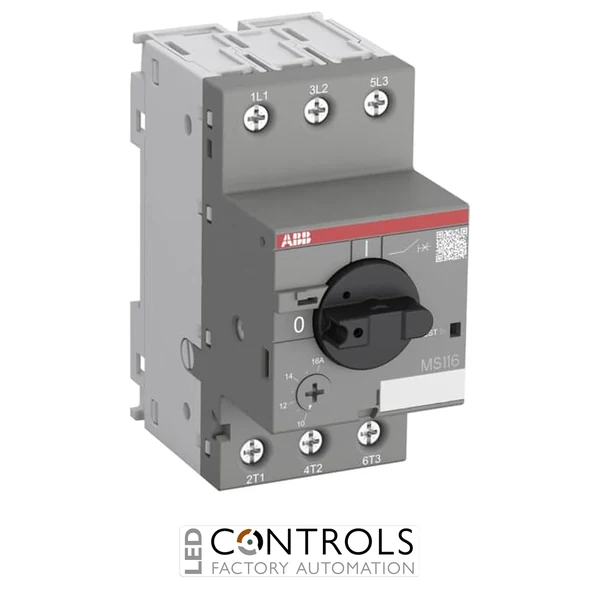

The ABB 1SAM250000R1009 is a compact and reliable thermal-magnetic manual motor starter designed to provide efficient motor switching and protection in industrial automation, machinery and electrical control systems. As part of ABB’s MS116 motor protection circuit breaker series, it combines manual motor control with protection against overload, short circuit and phase failure conditions.
The MS116-6.3 features a three-pole design with an adjustable current range of 4.0–6.3 A, making it suitable for protecting small three-phase and single-phase motors. Its compact 45 mm width design enables space-saving installation in control panels and motor starter assemblies.
With a rated operational voltage up to 690 V AC, a short-circuit breaking capacity up to 50 kA at 400 V AC, and integrated disconnect functionality, the ABB 1SAM250000R1009 provides dependable motor protection without requiring additional fuses.
Manual motor starters provide essential protection for motors by combining switching capability with integrated thermal and magnetic protection. The ABB MS116-6.3 helps prevent damage caused by overload currents, short circuits and phase loss while allowing operators to manually isolate motor circuits.
The MS116 series is designed for industrial automation systems where compact dimensions, reliable protection and easy integration are required. Its accessory compatibility allows engineers to create complete motor starter solutions using ABB contactors and control components.
| Current | 6.3 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | MS116 Motor Protection Circuit Breaker |
| Model | MS116-6.3 |
| Product type | Manual motor starter / motor protection circuit breaker |
| Part number | 1SAM250000R1009 |
| Number of poles | 3 poles |
| Rated operational current | 6.3 A |
| Current adjustment range | 4.0–6.3 A |
| Rated operational voltage | Up to 690 V AC |
| Motor power rating | Up to 2.2 kW at 400/415 V AC |
| Short-circuit breaking capacity | 50 kA at 400 V AC |
| Trip class | 10A |
| Protection functions | Overload, short circuit and phase failure protection |
| Mounting type | DIN rail / mounting plate |
| Connection type | Screw terminals |
| Protection rating | IP20 |
| Dimensions (H × W × D) | approx. 90 × 45 × 85.6 mm |
| Weight | approx. 0.265 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB 1SAM250000R1009 is a manual motor starter used for switching motors manually and protecting them against overload, short circuit and phase failure conditions.
The ABB MS116-6.3 supports an adjustable current range of 4.0 to 6.3 A.
The ABB 1SAM250000R1009 features a three-pole configuration for motor protection applications.
The MS116-6.3 supports operating voltages up to 690 V AC.
Yes, ABB MS116 devices support accessories including auxiliary contacts, signalling contacts, undervoltage releases and shunt trips.
ABB MS116 manual motor starters are trusted by machine builders and electrical engineers worldwide for reliable motor protection, compact installation and dependable industrial performance.
