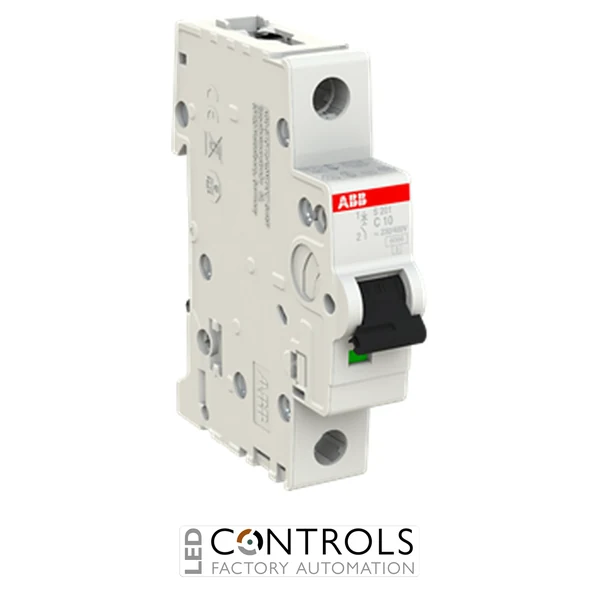

ABB S201-C10 single-pole miniature circuit breaker with a 10 A rated current, Type C tripping characteristic and 6 kA breaking capacity for residential, commercial and industrial electrical installations.
£20.51
The ABB S201-C10 is a high-quality single-pole miniature circuit breaker (MCB) from the ABB System pro M compact S200 range, engineered to provide dependable protection against overloads and short circuits in residential, commercial and industrial electrical installations. Its thermal-magnetic tripping mechanism ensures fast, reliable circuit protection whilst maintaining long service life.
With a 10 A rated current and a Type C tripping characteristic, the S201-C10 is ideal for circuits supplying equipment with moderate inrush currents, including motors, transformers, HVAC equipment and inductive loads. The compact DIN rail mounted design enables quick installation and easy integration into modern distribution boards.
The circuit breaker offers a 6 kA rated short-circuit breaking capacity in accordance with IEC/EN 60898-1 and complies with IEC/EN 60947-2, making it suitable for a wide variety of low-voltage electrical installations. As part of the ABB System pro M compact range, it is compatible with auxiliary contacts and accessories for enhanced functionality.
The ABB S201-C10 combines thermal overload protection with electromagnetic short-circuit protection to safeguard electrical systems against common fault conditions. The Type C characteristic makes it particularly suitable for circuits where moderate inrush currents occur during equipment start-up, helping to minimise nuisance tripping whilst maintaining effective protection.
As part of the ABB System pro M compact family, the S201-C10 can be combined with a wide range of accessories including auxiliary contacts, signalling contacts and busbars, providing flexibility for installers and panel builders.
| HS Code | 85362010 |
|---|---|
| Manufacturer | ABB |
| Series | System pro M compact S200 |
| Model | S201-C10 |
| Manufacturer part number | 2CDS251001R0104 |
| EAN | 4016779464208 |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 10 A |
| Tripping characteristic | C |
| Number of poles | 1 |
| Rated operating voltage | 230/400 V AC |
| Frequency | 50 / 60 Hz |
| Rated breaking capacity | 6 kA |
| Rated insulation voltage | 440 V |
| Rated impulse withstand voltage | 4 kV |
| Protection rating | IP20 (IP40 when installed in an enclosure) |
| Mounting type | 35 mm DIN rail |
| Module width | 1 module (17.5 mm) |
| Dimensions (H × W × D) | 88 × 17.5 × 69 mm |
| Weight | Approx. 0.125 kg |
The ABB S201-C10 protects electrical circuits against overloads and short circuits and is commonly used for commercial, industrial and residential electrical installations.
The ABB S201-C10 has a rated current of 10 A.
Type C circuit breakers are designed for circuits with moderate inrush currents, making them suitable for motors, transformers and inductive electrical loads.
The circuit breaker has a rated short-circuit breaking capacity of 6 kA according to IEC/EN 60898-1.
It is designed for installation onto a standard 35 mm DIN rail within compatible electrical distribution boards and control panels.
ABB System pro M compact miniature circuit breakers are trusted worldwide by electricians, panel builders and industrial engineers for their reliable protection, consistent performance and high manufacturing quality.
