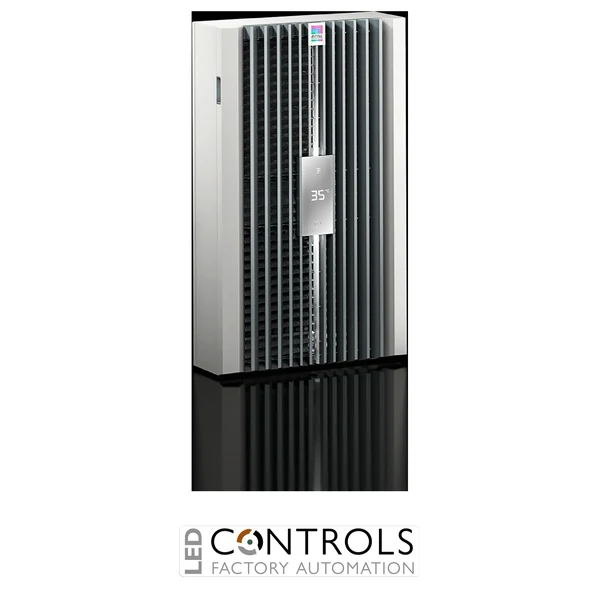

Rittal Blue e+ S SK3178.801 is a compact 0.3 kW wall-mounted enclosure cooling unit with 110–240 V AC multi-voltage operation and R-513A refrigerant, supplied without an integrated condensate evaporator.
£1,053.56
The Rittal Blue e+ S SK3178.801 is a compact and highly energy-efficient wall-mounted enclosure cooling unit designed to provide reliable thermal management for industrial electrical and electronic enclosures. Part of the advanced Rittal Blue e+ S series, it combines proven Blue e+ technology with multi-voltage capability, intelligent monitoring options and environmentally considerate R-513A refrigerant.
The SK3178.801 provides a total cooling output of 0.3 kW at L35/L35, helping maintain suitable operating temperatures for PLCs, drives, power supplies and other heat-sensitive components. Separate internal and external air circuits enable efficient heat removal without introducing ambient air directly into the enclosure, while the integrated e+ controller provides precise temperature regulation.
Operating from a flexible 110–240 V AC single-phase, 50/60 Hz supply, the SK3178.801 is suitable for machinery intended for international markets. This version is supplied without an integrated condensate evaporator and features a compact 300 × 570 × 159 mm wall-mounted design for installations where enclosure space and installation depth are important considerations.
Industrial enclosure cooling units such as the Rittal Blue e+ S SK3178.801 maintain controlled internal temperatures by transferring heat away from sensitive electrical and electronic components. The separated internal and external air circuits help protect the enclosure environment while allowing heat generated by automation equipment to be dissipated effectively.
Blue e+ technology combines an active refrigerant circuit with heat pipe operation to provide efficient cooling across changing operating conditions. Together with intelligent e+ temperature control, multi-voltage compatibility and optional IoT connectivity, the SK3178.801 provides a flexible thermal management solution for modern machinery and industrial automation systems.
Tick the specs you need, then view products that match.
| Device Type | Wall / door-mounted cooling unit | |
|---|---|---|
| Refrigerant Type | R513A | |
| Coil / Supply Voltage | 110–240 V AC, 1-phase | |
| IP Rating | IP55 | |
| Voltage | 110-240 V AC | |
| Cooling Output (W) | 300 W | |
| Manufacturer | Rittal | |
| Series | Blue e+ S | |
| Model | SK3178.801 | |
| Product type | Wall-mounted enclosure cooling unit | |
| Device type | Air/air | |
| Design | Wall-mounted | |
| Total cooling output L35/L35 | 0.3 kW at 50/60 Hz | |
| Total cooling output L35/L50 | 0.22 kW at 50/60 Hz | |
| Rated operating voltage | 110–240 V AC | |
| Input phases | Single phase | |
| Frequency | 50 / 60 Hz | |
| Rated power input | 0.22 kW | |
| Power consumption L35/L35 | 0.15 kW at 50/60 Hz | |
| Power consumption L35/L50 | 0.18 kW at 50/60 Hz | |
| Energy efficiency ratio L35/L35 | 2.01 at 50/60 Hz | |
| External circuit airflow | 366.6 m³/h | |
| Internal circuit airflow | 366.6 m³/h | |
| Refrigerant | R-513A | |
| Refrigerant quantity | 0.13 kg | |
| Refrigerant GWP | 631 | |
| CO₂ equivalent | 0.08 t | |
| Temperature control | e+ controller | |
| Factory temperature setting | +35 °C | |
| Temperature setting range | 20–50 °C | |
| Operating temperature range | -20–60 °C | |
| Active refrigerant circuit operating range | 3–60 °C | |
| Heat pipe operating range | -20–45 °C | |
| Storage temperature range | -40–70 °C | |
| NEMA protection | UL Type 1 / UL Type 12 | |
| Maximum permissible operating pressure | 32 bar | |
| Housing colour | RAL 7035 | |
| Louvred grille colour | RAL 7012 | |
| Dimensions (W × H × D) | 300 × 570 × 159 mm | |
| Required mounting cut-out | 280 × 550 mm | |
| Net weight | 12.2 kg | |
| Condensate evaporator | Not included |
The SK3178.801 is a wall-mounted cooling unit designed to maintain controlled temperatures inside industrial electrical and electronic enclosures, helping protect sensitive equipment against excessive heat.
The unit provides a total cooling output of 0.3 kW at L35/L35 and 0.22 kW at L35/L50.
The Blue e+ S SK3178.801 supports a wide 110–240 V AC single-phase, 50/60 Hz supply, making it suitable for machinery and installations across different regions.
The cooling unit uses R-513A refrigerant with a charge quantity of 0.13 kg and a Global Warming Potential of 631.
No. The Rittal SK3178.801 is supplied without an integrated condensate evaporator, distinguishing it from versions of the Blue e+ S cooling unit equipped with active condensate evaporation.
Rittal Blue e+ climate control solutions are widely used by machine builders, panel builders and automation engineers seeking energy-efficient, intelligent and dependable thermal management for modern industrial enclosures.
