ABB electronic motor starters are ideal for machinery that you need to start, stop and reverse on the regular. LED Controls is a UK-based Official ABB distributor, ABB Value Provider and trusted supplier of the ABB HF range, shipping electronic motor starters to machine builders, panel builders and maintenance teams the world over.
Why Choose ABB HF Electronic Motor Starters?

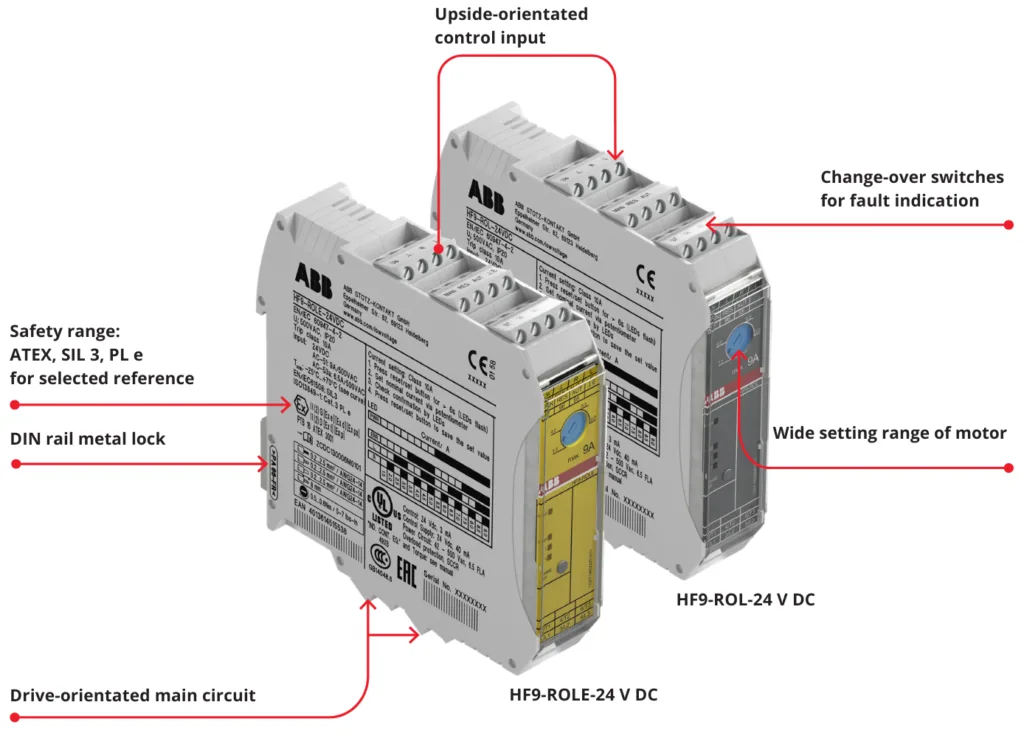

ABB electronic motor starters are a compact, durable hybrid switching solution with a choice of integrated control and protection functions. For demanding motor switching applications, they can help keep your panel layout simple and reduce wear and tear on vital components.
Repeated starting, stopping and reversing puts pressure on your components and can cause electrical arcing in conventional electromechanical contactors. Over time, this can wear your gear down and cause stoppages, fire and heat damage and even injury.
ABB HF electronic compact starters' hybrid technology means semiconductors handle switching, while mechanical bypass relays carry the current during normal operation. This prevents arcing at the relay contacts and combines electronic switching with the low losses of a mechanical connection.
With an electrical life of up to 30 million operating cycles, the HF range is top dog if you're running frequent, repetitive switching duties that might stress out a traditional starter.
Save Control Panel Space and Wiring Time
The ABB HF range is just 22.5 mm wide, helping you maximise your space and minimise your install time.
- Up to 90% space savings compared with conventional arrangements.
- Up to 75% less time spent on wiring and installation.
- Fewer separate connections, helping reduce the risk of wiring errors.
Depending on the model, direct-on-line starting, reversing, overload protection and emergency switching-off functions are integrated into one device.
Shop ABB Electronic Motor Starters at LED Controls
| Model | Motor Current Range | Maximum Motor Power | Starter Type | Overload Protection | Emergency Stop |
|---|---|---|---|---|---|
| ABB HF0.6-DOL-24VDC | 0.075 to 0.6 A | 0.18 kW | Direct on line | Yes | No |
| ABB HF2.4-DOL-24VDC | 0.18 to 2.4 A | 0.75 kW | Direct on line | Yes | No |
| ABB HF9-DOL-24VDC | 1.5 to 6.5 A | 3 kW | Direct on line | Yes | No |
| ABB HF0.6-DOLE-24VDC | 0.075 to 0.6 A | 0.18 kW | Direct on line | Yes | Yes |
| ABB HF2.4-DOLE-24VDC | 0.18 to 2.4 A | 0.75 kW | Direct on line | Yes | Yes |
| ABB HF9-DOLE-24VDC | 1.5 to 6.5 A | 3 kW | Direct on line | Yes | Yes |
| ABB HF0.6-ROL-24VDC | 0.075 to 0.6 A | 0.18 kW | Reversing | Yes | No |
| ABB HF2.4-ROL-24VDC | 0.18 to 2.4 A | 0.75 kW | Reversing | Yes | No |
| ABB HF9-ROL-24VDC | 1.5 to 6.5 A | 3 kW | Reversing | Yes | No |
| ABB HF0.6-ROLE-24VDC | 0.075 to 0.6 A | 0.18 kW | Reversing | Yes | Yes |
| ABB HF2.4-ROLE-24VDC | 0.18 to 2.4 A | 0.75 kW | Reversing | Yes | Yes |
| ABB HF9-ROLE-24VDC | 1.5 to 6.5 A | 3 kW | Reversing | Yes | Yes |
Choosing the right ABB HF Motor Starter means matching its functions to your motor and control requirements. The HF range includes direct-on-line and reversing options, with safety variants available where emergency stop functionality is required. Each version offers a different combination of functions. Browse LED Controls' ABB HF electronic starter range at your convenience.
If you need a bit more guidance, get in touch with our highly experienced sales team for help matching the optimal starter to your motor rating and switching duty.
Why Buy ABB Motor Starters from LED Controls?
Buying from an official ABB distribution partner gives you access to product knowledge as well as components. As an ABB Value Provider, LED Controls supports customers with ABB product selection, sourcing and system integration, access to in-house ABB specialists and a broad range of complementary automation and electrical components for a complete panel solution.
Our UK stockholding and sourcing network help customers obtain the equipment they need, with next day delivery available on many items, subject to stock and availability. Whether you are designing a new panel or reviewing an existing motor control arrangement, we can help you explore the appropriate ABB options.
Shop ABB electronic motor starters at LED Controls or call 01706 242050 to chat all things ABB with LED.
